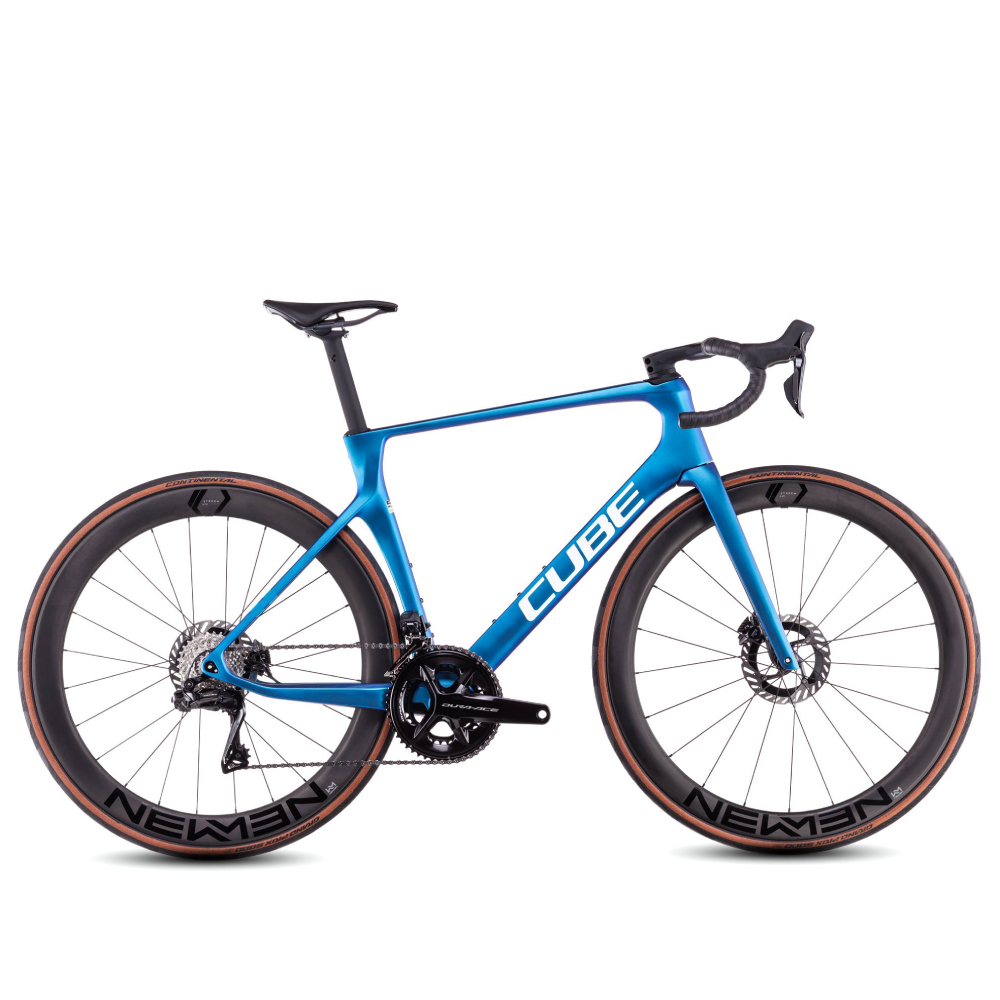

- frame C:62® Advanced Twin Mold Technology, Full Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Storage Box Option, AXH, 12x142mm
- size 50cm, 53cm, 56cm, 58cm, 60cm, 62cm
- Rigid fork CUBE CSL Evo Aero C:62® Technology, 1 1/8″ – 1 1/4″ Tapered, Flat Mount, 12x100mm
- shift/ brake levers Shimano Dura Ace Di2 ST-R9270
- brake system Shimano Dura Ace BR-R9270, Hydr. Disc Brake, Flat Mount (160/160)
- rear derailleur Shimano Dura Ace Di2 RD-R9250-D, 12-Speed
- front derailleur Shimano Dura Ace Di2 FD-R9250-F, Braze-On
- bottom bracket Shimano SM-BB71-41B, 86mm Pressfit
- crankset Shimano Dura Ace FC-R9200, 50x34T
- cassette Shimano Ultegra CS-R8101, 11-30T
- chain Shimano CN-M8100
- headset ACROS, Top Integrated 1 1/2″ w/ Integrated Cable Routing, Bottom Integrated 1 1/4″

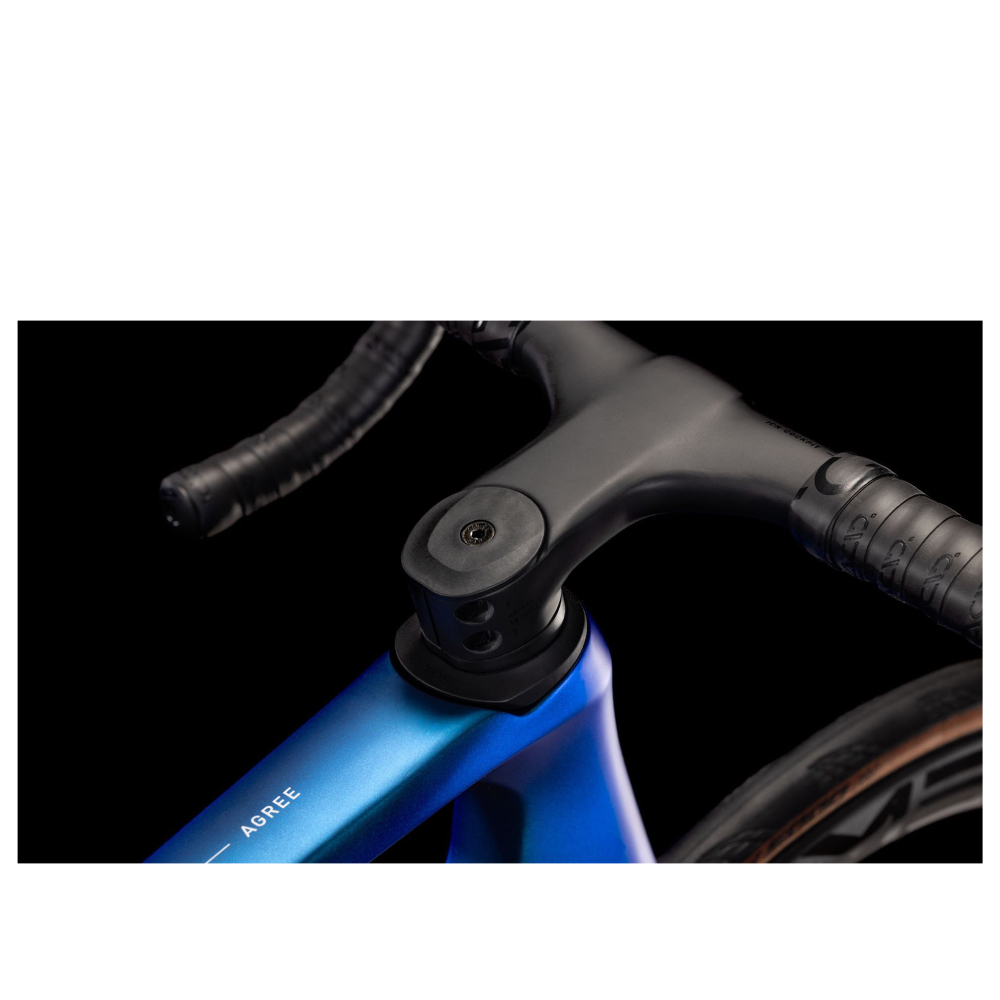

- integrated bar/ stem ICR Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface
- handlebar tape ACID Bartape RD
- wheelset Newmen Streem A.49/54, 21/24 Spokes, 12x100mm/12x142mm, Tubeless Ready
- tyres Conti Grand Prix 5000 Kevlar, 28-622
- saddle ACID Nuance SLT Carbon
- seat post Agree C:62 Aero, Comfort Flex
- extras CUBE Agree C:62 Storage Box, tubolito™ Inner Tubes
- colour nebula´n´white
- weight 7,4 kg
- Structural Weight 115 kg
Geometry
| Slack/Moderate |
50 cm |
53 cm |
56 cm |
58 cm |
60 cm |
62 cm |
| Seat tube |
440 |
470 |
500 |
520 |
540 |
560 |
| Top Tube Horizontal |
522 |
539 |
560 |
575 |
590 |
600 |
| Seat angle |
74.6° |
74° |
73.5° |
73° |
72.5° |
72.5° |
| Head tube angle |
71.5° |
72° |
72.5° |
72.5° |
72.5° |
72.5° |
| Chainstays |
412 |
412 |
412 |
412 |
412 |
412 |
| Head tube |
107 |
127 |
157 |
177 |
195 |
218 |
| Wheelbase |
987 |
994 |
1007 |
1017 |
1027 |
1037 |
| BB-Height to Hub |
73 |
73 |
71 |
71 |
69 |
69 |
| Protrusion height – 80mm |
734 |
760 |
791 |
810 |
829 |
849 |
| Reach |
378 |
383 |
391 |
394 |
399 |
402 |
| Stack |
523 |
543 |
572 |
591 |
606 |
628 |
Ergonomics
|
50 cm |
53 cm |
56 cm |
58 cm |
60 cm |
62 cm |
| Length seat post |
350 |
350 |
350 |
350 |
400 |
400 |
| Angle stem |
-6° |
-6° |
-6° |
-6° |
-6° |
-6° |
| Crank length |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
| Diameter tire maximum |
693 |
693 |
693 |
693 |
693 |
693 |
| Width tire maximum |
30 |
30 |
30 |
30 |
30 |
30 |
| Stem length |
90 |
90 |
100 |
100 |
110 |
120 |
| Handlebar width |
400 |
420 |
420 |
440 |
440 |
440 |
