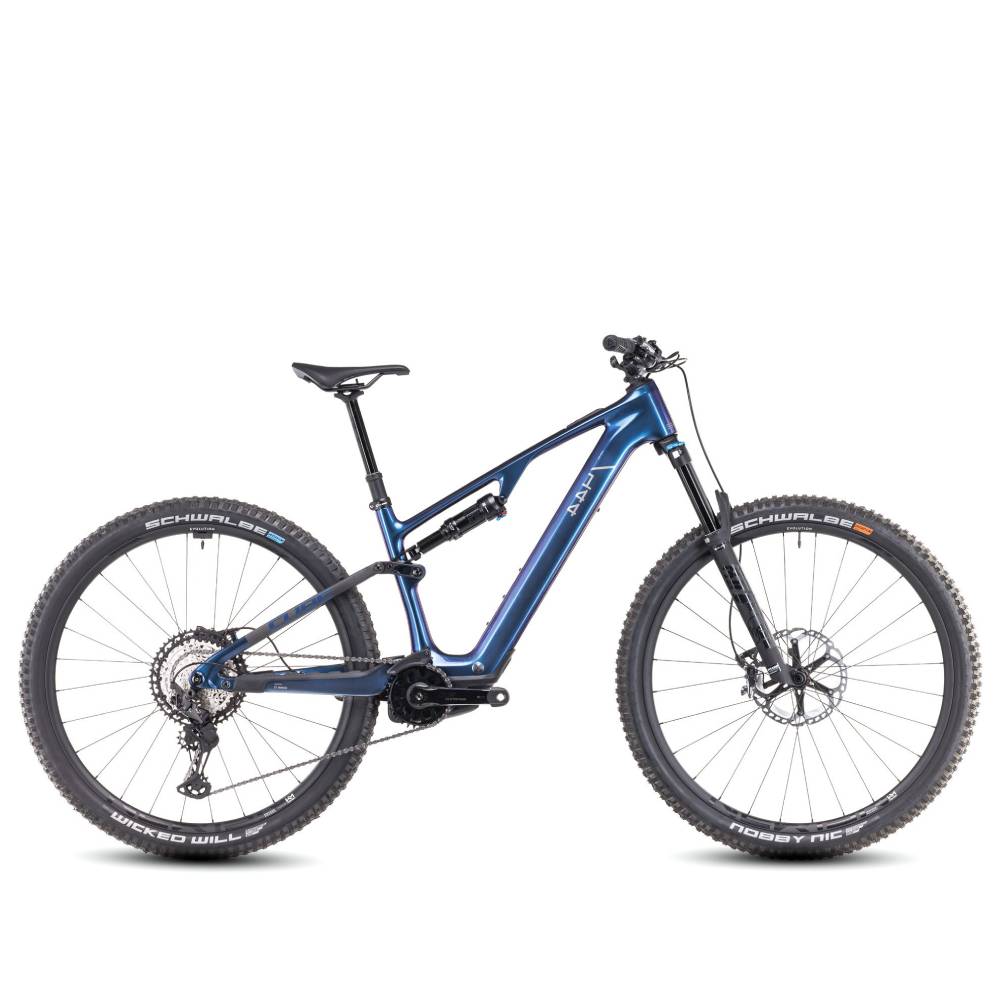

Cube AMS Hybrid ONE44 C:68X SLX 400X 29″ deepcobalt´n´black – 2025
- FRAME: C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
- SIZE: S, M, L, XL
- SUSPENSION FORK: Fox 34 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, 140mm

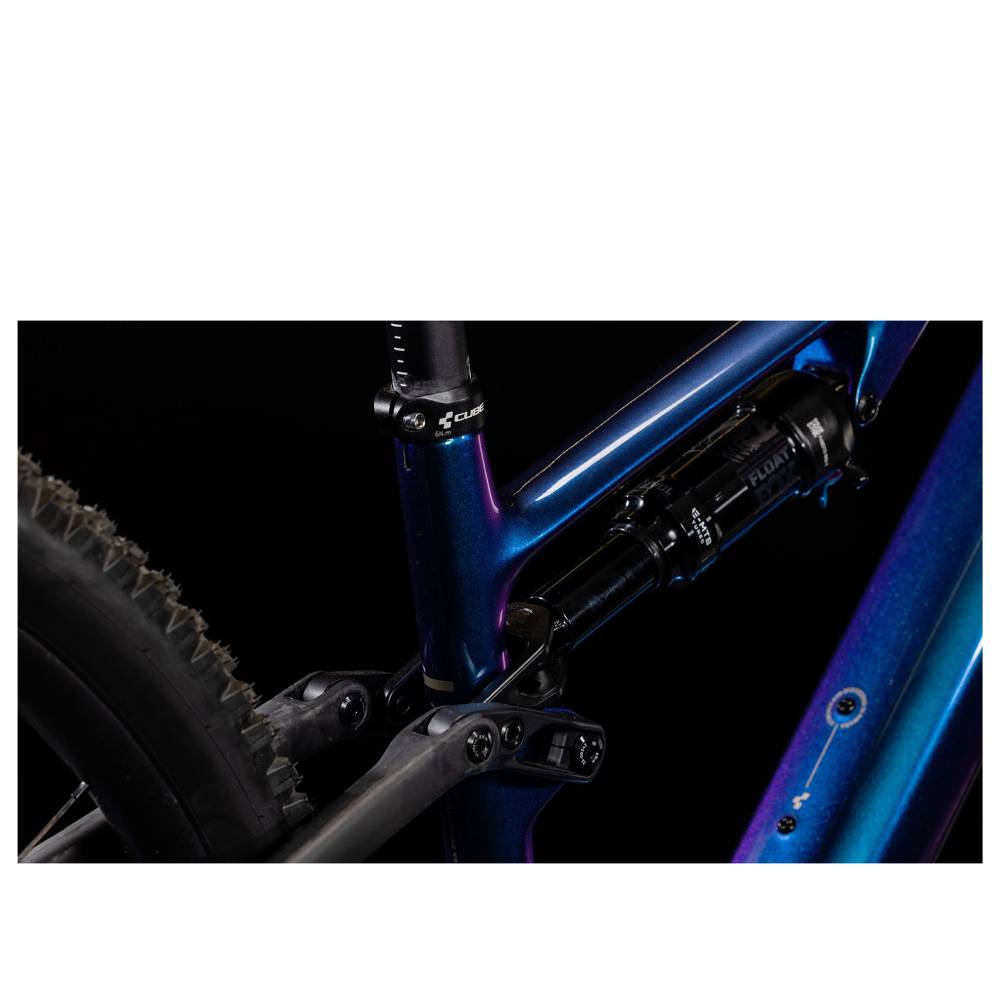

- SHOCK: Fox Float Performance, 210x55mm, Adjustable LSR w/ 2-Pos. Lever
- DRIVE UNIT: Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
- REMOTE: Bosch System Control, incl. Mini Remote
- BATTERY: Bosch CompactTube 400
- CHARGER: Bosch 4A
- BRAKE SYSTEM: Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake (203/180)
- REAR DERAILLEUR: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
- SHIFTERS: Shimano XT SL-M8100-IR, Direct Attach
- CRANKSET: e*thirteen Helix Race Alloy e*spec Crank, 32T
- CASSETTE: Shimano XT CS-M8100, 10-51T
- CHAIN: Shimano CN-M8100
- CHAIN GUIDE: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
- STEM: Newmen Evolution SL 318.4, 31.8mm
- HANDLEBAR: Newmen Advanced 318.25, Carbon, 780mm
- GRIPS: ACID Disrupt, Soft Compound
- WHEELSET: Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
- FRONT TYRE: Schwalbe Nobby Nic, Super Ground, Addix Soft, Kevlar, 2.4
- REAR TYRE: Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4
- SADDLE: Natural Fit Nuance SL
- SEAT POST: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- COLOUR: deepcobalt´n´black
- WEIGHT: 17,3 kg
Geometry
| Slack/Moderate |
S |
M |
L |
XL |
| Seat tube |
370 |
405 |
420 |
470 |
| Top Tube Horizontal |
575 / 577 |
598 / 599 |
626 / 627 |
658 / 660 |
| Seat angle |
76.2° / 76° |
76.2° / 76° |
76.2° / 76° |
76.2° / 76° |
| Head tube angle |
65.4° / 66° |
65.4° / 66° |
65.4° / 66° |
65.4° / 66° |
| Chainstays |
450 |
450 |
450 |
450 |
| Head tube |
102 |
112 |
122 |
142 |
| Wheelbase |
1193 / 1186 |
1217 / 1210 |
1246 / 1239 |
1282 / 1274 |
| BB-Height to Hub |
-34 / -32 |
-34 / -32 |
-33 / -32 |
-33 / -32 |
| Protrusion height – 80mm |
761 / 765 |
762 / 766 |
762 / 766 |
763 / 767 |
| Reach |
429 / 428 |
449 / 448 |
474 / 473 |
501 / 500 |
| Stack |
615 / 617 |
624 / 626 |
633 / 635 |
652 / 654 |
Ergonomics
|
S |
M |
L |
XL |
| Length seat post |
345 |
445 |
485 |
485 |
| Diameter seatpost |
31.6 |
31.6 |
31.6 |
31.6 |
| Angle stem |
6° |
6° |
6° |
6° |
| Crank length |
165 |
165 |
165 |
165 |
| Diameter tire maximum |
760 |
760 |
760 |
760 |
| Width tire maximum |
66 |
66 |
66 |
66 |
| Stem length |
40 |
40 |
40 |
40 |
| Handlebar width |
780 |
780 |
780 |
780 |
| Stroke seatpost |
100 |
150 |
170 |
170 |
| Rear suspension travel |
140 |
140 |
140 |
140 |
