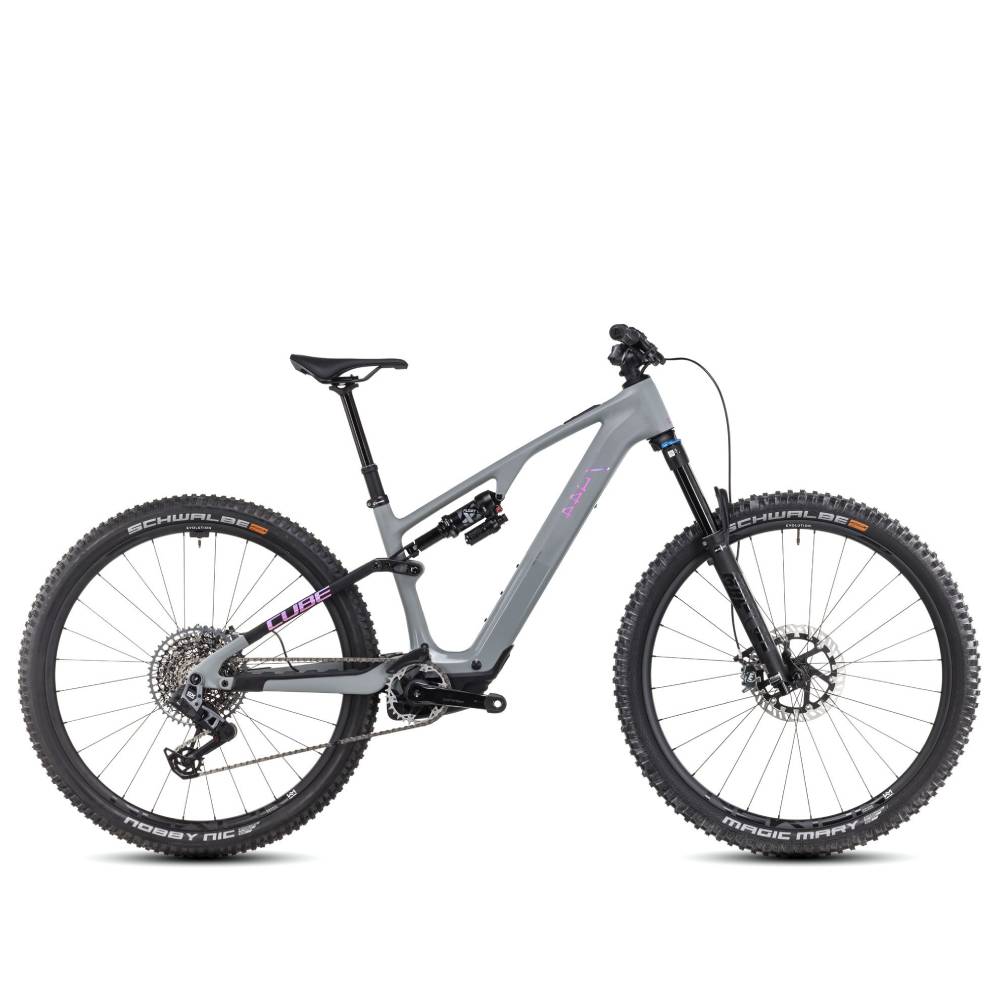

Cube AMS Hybrid ONE44 C:68X TM 400X 29″ swampgrey´n´purplereflex – 2025

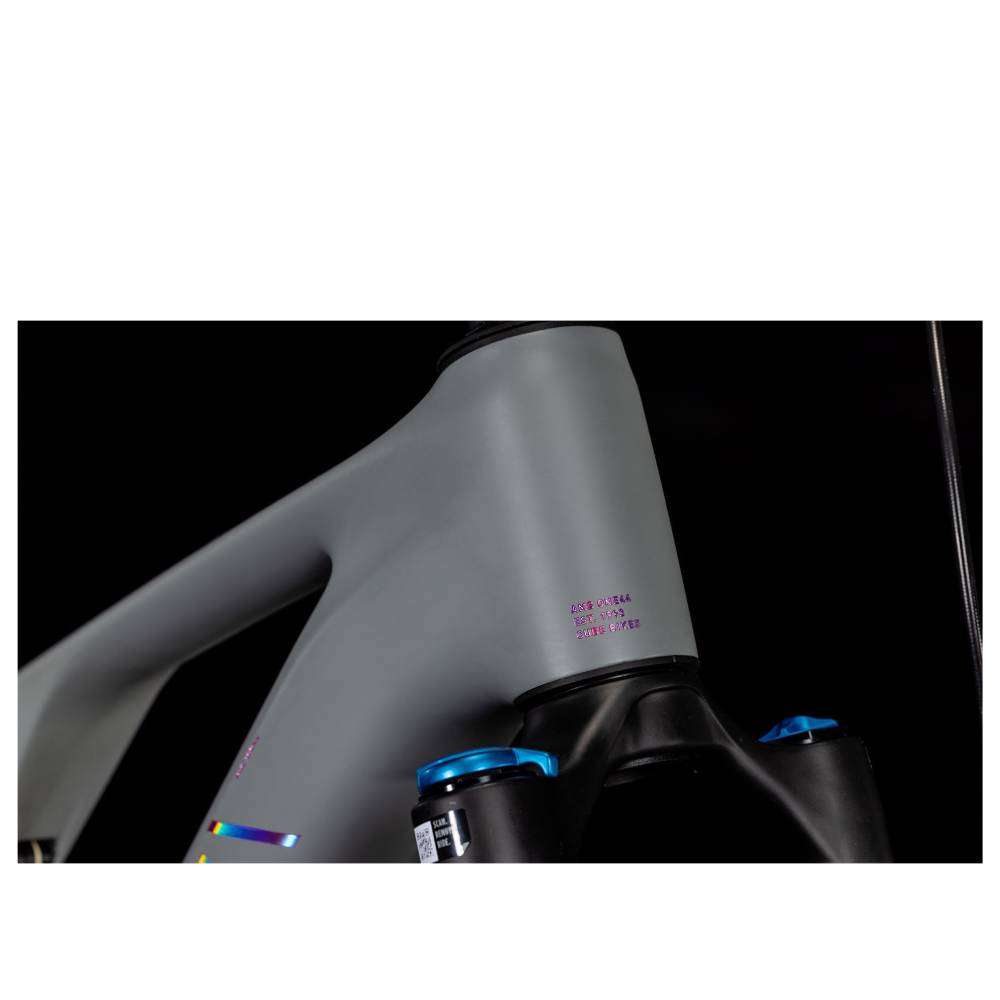

- headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
- shock hardware Front: 30x8mm, Rear: DU-Bushing 12,7mm
- Structural Weight 135 kg
- Maximum rider weight 100 kg

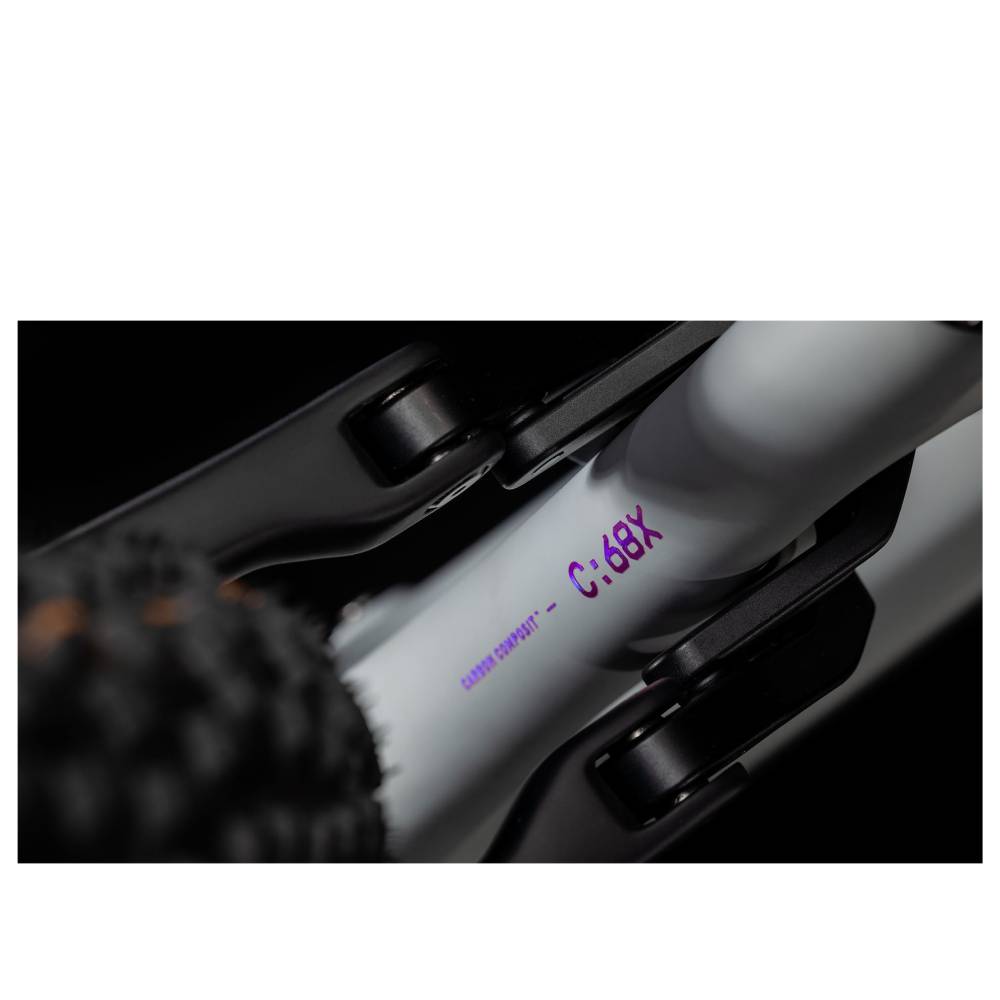

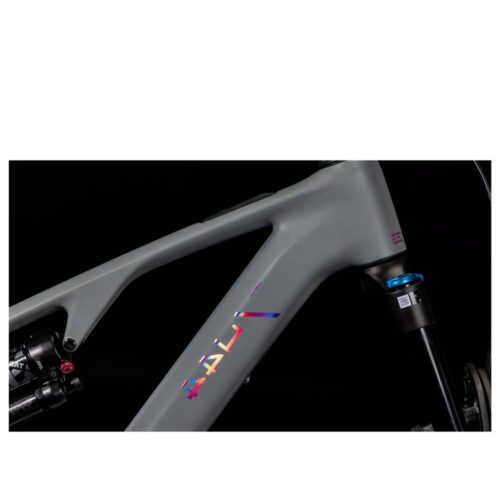

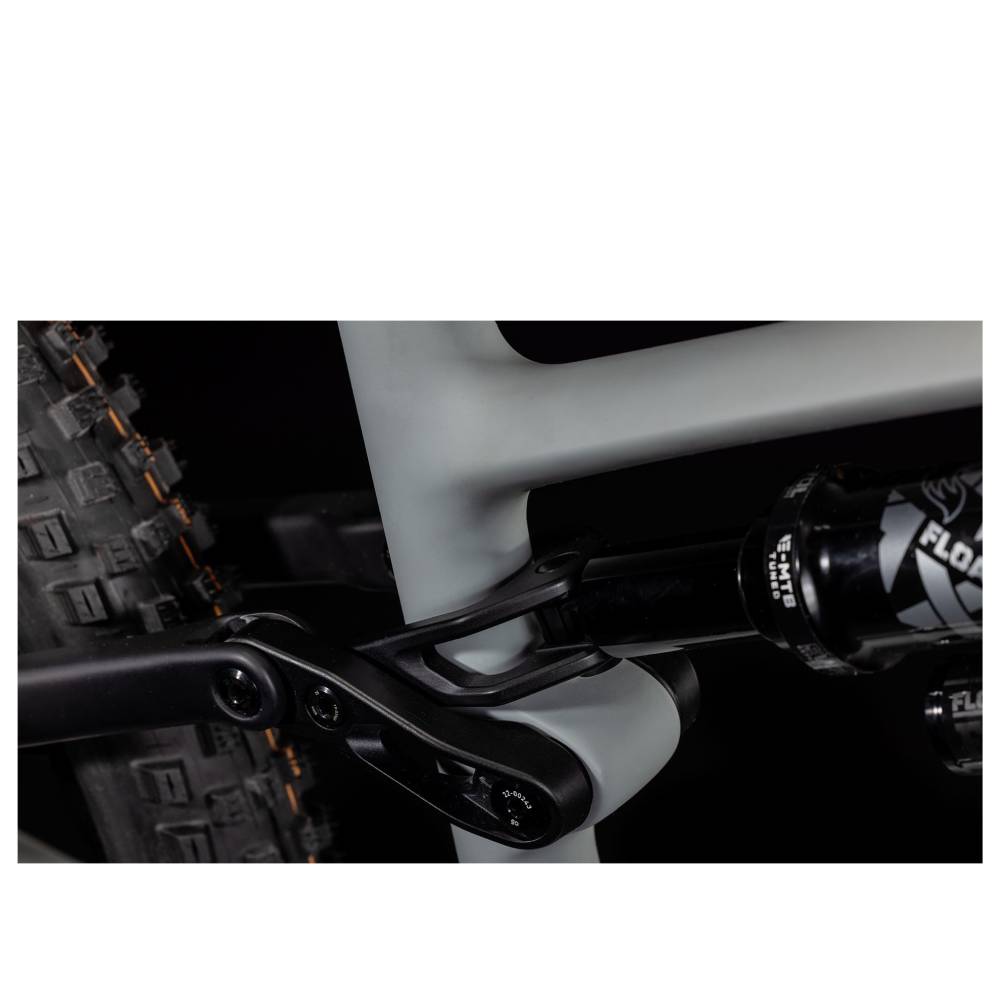

- frame C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
- size S, M, L, XL
- drive unit Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System

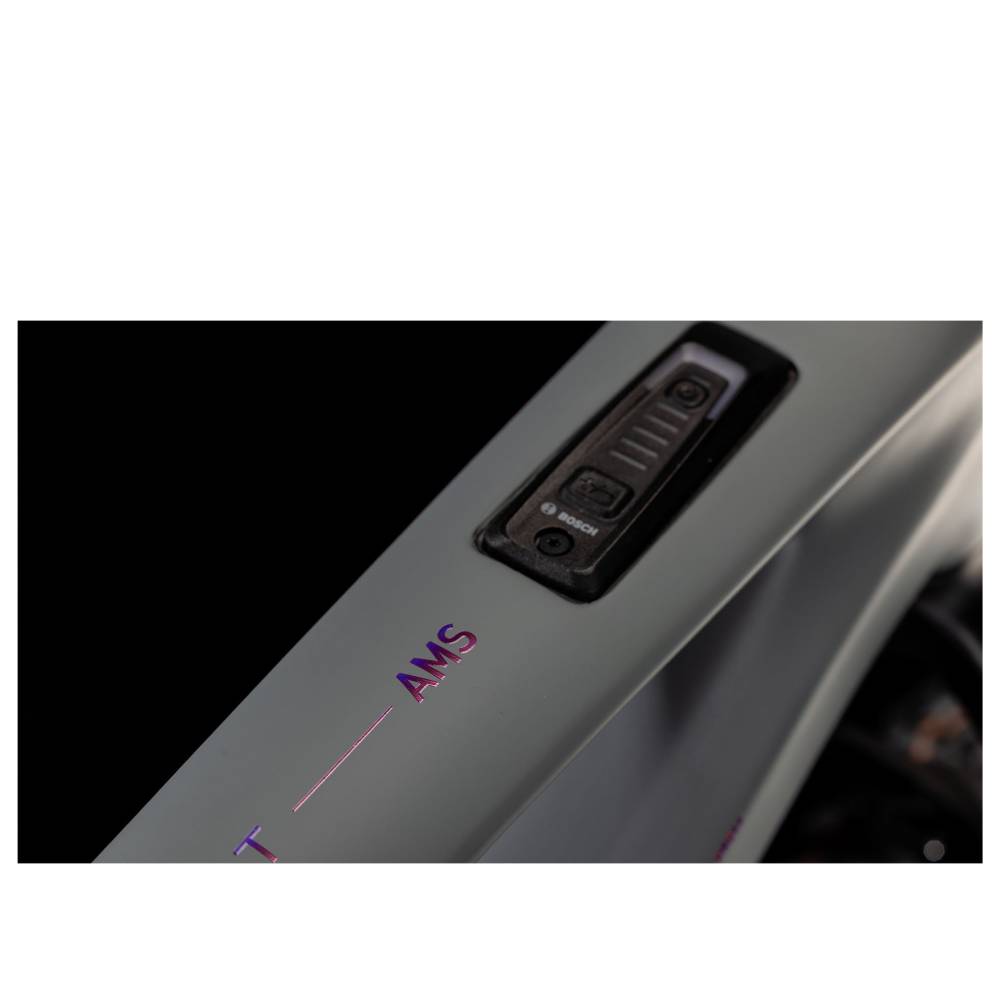

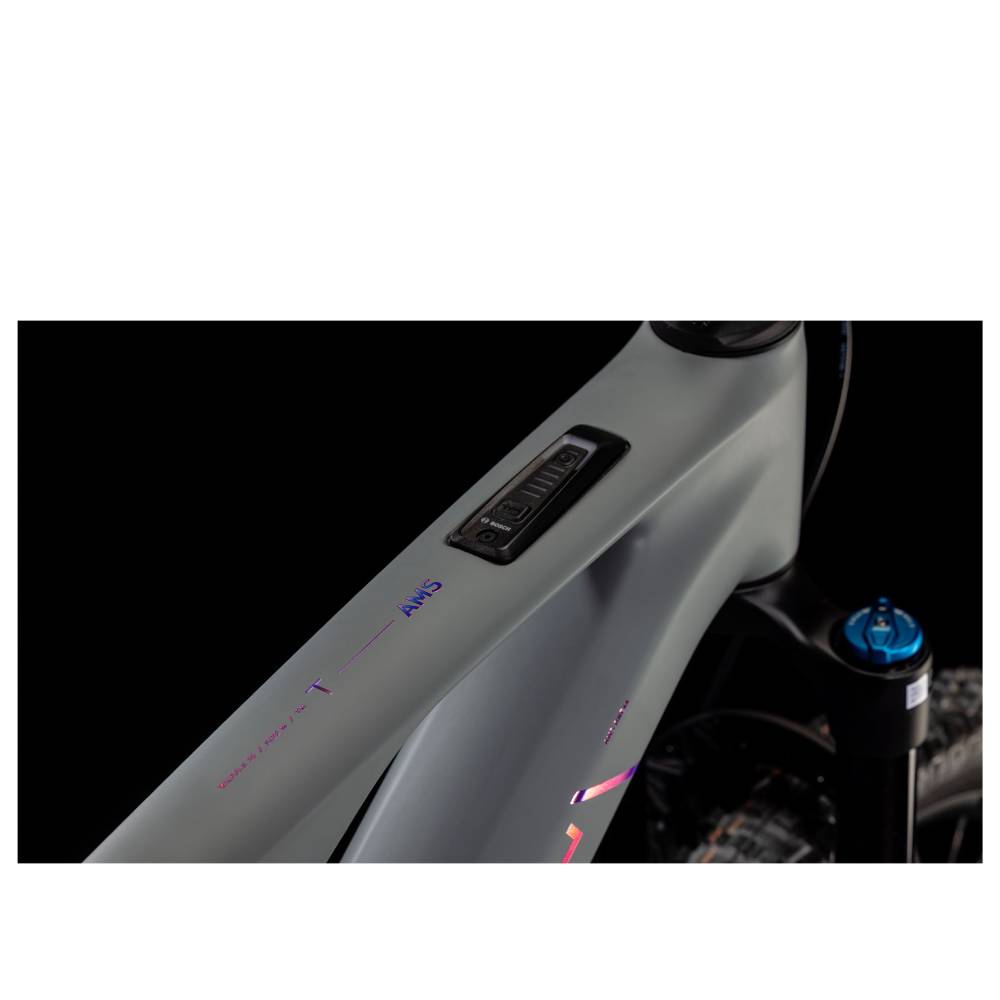

- Remote Bosch System Control, incl. Mini Remote
- battery Bosch CompactTube 400
- charger Bosch 4A

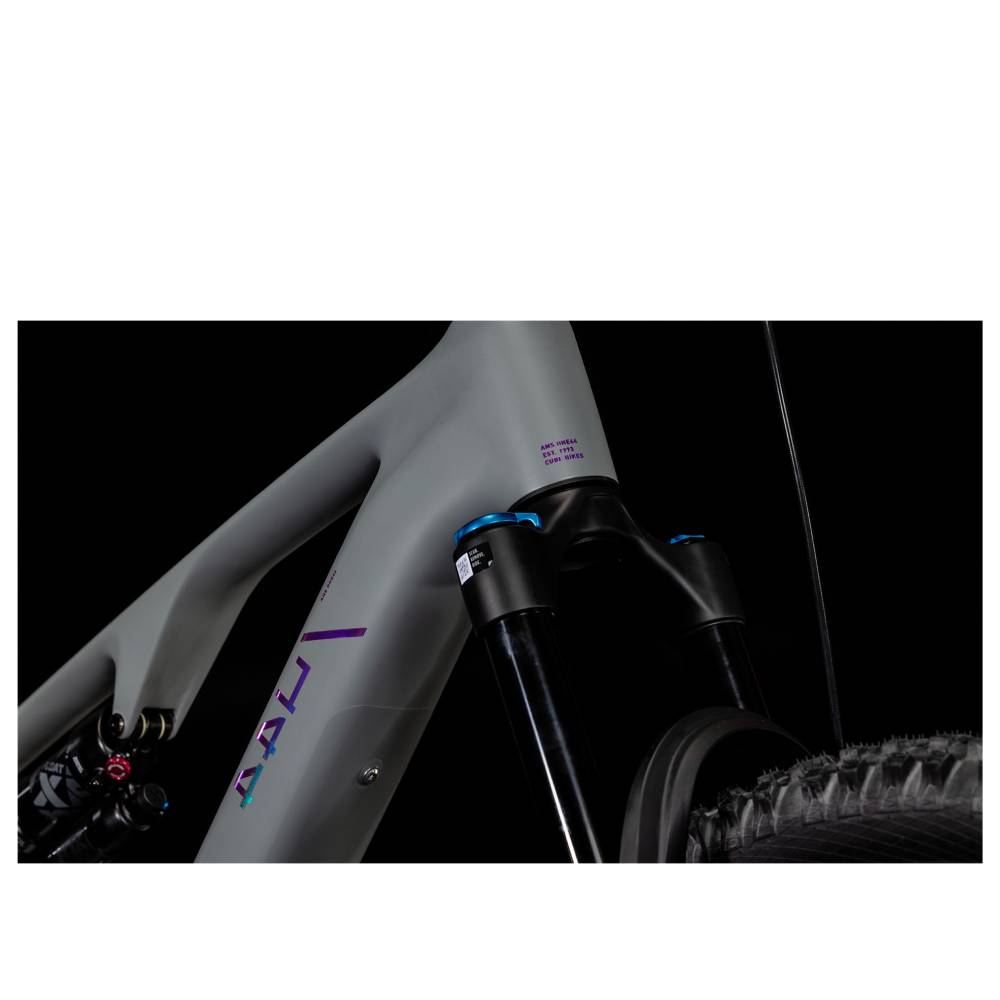

- Suspension fork Fox 36 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, 140mm

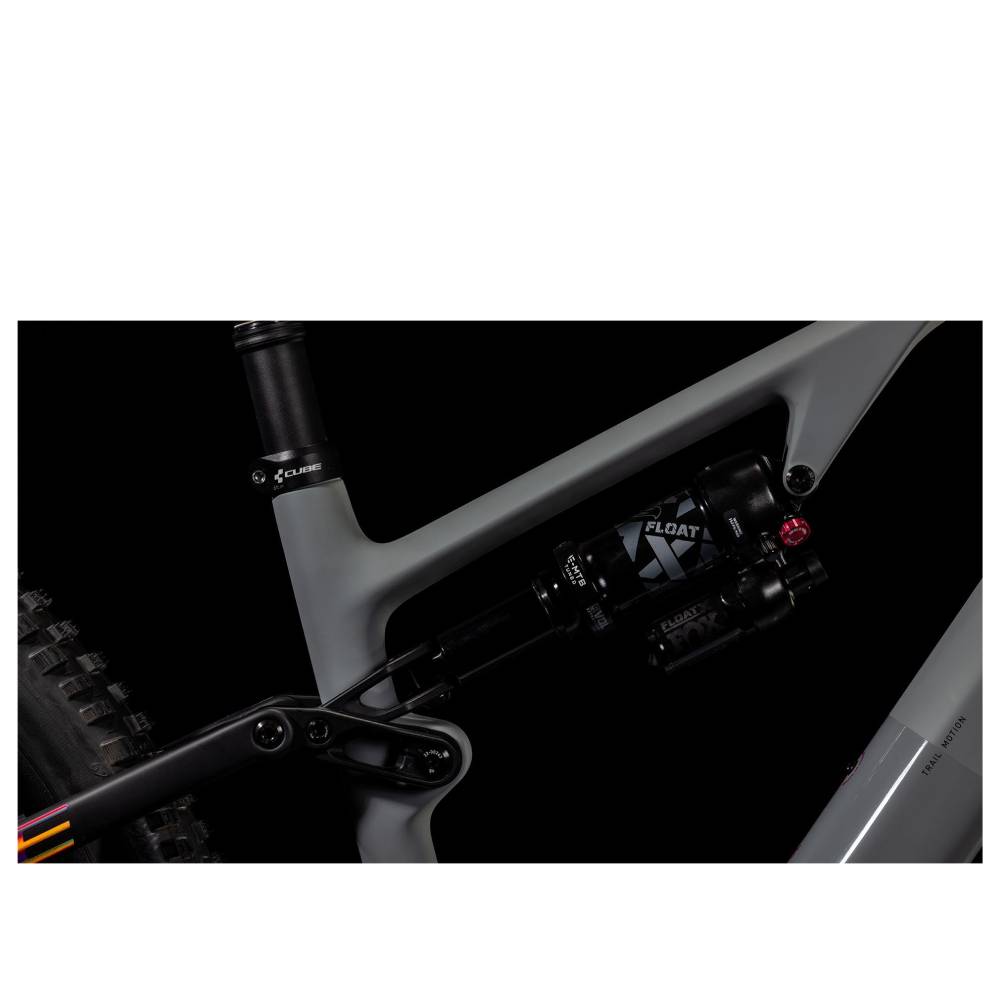

- shock Fox Float X Performance, 210x55mm, Adjustable LSR w/ 2-Pos- Lever
- brake system Magura MT7, Hydr. Disc Brake (203/180)

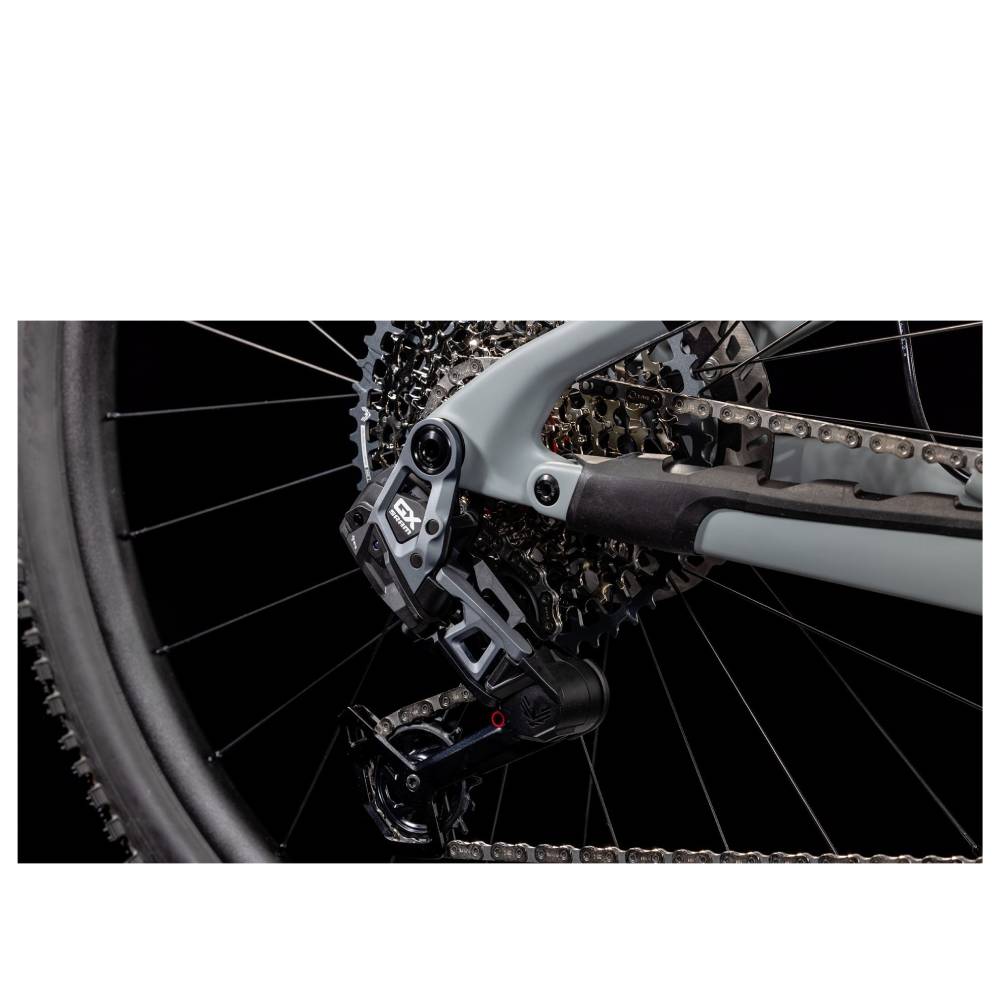

- rear derailleur Sram GX Eagle AXS™ Transmission, 12-Speed
- shifters Sram AXS™ Pod Ultimate Controller

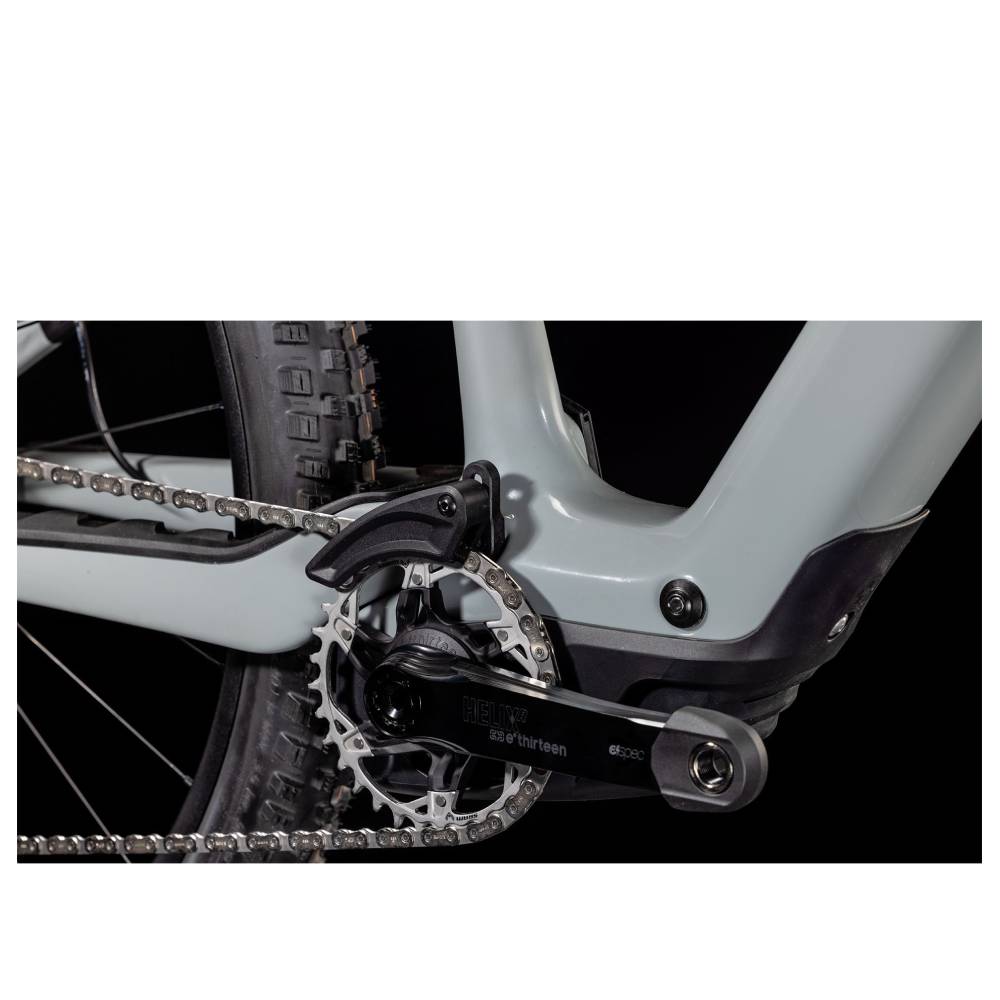

- crankset e*thirteen Helix Race Alloy e*spec Crank, 32T
- cassette Sram XS-1275, 10-52T
- chain Sram GX Eagle™ Transmission
- chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
- Stem Newmen Evolution SL 318.4, 31.8mm
- handlebar Newmen Evolution SL 318.25, 780mm
- grips ACID Disrupt, Soft Compound
- wheelset Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
- front tyre Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
- rear tyre Schwalbe Nobby Nic, Super Trail, Addix Soft, Kevlar, 2.4
- saddle Natural Fit Nuance SL
- seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- seat clamp CUBE Screwlock, 34.9mm
- colour swampgrey´n´purplereflex
- weight 18,4 kg
- Bike Weight and Rider Weight 115 kg
Geometry
| Slack/Moderate |
S |
M |
L |
XL |
| Seat tube |
370 |
405 |
420 |
470 |
| Top Tube Horizontal |
575 / 577 |
598 / 599 |
626 / 627 |
658 / 660 |
| Seat angle |
76.2° / 76° |
76.2° / 76° |
76.2° / 76° |
76.2° / 76° |
| Head tube angle |
65.4° / 66° |
65.4° / 66° |
65.4° / 66° |
65.4° / 66° |
| Chainstays |
450 |
450 |
450 |
450 |
| Head tube |
102 |
112 |
122 |
142 |
| Wheelbase |
1193 / 1186 |
1217 / 1210 |
1246 / 1239 |
1282 / 1274 |
| BB-Height to Hub |
-34 / -32 |
-34 / -32 |
-33 / -32 |
-33 / -32 |
| Protrusion height – 80mm |
761 / 765 |
762 / 766 |
762 / 766 |
763 / 767 |
| Reach |
429 / 428 |
449 / 448 |
474 / 473 |
501 / 500 |
| Stack |
615 / 617 |
624 / 626 |
633 / 635 |
652 / 654 |
Ergonomics
|
S |
M |
L |
XL |
| Length seat post |
345 |
445 |
485 |
485 |
| Diameter seatpost |
31.6 |
31.6 |
31.6 |
31.6 |
| Angle stem |
6° |
6° |
6° |
6° |
| Crank length |
165 |
165 |
165 |
165 |
| Diameter tire maximum |
760 |
760 |
760 |
760 |
| Width tire maximum |
66 |
66 |
66 |
66 |
| Stem length |
40 |
40 |
40 |
40 |
| Handlebar width |
780 |
780 |
780 |
780 |
| Stroke seatpost |
100 |
150 |
170 |
170 |
| Rear suspension travel |
140 |
140 |
140 |
140 |
