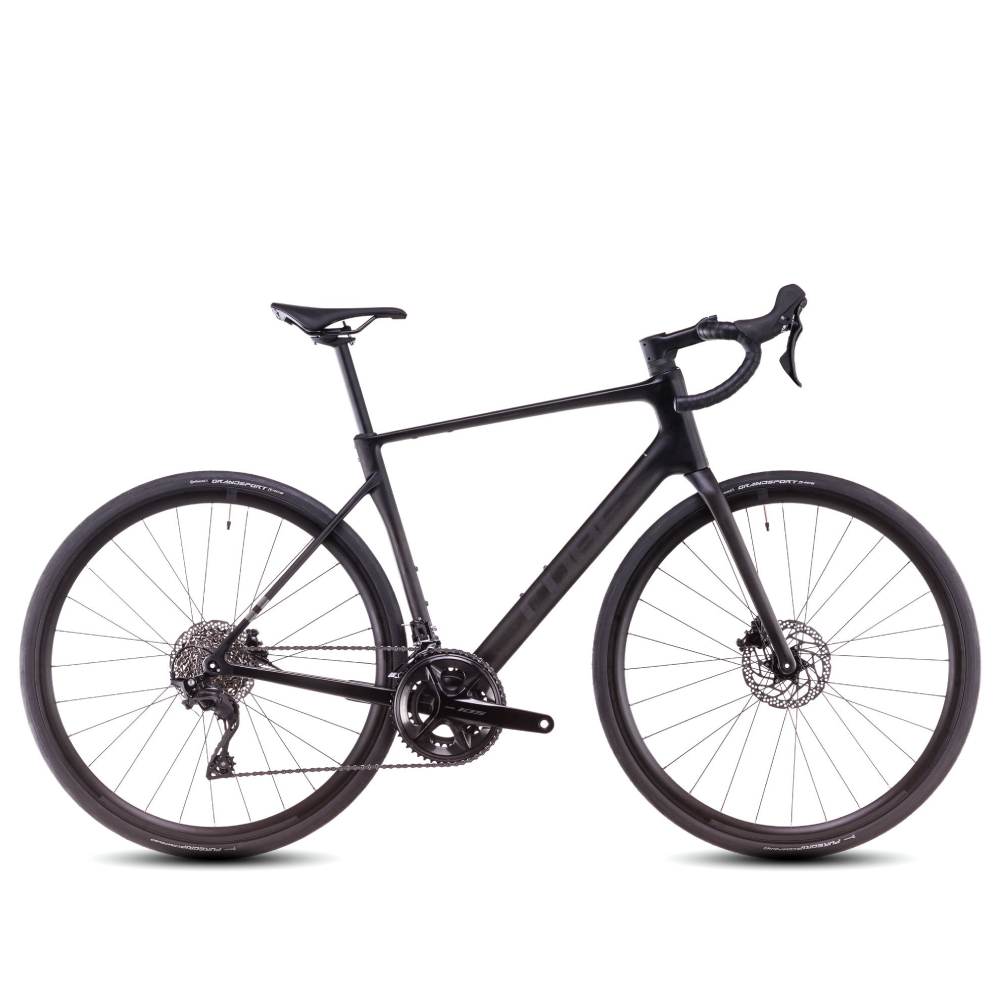

Cube Attain C:62 Race blackline – 2025
| colour |
blackline |
| size |
47cm, 50cm, 53cm, 56cm, 58cm, 60cm, 62cm |
| weight |
9,3 kg |
| frame |
C:62® Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Storage Box Option, AXH, 12x142mm |
| headset |
ACROS, Top Integrated 1 1/2″ w/ Integrated Cable Routing, Bottom Integrated 1 1/4″ |
| handlebar |
CUBE Compact Race Bar |
| handlebar tape |
ACID Bartape RC 3.0 |

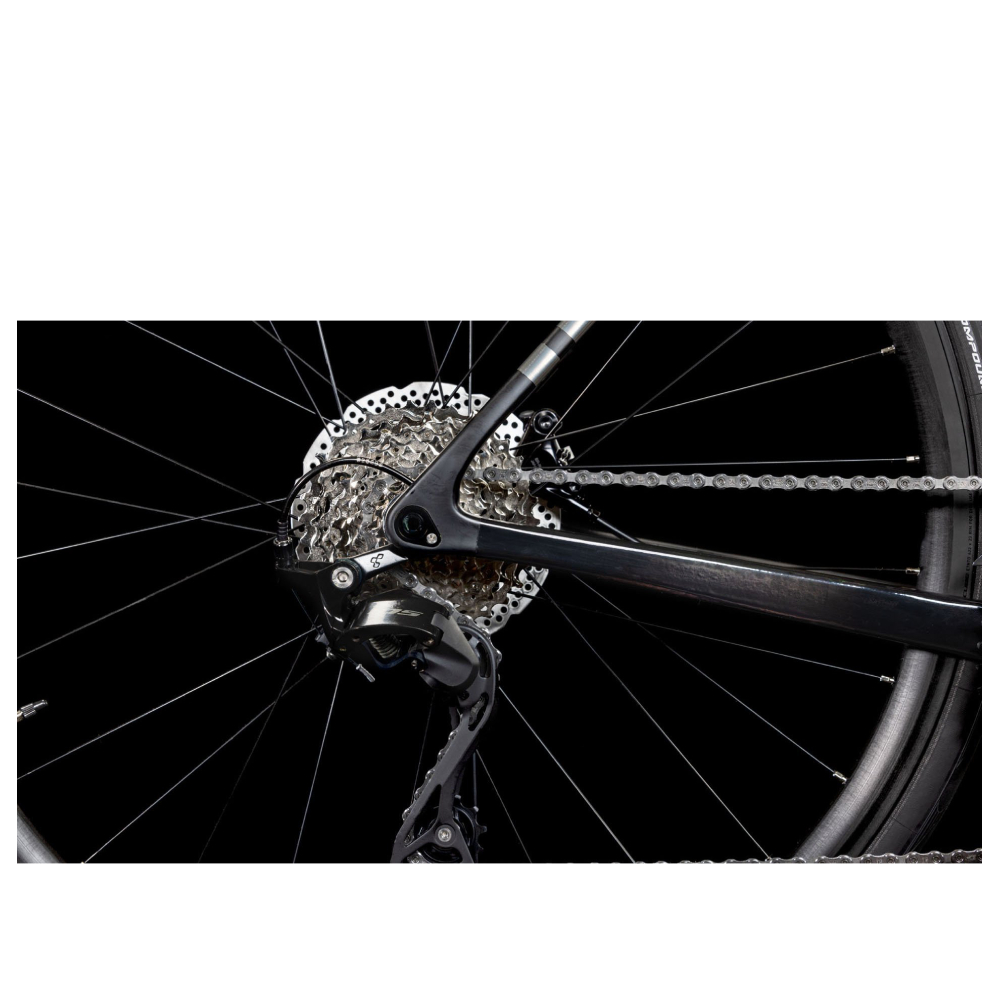

| rear derailleur |
Shimano 105 RD-R7100-DGS, 12-Speed |
| front derailleur |
Shimano 105 FD-R7100-F, Braze-On |
| shift/ brake levers |
Shimano 105 ST-R7120 |
| brake system |
Shimano BR-R7170, Hydr. Disc Brake, Flat Mount (160/160) |
| crankset |
Shimano 105 FC-R7100, Hollowtech II, 50x34T |
| cassette |
Shimano CS-R7101, 11-34T |
| chain |
Shimano CN-M6100 |
| wheelset |
CUBE RA 2.3 Aero Disc |
| tyres |
Conti Grand Prix, Kevlar, 30-622 |
| saddle |
ACID Nuance Pro |
| seat post |
CUBE Performance Post, 27.2mm |
| Stem |
CUBE CIS Stem w/ Cable Routing |
| bottom bracket |
Shimano SM-BB71-41B, 86mm Pressfit |
| Rigid fork |
Attain C:62®, Full Carbon, Integrated Cable Routing, Flat Mount, 12x100mm |
Geometries
|
47 cm |
50 cm |
53 cm |
56 cm |
58 cm |
60 cm |
62 cm |
| Seat tube |
410 |
440 |
470 |
500 |
520 |
540 |
560 |
| Top Tube Horizontal |
510 |
517 |
537 |
560 |
575 |
590 |
595 |
| Seat angle |
74.6 |
74.6 |
74 |
73.5 |
73 |
72.5 |
72.5 |
| Head tube angle |
70.6 |
71.1 |
72 |
72.5 |
72.5 |
72.5 |
72.5 |
| Chainstays |
420 |
420 |
420 |
420 |
420 |
420 |
420 |
| Head tube |
120 |
130 |
152 |
182 |
202 |
222 |
242 |
| Wheelbase |
991 |
994 |
1000 |
1014 |
1023 |
1033 |
1038 |
| BB-Height to Hub |
74 |
74 |
74 |
74 |
74 |
74 |
74 |
| Protrusion height – 80mm |
718 |
741 |
767 |
796 |
816 |
835 |
855 |
| Reach |
365 |
369 |
376 |
385 |
388 |
392 |
391 |
| Stack |
525 |
538 |
561 |
591 |
610 |
629 |
648 |
| Length seat post |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
| Diameter seatpost |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
| Crank length |
165 |
170 |
170 |
172.5 |
172.5 |
175 |
175 |
| Diameter tire maximum |
695 |
695 |
695 |
695 |
695 |
695 |
695 |
| Width tire maximum |
34 |
34 |
34 |
34 |
34 |
34 |
34 |
| Stem length |
70 |
90 |
90 |
100 |
100 |
100 |
110 |
| Handlebar width |
380 |
400 |
420 |
420 |
440 |
440 |
440 |
