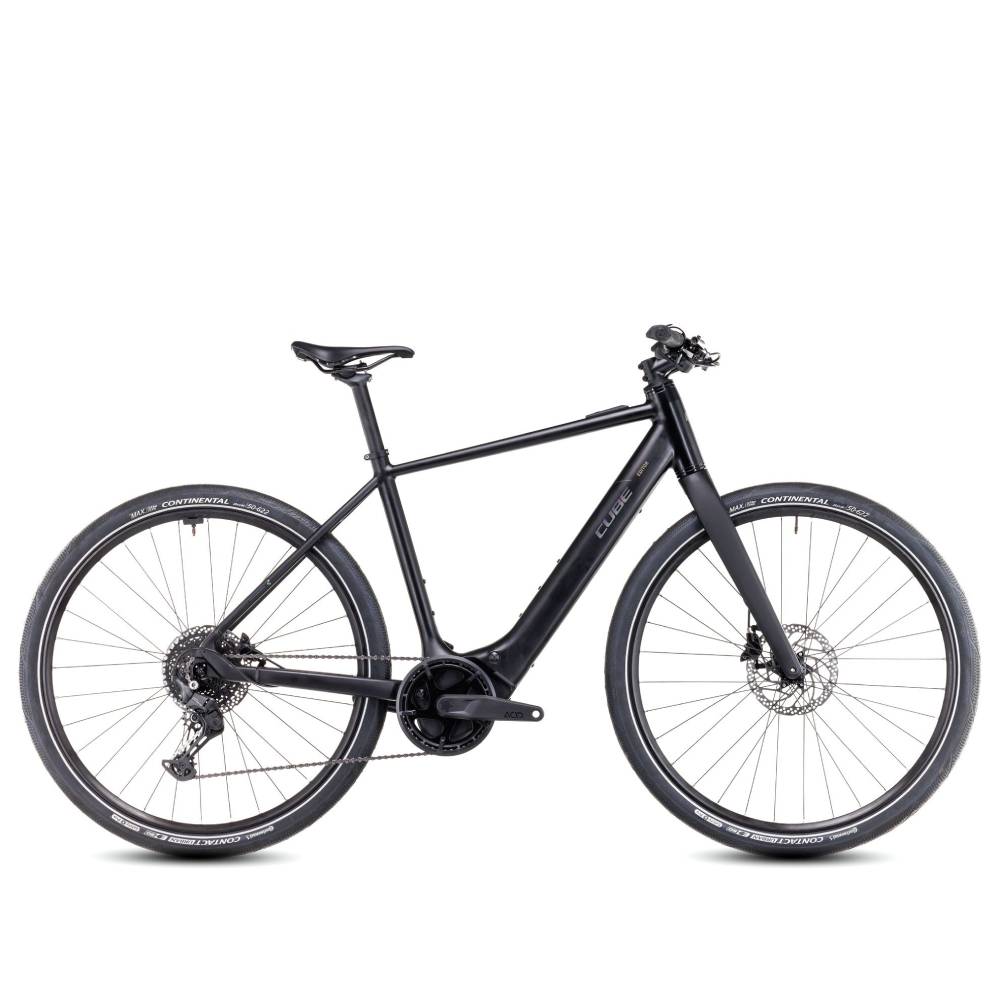

Cube Editor Hybrid Pro 400X Black ‘n’ Spectral – 2025
FRAME
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fixed Integrated Battery, Advanced Internal Cable Routing
SIZE
50cm, 54cm, 58cm, 62cm
RIGID FORK
CUBE Editor Full Carbon, 1 1/8″ – 1 1/2″ Tapered, Internal Cable Routing, 12x100mm
E-BIKE SYSTEM
DRIVE UNIT
Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
REMOTE
Bosch System Control, incl. Mini Remote
BATTERY
Bosch CompactTube 400
CHARGER
Bosch 2A
DRIVETRAIN & BRAKES
BRAKE SYSTEM
Shimano BR-MT200, Hydr. Disc Brake (180/180)
REAR DERAILLEUR
Shimano Cues RD-U6000-GS
SHIFTERS
Shimano Cues SL-U6000, Rapidfire-Plus
CRANKSET
ACID MTB Hybrid Pro, 44T
CASSETTE
Shimano Cues CS-LG300, 11-39T
CHAIN
KMC eGlide
COCKPIT
STEM
CUBE Performance Stem Pro, 31.8mm
HANDLEBAR
CUBE Rise Trail Bar, 680mm
GRIPS
ACID Hybrid Tour
WHEELS
RIMS
CUBE EX21, 32H, Disc, Tubeless Ready
FRONT HUB
Shimano Tiagra HB-RS470, 12mm, Centerlock
REAR HUB
Shimano FH-QC300-HM, QR, Centerlock
TYRES
Conti Contact Urban, 50-622
FINISHING KIT
SADDLE
Natural Fit Venec
SEAT POST
CUBE Performance Post, 30.9mm
PEDALS
ACID PP Trekking
BELL
ACID Alpha GR
PRODUCT INFORMATION
COLOUR
black´n´spectral
WEIGHT
17,2 kg
Geometry
|
50 cm |
54 cm |
58 cm |
62 cm |
| Seat tube |
460 |
510 |
560 |
600 |
| Top Tube Horizontal |
570 |
586 |
596 |
607 |
| Seat angle |
74.2° |
74.2° |
74.2° |
74.2° |
| Head tube angle |
69° |
70° |
70° |
70° |
| Chainstays |
477 |
477 |
477 |
477 |
| Head tube |
152 |
157 |
177 |
197 |
| Wheelbase |
1125 |
1131 |
1143 |
1155 |
| BB-Height to Hub |
70 |
70 |
70 |
70 |
| Protrusion height – 80mm |
772 |
807 |
845 |
876 |
| Reach |
400 |
413 |
418 |
424 |
| Stack |
604 |
613 |
632 |
650 |
Ergonomics
|
50 cm |
54 cm |
58 cm |
62 cm |
| Length seat post |
350 |
400 |
400 |
400 |
| Diameter seatpost |
30.9 |
30.9 |
30.9 |
30.9 |
| Angle stem |
6° |
6° |
6° |
6° |
| Crank length |
175 |
175 |
175 |
175 |
| Diameter tire maximum |
728 |
728 |
728 |
728 |
| Width tire maximum |
52 |
52 |
52 |
52 |
| Stem length |
60 |
75 |
75 |
90 |
| Handlebar width |
680 |
680 |
680 |
680 |
