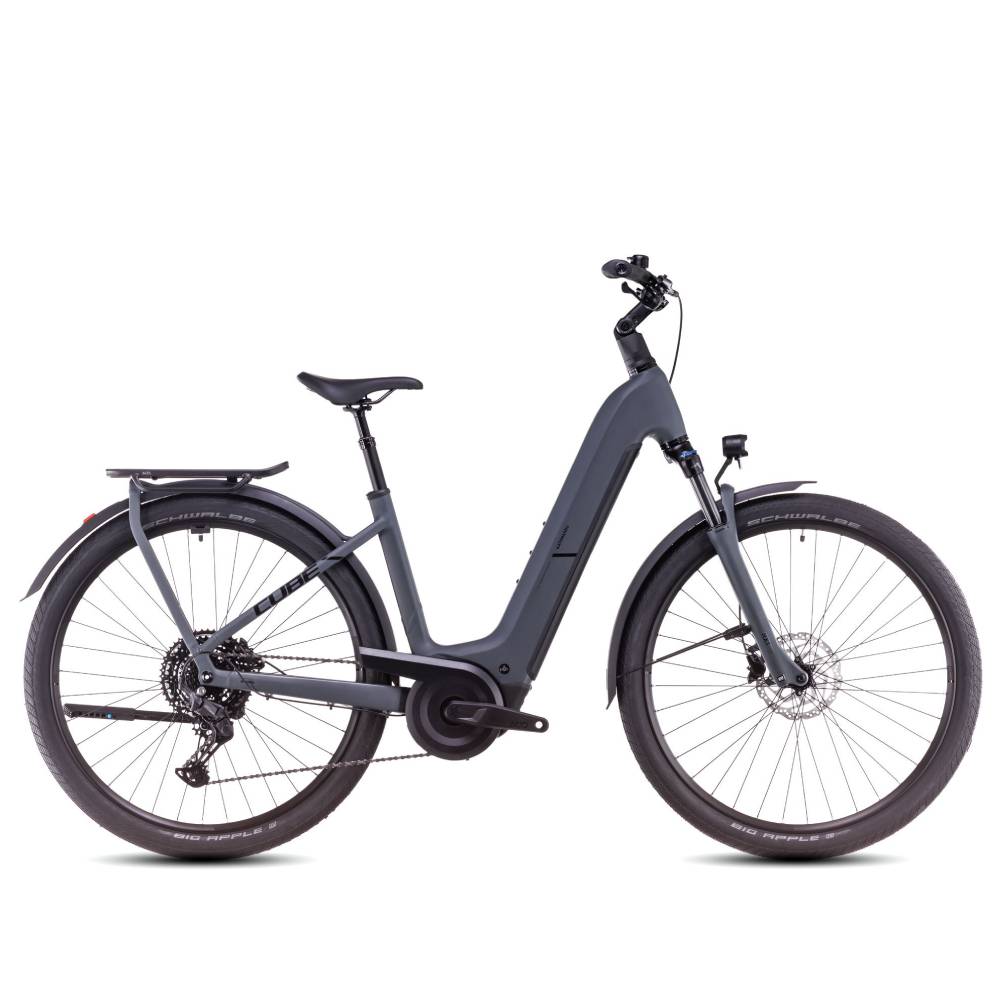

Cube Kathmandu Hybrid ONE Easy Entry 800 shadowgrey´n´black – 2025
- headset ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), HIC
- Maximum rider weight 110 kg
- frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
- size Easy Entry: 46cm, 50cm, 54cm, 58cm, 62cm
- Suspension fork SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
- drive unit Bosch Drive Unit Performance Line CX, Smart System
- Remote Bosch Purion 200 with Integrated Display
- battery Bosch PowerTube 800wh
- charger Bosch 2A
- brake system Shimano BR-MT200, Hydr. Disc Brake (180/180)
- rear derailleur Shimano Cues RD-U6000-GS, 10-Speed
- shifters Shimano Cues SL-U6000, Rapidfire-Plus
- crankset ACID MTB Hybrid Pro
- cassette Shimano Cues CS-LG300, 11-48T
- chain KMC eGlide
- Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
- handlebar CUBE Comfort Trail Bar, 700mm
- grips ACID Travel Comfort
- rims CUBE EX25, 36H, Disc, Tubeless Ready
- front hub CUBE Engineered By Newmen, 15mm, Boost, Centerlock
- rear hub Shimano FH-MT400-B, 12mm, Boost, Centerlock
- tyres Schwalbe Big Apple, Active, 55-622
- saddle ACID Sequence Pro Plus
- seat post CUBE Suspension Seatpost HD, 31.6mm
- pedals ACID PP MTB
- front light ACID Front Light PRO-E 60 X-Connect, 12V, DC
- rear light ACID Mudguard Rear Light PRO-E, 12V, DC
- kickstand ACID FM Pure Kickstand
- mudguards ACID 65 Integrated Carrier 3.0
- bell Easy Bell
- carrier ACID Integrated Carrier 3.0, CUBE Adapter Compatible
- colour shadowgrey´n´black
- weight 28,5 kg
- Structural Weight 140 kg
Geometry
|
46 cm |
50 cm |
54 cm |
58 cm |
62 cm |
| Seat tube |
420 |
460 |
510 |
560 |
600 |
| Top Tube Horizontal |
580 |
590 |
600 |
620 |
640 |
| Seat angle |
73.5° |
73.5° |
73° |
73° |
73° |
| Head tube angle |
67.5° |
67.5° |
68.5° |
68.5° |
68.5° |
| Chainstays |
499 |
499 |
499 |
499 |
499 |
| Head tube |
150 |
150 |
150 |
160 |
175 |
| Wheelbase |
1169 |
1179 |
1171 |
1192 |
1213 |
| BB-Height to Hub |
75 |
75 |
75 |
75 |
75 |
| Reach |
378 |
388 |
390 |
408 |
424 |
| Stack |
680 |
680 |
685 |
694 |
708 |
Ergonomics
|
46 cm |
50 cm |
54 cm |
58 cm |
62 cm |
| Length seat post |
300 |
300 |
300 |
300 |
300 |
| Diameter seatpost |
31.6 |
31.6 |
31.6 |
31.6 |
31.6 |
| Crank length |
170 |
170 |
170 |
170 |
170 |
| Diameter tire maximum |
750 |
750 |
750 |
750 |
750 |
| Width tire maximum |
56 |
56 |
56 |
56 |
56 |
| Stem length |
65 |
90 |
90 |
90 |
90 |
| Handlebar width |
700 |
700 |
700 |
700 |
700 |
