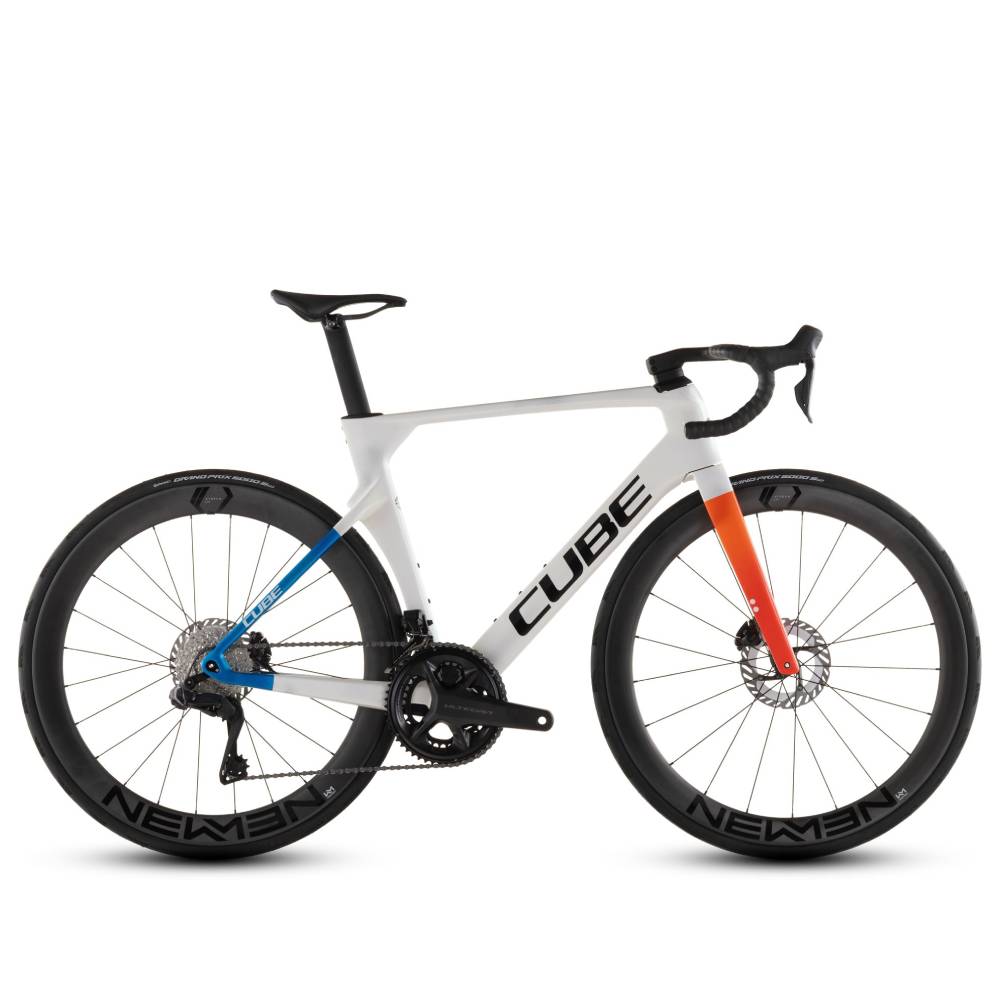

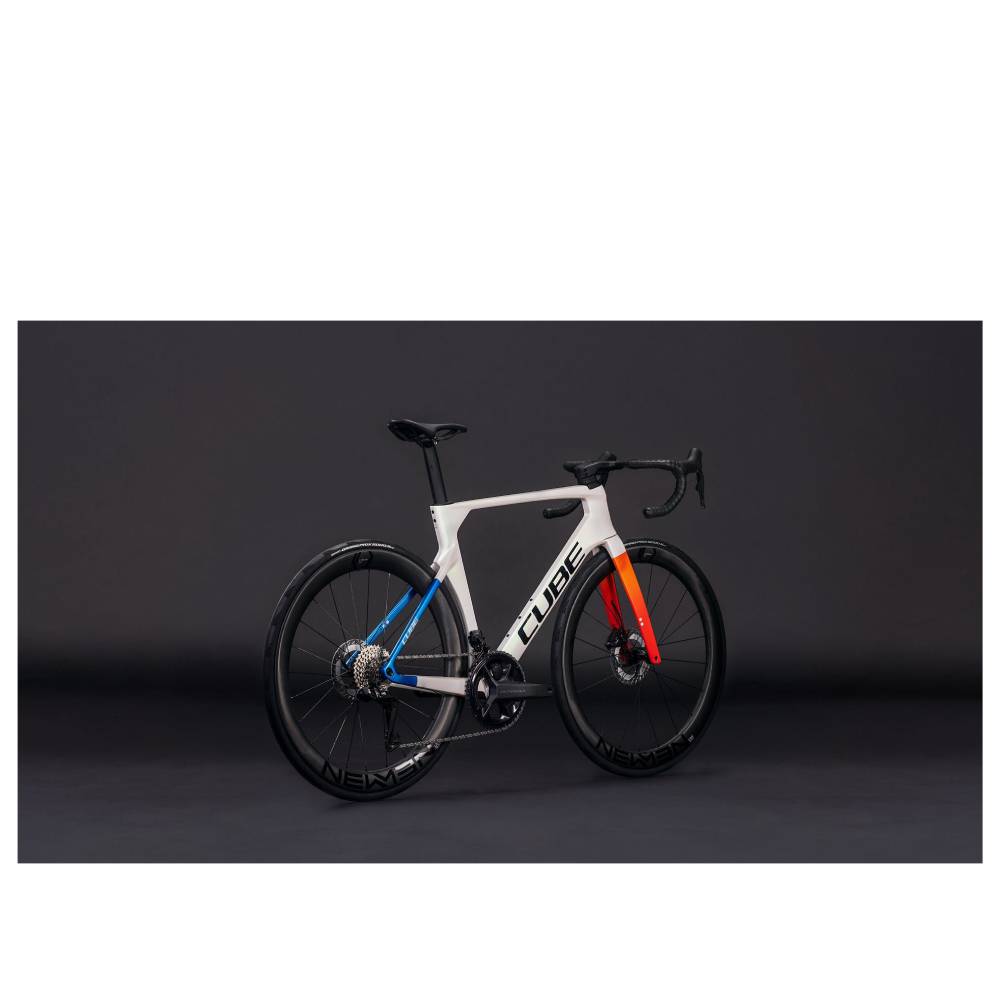

Cube Litening AERO C:68X Race teamline – 2026

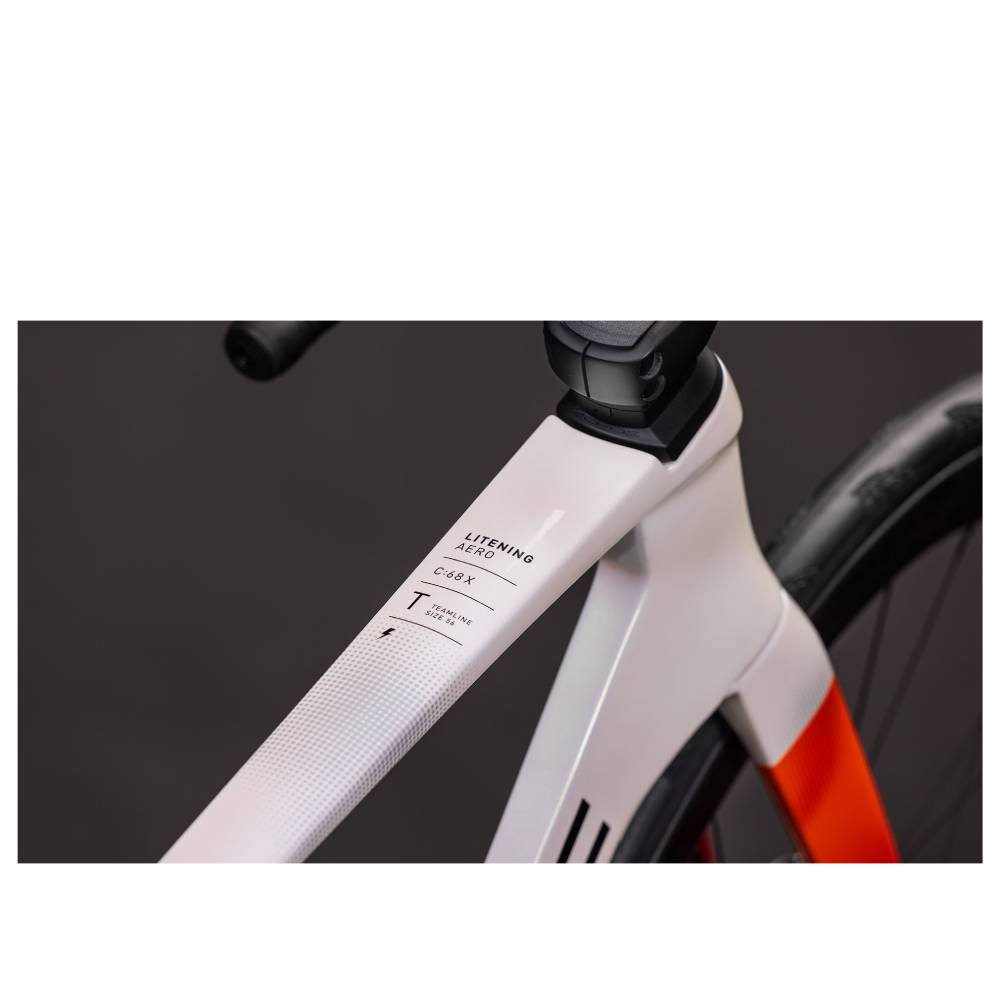

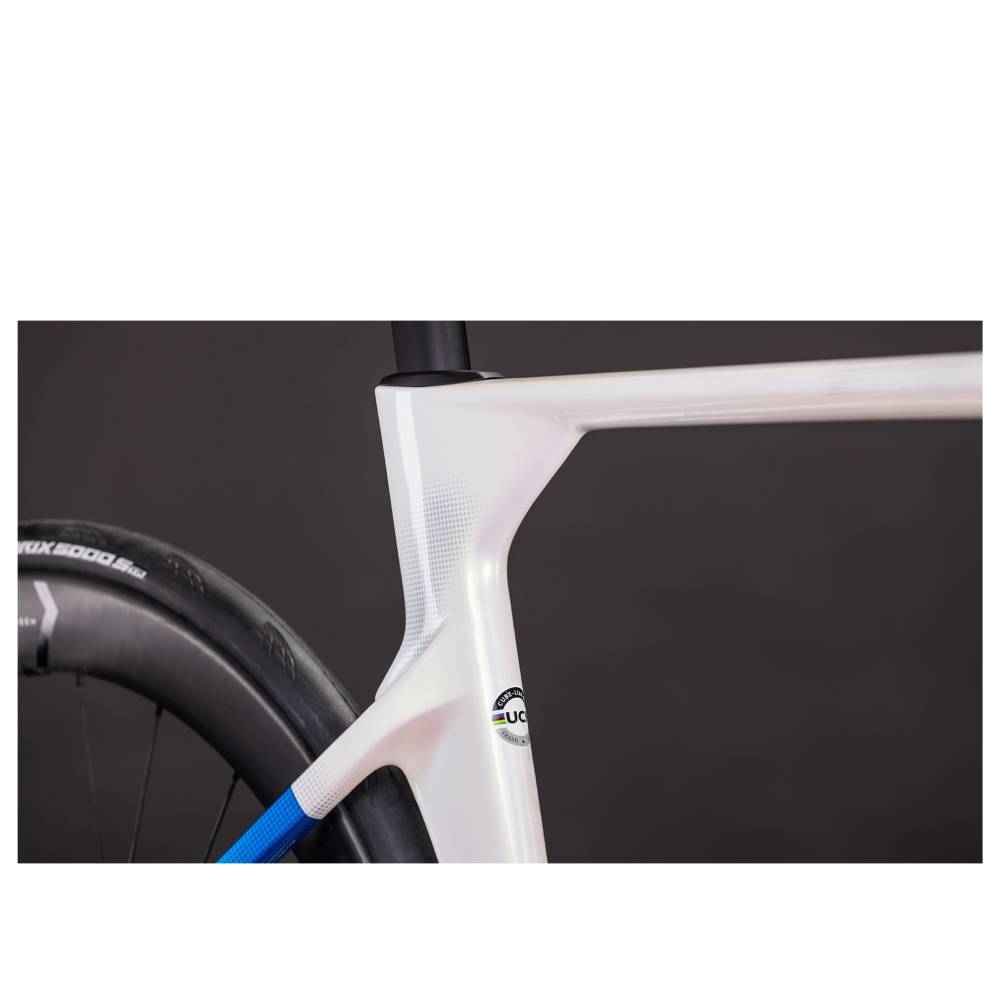

- frame Litening C:68X® Aero Monocoque Advanced Twin Mold Technology, Aero Optimized Tubes, Full Internal Cable Routing, Flat Mount Disc
- size 50cm, 52cm, 54cm, 56cm, 58cm, 60cm
- Rigid fork Litening C:68X® Aero, Integrated Cable Routing, Flat Mount Disc
- shift/ brake levers Shimano Ultegra Di2 ST-R8170
- brake system Shimano Ultegra BR-R8170, Hydr. Disc Brake, Flat Mount (160/160)
- rear derailleur Shimano Ultegra Di2 RD-R8150-DGS. 12-Speed
- front derailleur Shimano Ultegra Di2 FD-R8150-F
- bottom bracket Shimano SM-BB71-41B, 86mm Pressfit

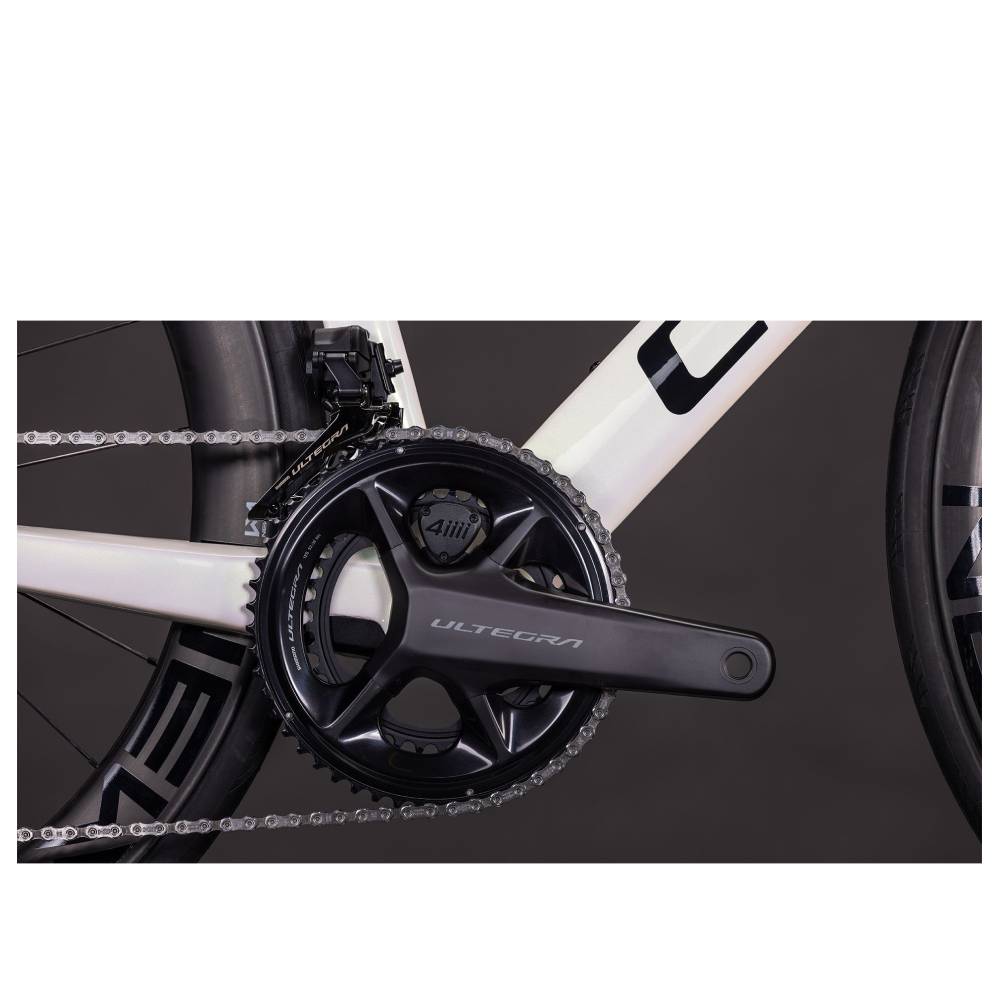

- crankset Shimano Ultegra FC-R8100, Hollowtech ll, 52x36T, 4iiii Precision 3+ Powermeter Dual Side
- cassette Shimano Ultegra CS-R8101, 11-34T
- chain Shimano CN-M8100

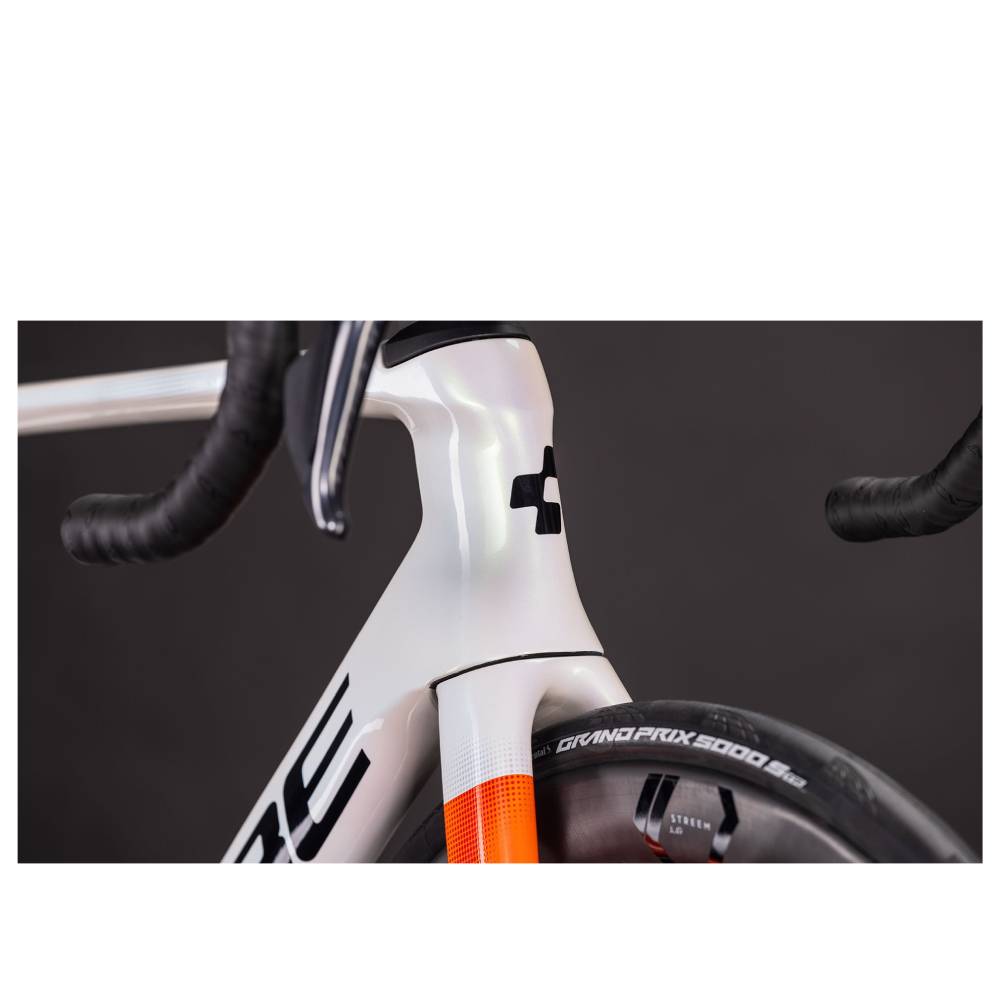

- headset ACROS, Top Integrated 1 1/2″ w/ Integrated Cable Routing, Bottom Integrated 1 1/4″
- integrated bar/ stem ICR AERO Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin/Wahoo Mount Interface
- handlebar tape ACID Bartape RC 2.5
- wheelset Newmen Streem A.49/A.54 Carbon, 21/24 Spokes, 12x100mm/12x142mm, Tubeless Ready
- tyres Conti Grand Prix 5000 S TR, Tubeless Ready, 28-622
- saddle ACID Nuance SLT Carbon

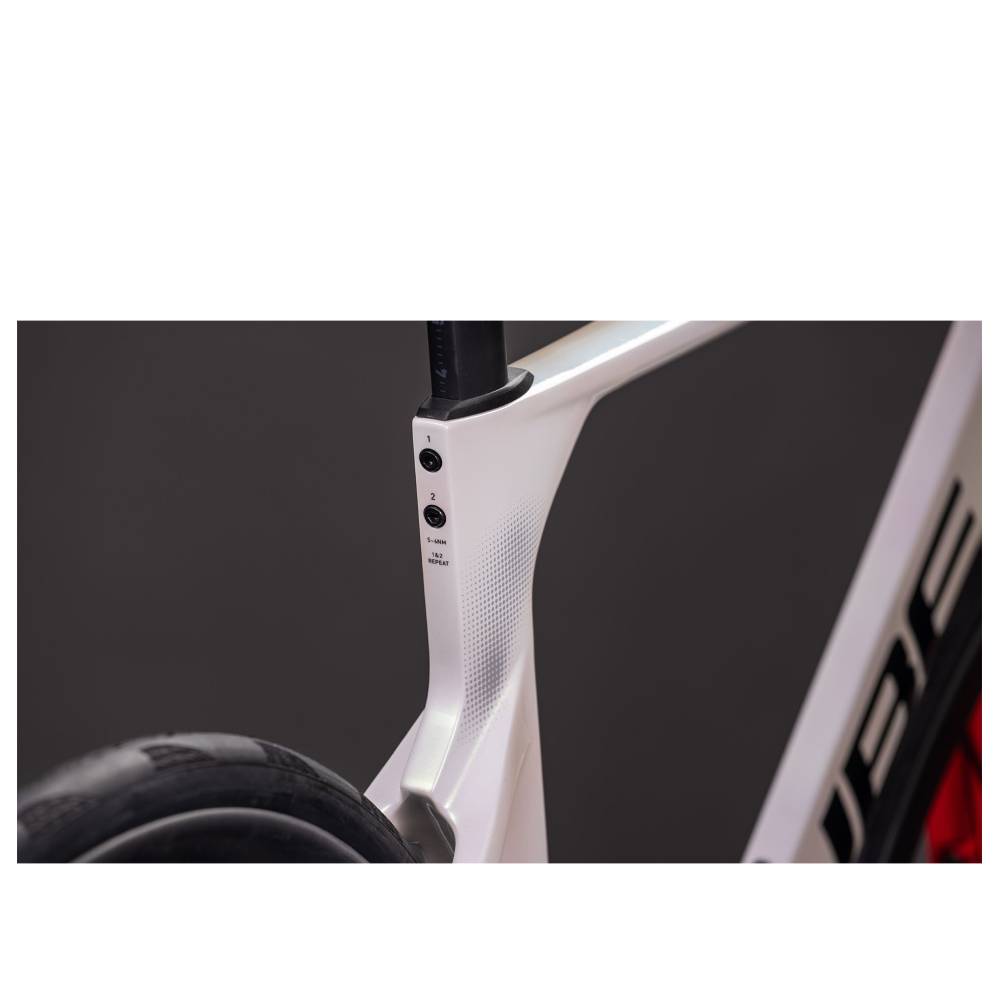

- seat post Litening C:68X® Aero, Comfort Flex
- extras tubolito™ Inner Tubes
- colour teamline
- weight 7,8 kg
- Structural Weight 115 kg
Geometry
|
50 cm |
52 cm |
54 cm |
56 cm |
58 cm |
60 cm |
| Seat tube |
460 |
480 |
500 |
520 |
540 |
560 |
| Top Tube Horizontal |
527 |
537 |
550 |
565 |
580 |
592 |
| Seat angle |
75° |
74.2° |
73.5° |
73.5° |
73° |
72.5° |
| Head tube angle |
72.3° |
72.5° |
73° |
73.5° |
73.5° |
73.5° |
| Chainstays |
410 |
410 |
410 |
410 |
410 |
410 |
| Head tube |
95 |
105 |
125 |
145 |
165 |
180 |
| Wheelbase |
981 |
981 |
984 |
995 |
1005 |
1011 |
| BB-Height to Hub |
72 |
72 |
69 |
69 |
67 |
67 |
| Protrusion height – 80mm |
742 |
757 |
779 |
798 |
818 |
835 |
| Reach |
389 |
389 |
389 |
398 |
403 |
405 |
| Stack |
514 |
524 |
542 |
563 |
580 |
594 |
Ergonomics
|
50 cm |
52 cm |
54 cm |
56 cm |
58 cm |
60 cm |
| Stem length |
90 |
90 |
100 |
100 |
110 |
120 |
| Angle stem |
-6° |
-6° |
-6° |
-6° |
-6° |
-6° |
| Handlebar width |
400 |
400 |
420 |
420 |
440 |
440 |
| Crank length |
175 |
175 |
| Length seat post |
350 |
350 |
350 |
350 |
350 |
350 |
| Diameter tire maximum |
691 |
691 |
691 |
691 |
691 |
691 |
| Width tire maximum |
28 |
28 |
28 |
28 |
28 |
28 |
