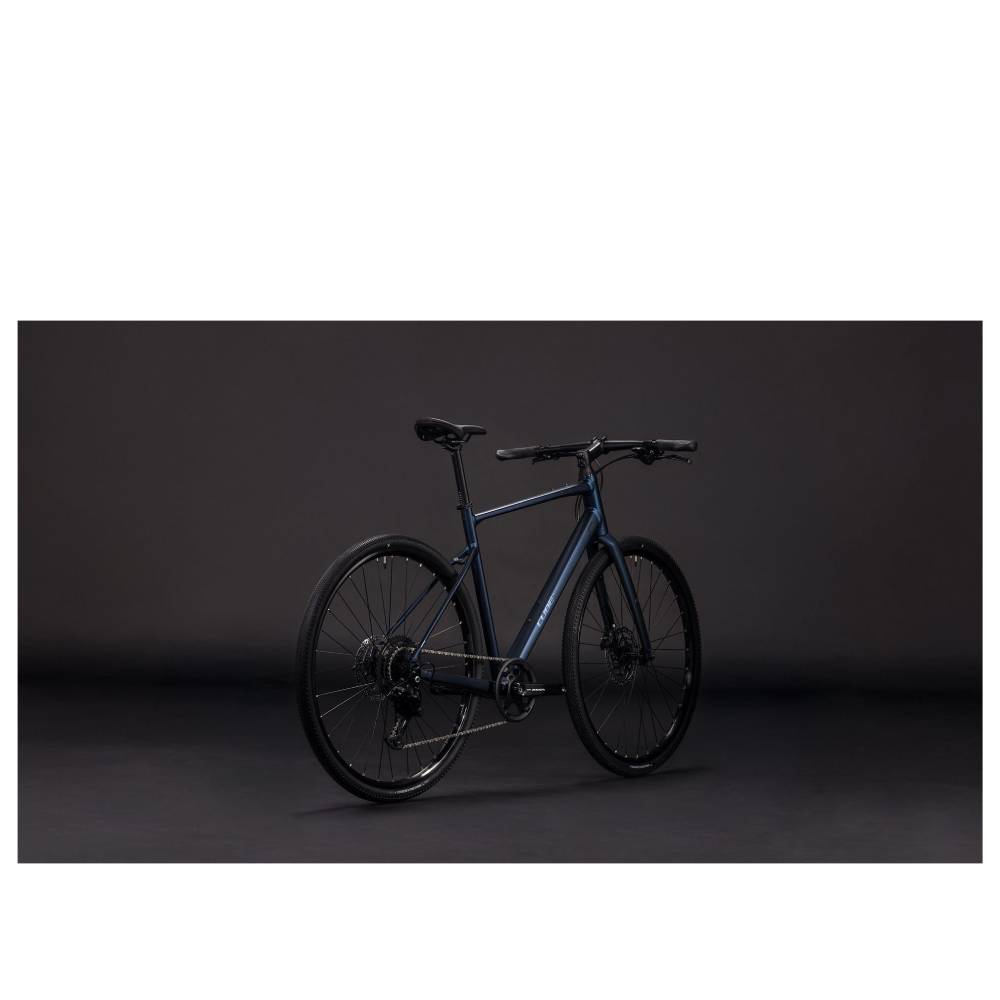

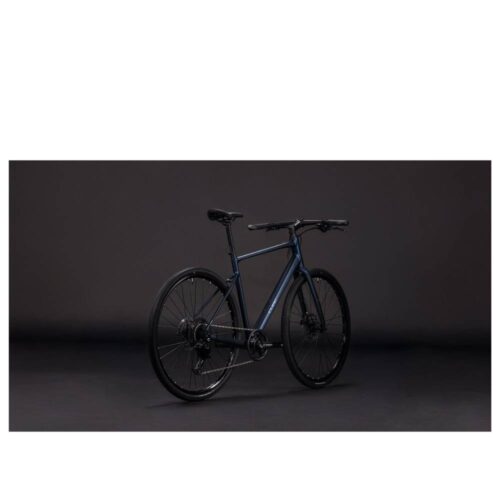

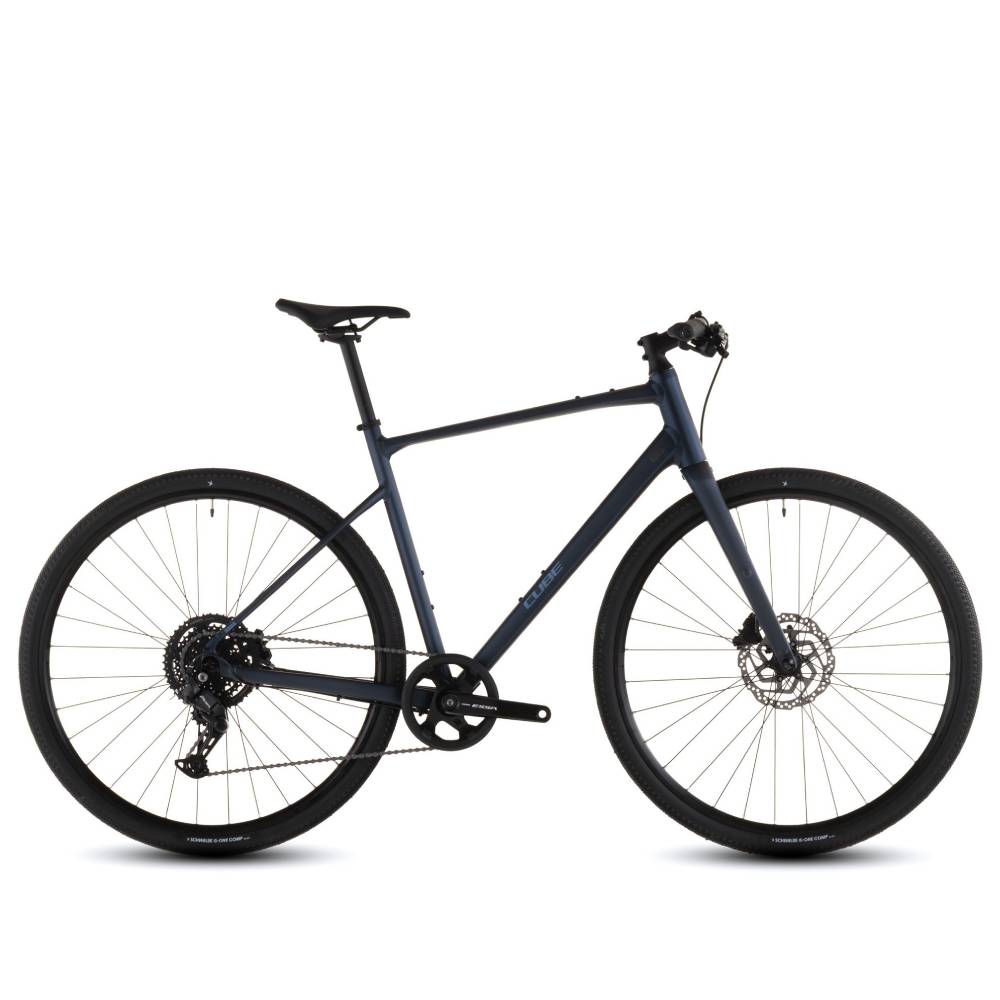

Cube Nulane ONE indigoblue´n´black – 2026

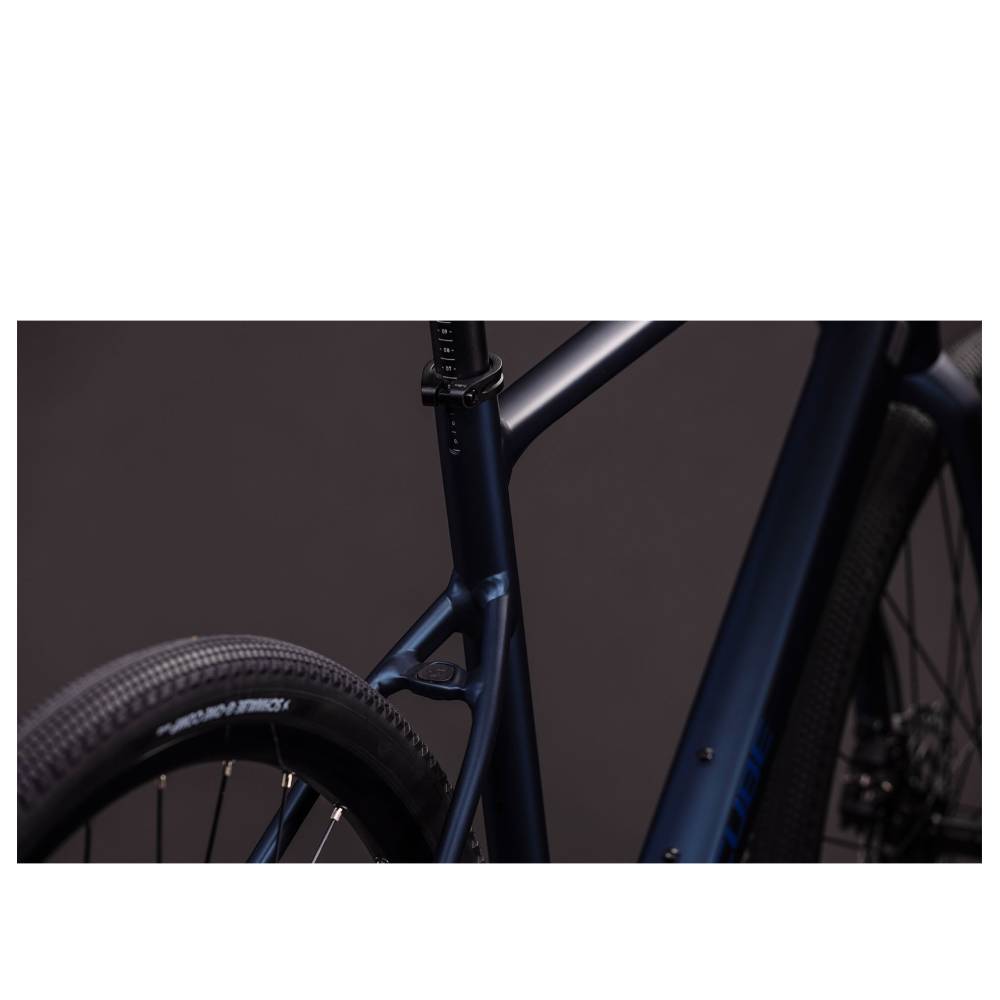

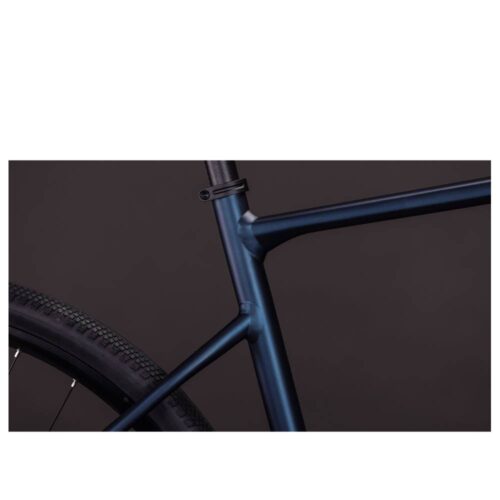

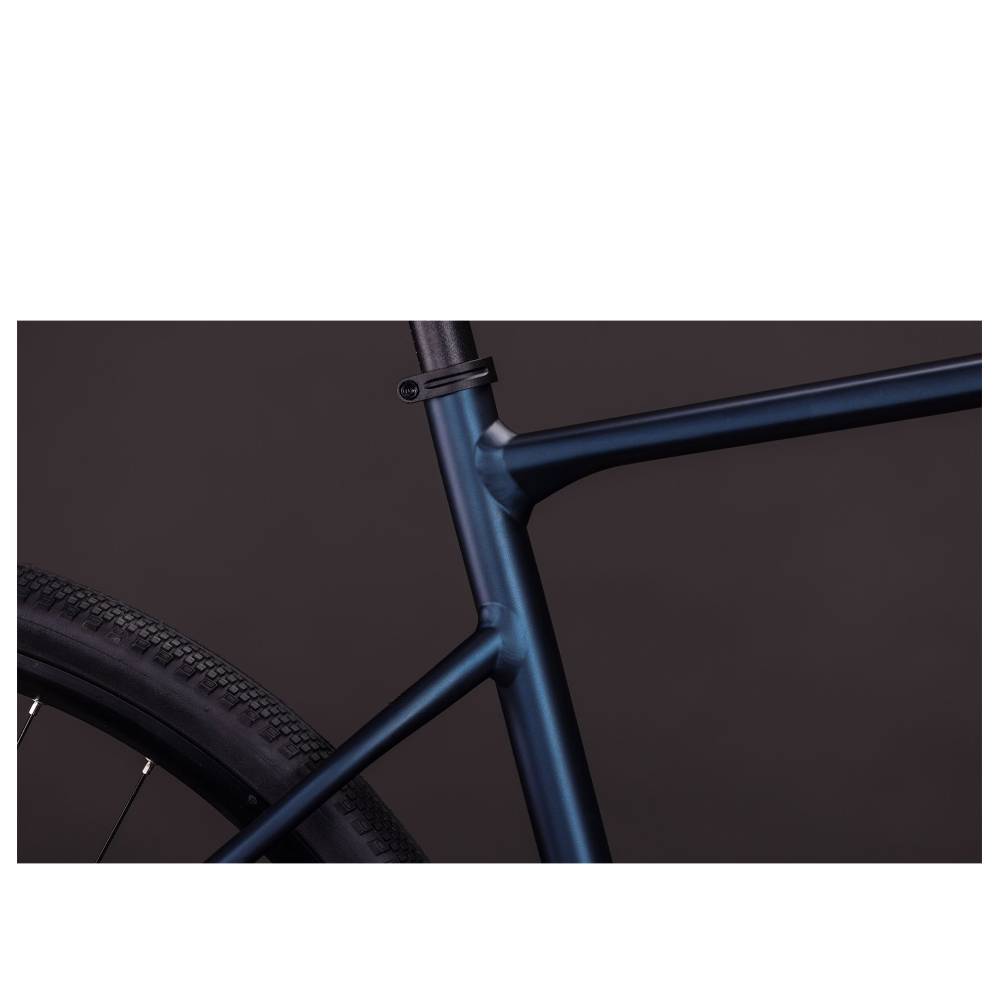

- frame Aluminium T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, Fender & Rack Option, QR
- size Classic: 50cm, 53cm, 56cm, 58cm, 61cm

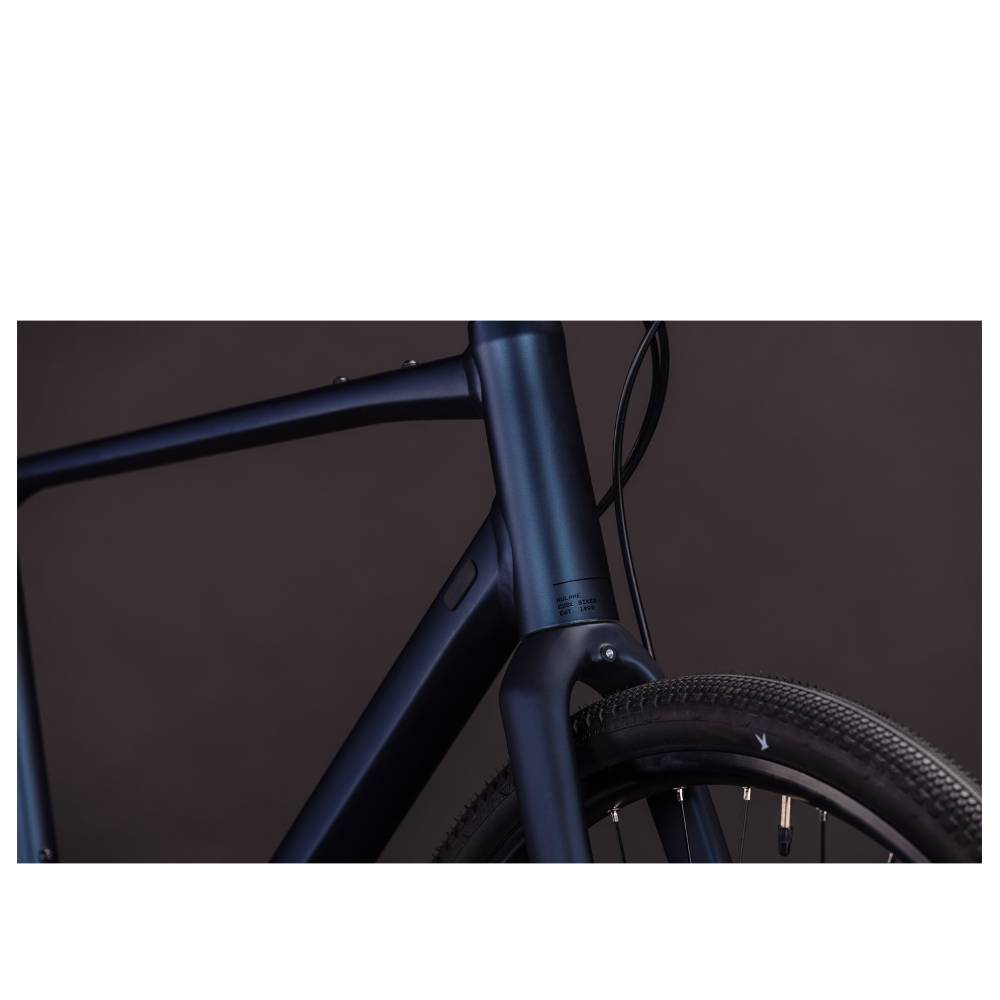

- Rigid fork CUBE Nuroad, Full Carbon, Flat Mount Disc, 1 1/8 – 1 1/4 Tapered, Fender & Lowrider Mounts, QR
- brake system Shimano BR-MT200/UR300, Hydr. Disc, Flat Mount, PM/FM (180)
- rear derailleur Shimano Essa RD-U2000-GS, 8-Speed
- shifters Shimano SL-M315, Rapidfire-Plus
- bottom bracket Thun Paso-ML, 68mm, BSA

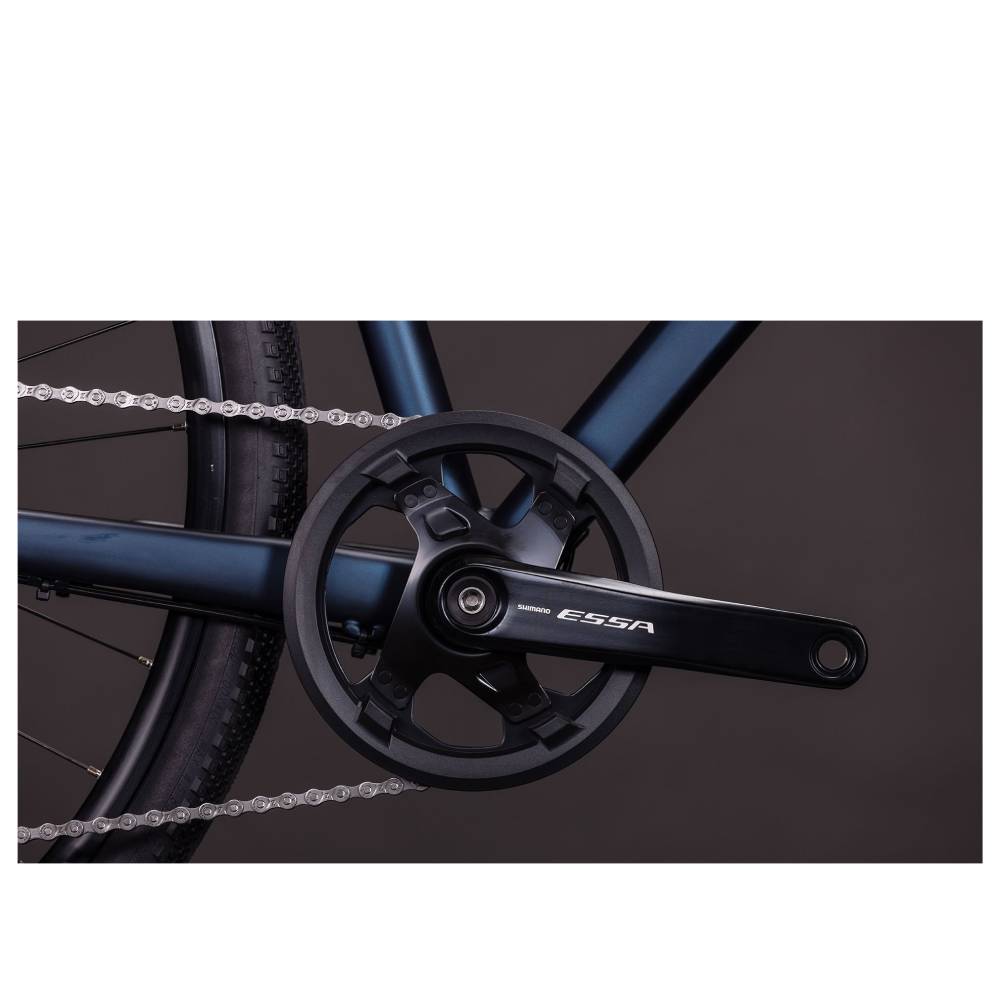

- crankset Shimano Essa FC-U2000-1, 40T
- chain KMC Z51

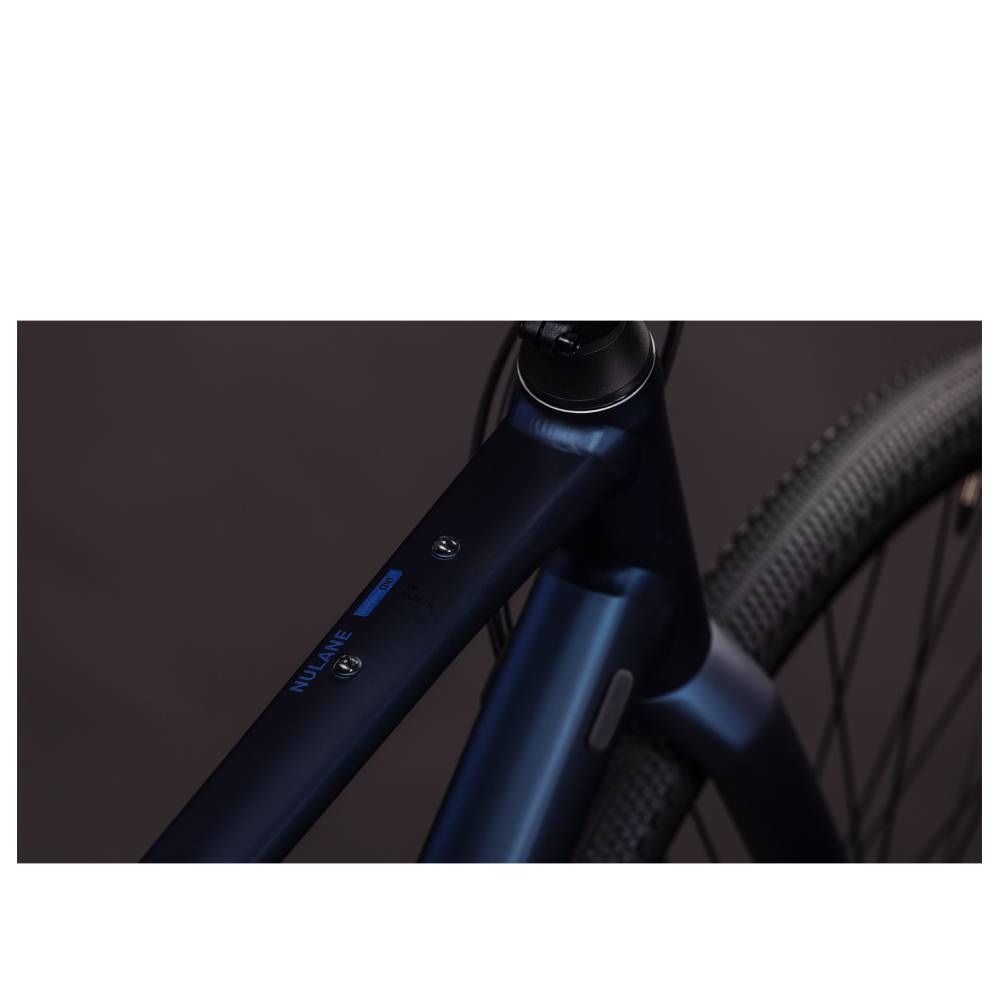

- headset VP Semi-Integrated, 1 1/8″, Bottom Integrated, 1 1/4″
- Stem CUBE Performance Stem SLX, FPI-Link, 31.8mm
- handlebar CUBE Flat Race Bar, 660mm
- grips ACID Travel
- wheelset ACID EX 25, 32H, Disc, Tubeless Ready
- Front Hub Shimano HB-QC300, QR, Centerlock
- Rear Hub Shimano FH-QC300-HM, QR, Centerlock
- tyres Schwalbe G-One Comp, ActiveL, 40-622
- saddle ACID Nuance Lite
- seat post CUBE Performance Post, 27.2mm
- seat clamp CUBE Screwlock, 31.8mm
- pedals ACID PP Trekking
- colour indigoblue´n´black
- weight 11,6 kg
- Structural Weight 130 kg
Geometry
|
50 cm |
53 cm |
56 cm |
58 cm |
61 cm |
| Seat tube |
460 |
490 |
520 |
550 |
580 |
| Top Tube Horizontal |
542 |
566 |
574 |
593 |
612 |
| Seat angle |
74° |
73° |
73° |
73° |
73° |
| Head tube angle |
70.5° |
71.5° |
72° |
72° |
72° |
| Chainstays |
442 |
442 |
442 |
442 |
442 |
| Head tube |
137 |
157 |
172 |
197 |
227 |
| Wheelbase |
1044 |
1049 |
1052 |
1072 |
1091 |
| BB-Height to Hub |
60 |
60 |
60 |
60 |
60 |
| Protrusion height – 80mm |
753 |
780 |
804 |
831 |
860 |
| Reach |
385 |
391 |
395 |
406 |
416 |
| Stack |
548 |
571 |
587 |
611 |
640 |
Ergonomics
|
50 cm |
53 cm |
56 cm |
59 cm |
62 cm |
| Length seat post |
350 |
350 |
350 |
350 |
350 |
| Diameter seatpost |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
| Angle stem |
6° |
6° |
6° |
6° |
6° |
| Crank length |
170 |
170 |
170 |
175 |
175 |
| Diameter tire maximum |
711 |
711 |
711 |
711 |
711 |
| Width tire maximum |
42 |
42 |
42 |
42 |
42 |
| Stem length |
90 |
90 |
90 |
90 |
90 |
| Handlebar width |
660 |
660 |
660 |
660 |
660 |
