- headset VP Semi-Integrated, 1 1/8″, Bottom Integrated, 1 1/4″
- frame Aluminium Superlite Trekking Sport, Flat Mount Disc, 12x142mm, AXH
- size Classic: 50cm, 53cm, 56cm, 59cm, 62cm
- Rigid fork CUBE TS Disc, Full Carbon, Taper, Flat Mount, 12x100mm
- brake system Tektro HD-R280, Hydr. Disc, Flat Mount (160/160)
- rear derailleur Shimano Cues RD-U6020-SGS, 10-Speed
- shifters Shimano Cues SL-U6000, Rapidfire-Plus
- front derailleur Shimano Cues FD-U6010, Top-Swing, 31.8mm
- bottom bracket Shimano BB-MT500PA, 92mm Pressfit
- crankset Shimano Cues FC-U6000, 46x30T, BB-MT500PA
- cassette Shimano Cues CS-LG400, 11-39T
- chain KMC xGlide
- Stem CUBE Performance Stem Pro, 31.8mm
- handlebar CUBE Flat Race Bar, 660mm
- grips ACID Travel
- wheelset CUBE OR 2.5 Disc, Tubeless Ready
- tyres Schwalbe G-One Allround, Kevlar, 40-622

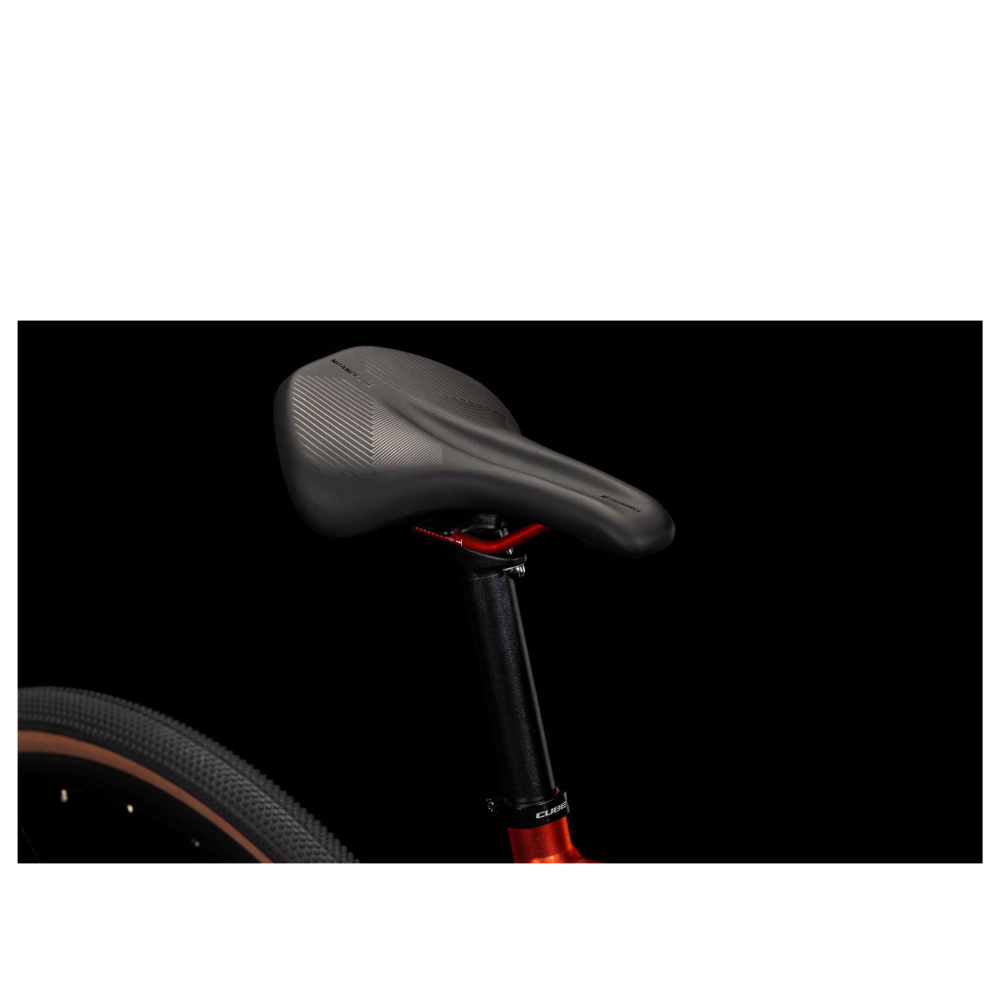

- saddle ACID Nuance Lite
- seat post CUBE Performance Post, 27.2mm
- seat clamp CUBE Screwlock, 31.8mm
- pedals CUBE PP MTB
- colour fireorange´n´black
- weight 11,1 kg
- Structural Weight 115 kg
Geometry
|
50 cm |
53 cm |
56 cm |
59 cm |
62 cm |
| Seat tube |
460 |
490 |
520 |
550 |
580 |
| Top Tube Horizontal |
542 |
566 |
574 |
593 |
612 |
| Seat angle |
74° |
73° |
73° |
73° |
73° |
| Head tube angle |
70.5° |
71.5° |
72° |
72° |
72° |
| Chainstays |
442 |
442 |
442 |
442 |
442 |
| Head tube |
137 |
157 |
172 |
197 |
227 |
| Wheelbase |
1044 |
1049 |
1052 |
1072 |
1091 |
| BB-Height to Hub |
60 |
60 |
60 |
60 |
60 |
| Protrusion height – 80mm |
753 |
780 |
804 |
831 |
860 |
| Reach |
385 |
391 |
395 |
406 |
416 |
| Stack |
548 |
571 |
587 |
611 |
640 |
Ergonomics
|
50 cm |
53 cm |
56 cm |
59 cm |
62 cm |
| Length seat post |
350 |
350 |
350 |
350 |
350 |
| Diameter seatpost |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
| Angle stem |
6° |
6° |
6° |
6° |
6° |
| Crank length |
170 |
170 |
170 |
175 |
175 |
| Diameter tire maximum |
711 |
711 |
711 |
711 |
711 |
| Width tire maximum |
42 |
42 |
42 |
42 |
42 |
| Stem length |
90 |
90 |
90 |
90 |
90 |
| Handlebar width |
660 |
660 |
660 |
660 |
660 |
