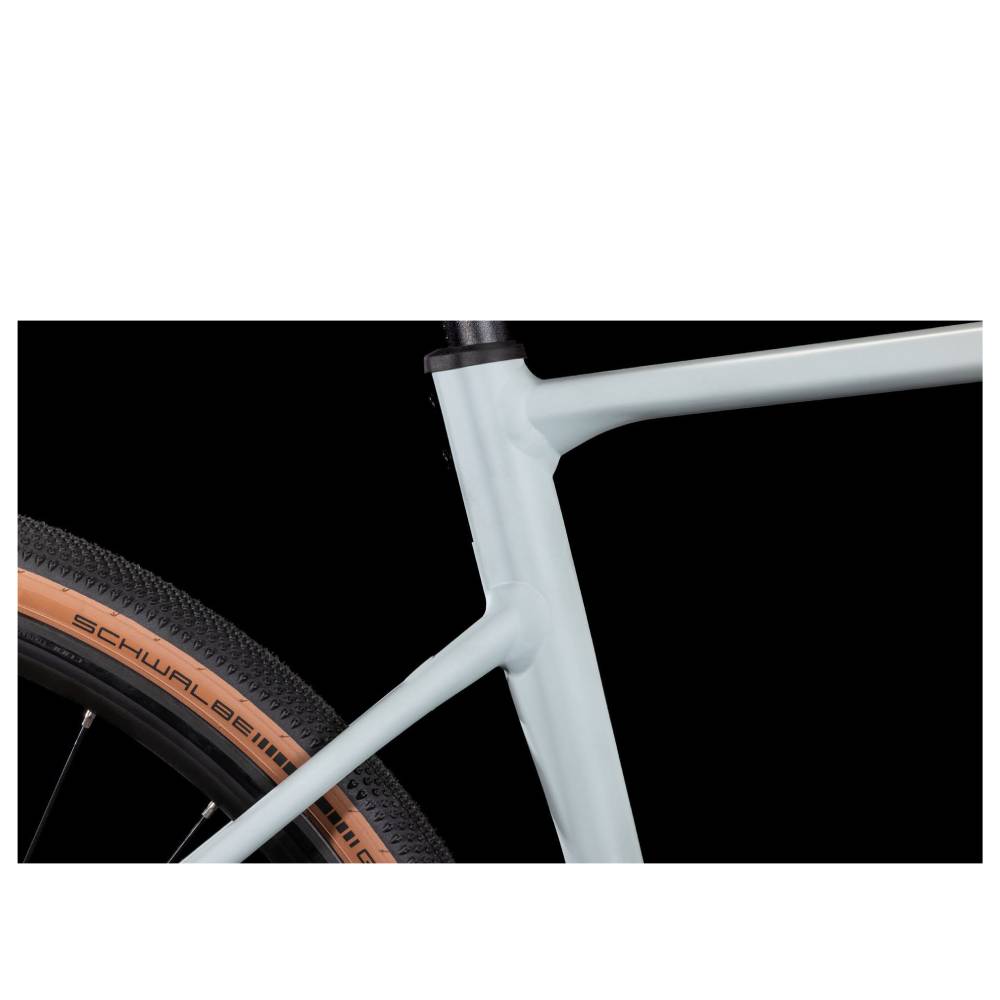

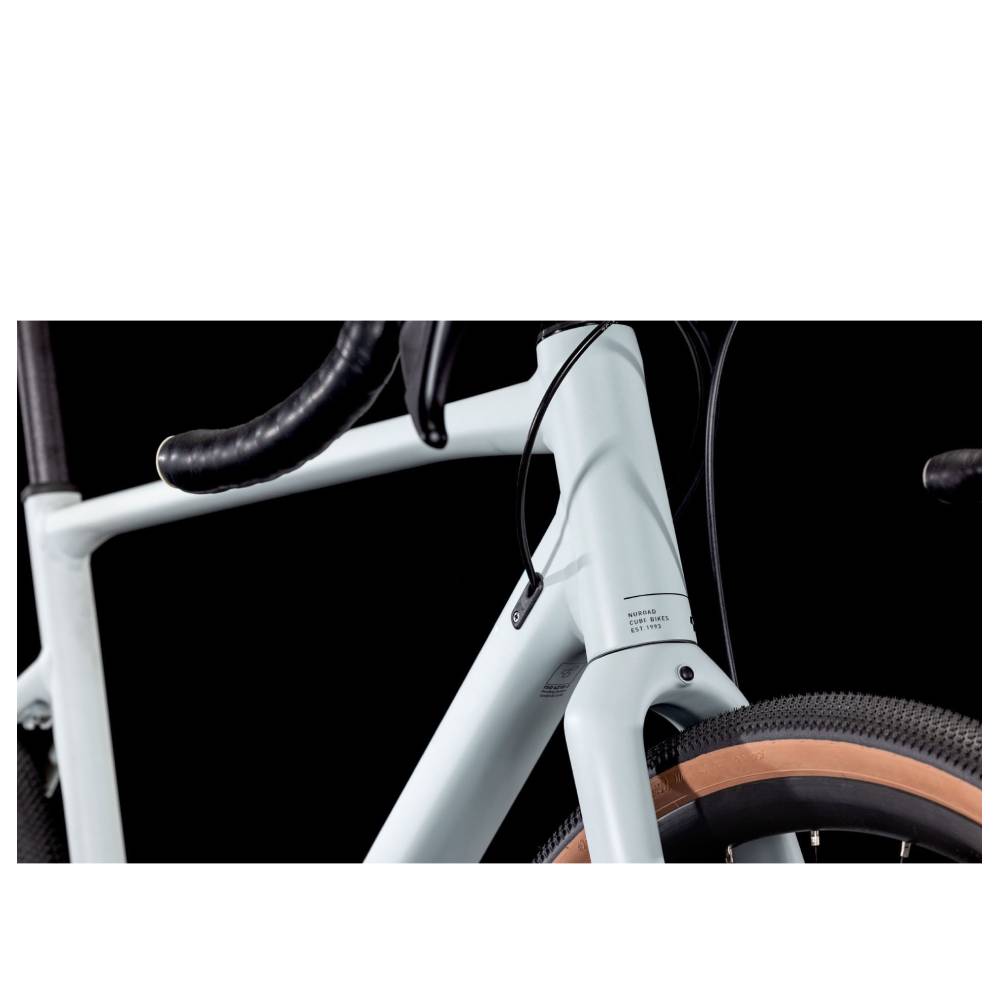

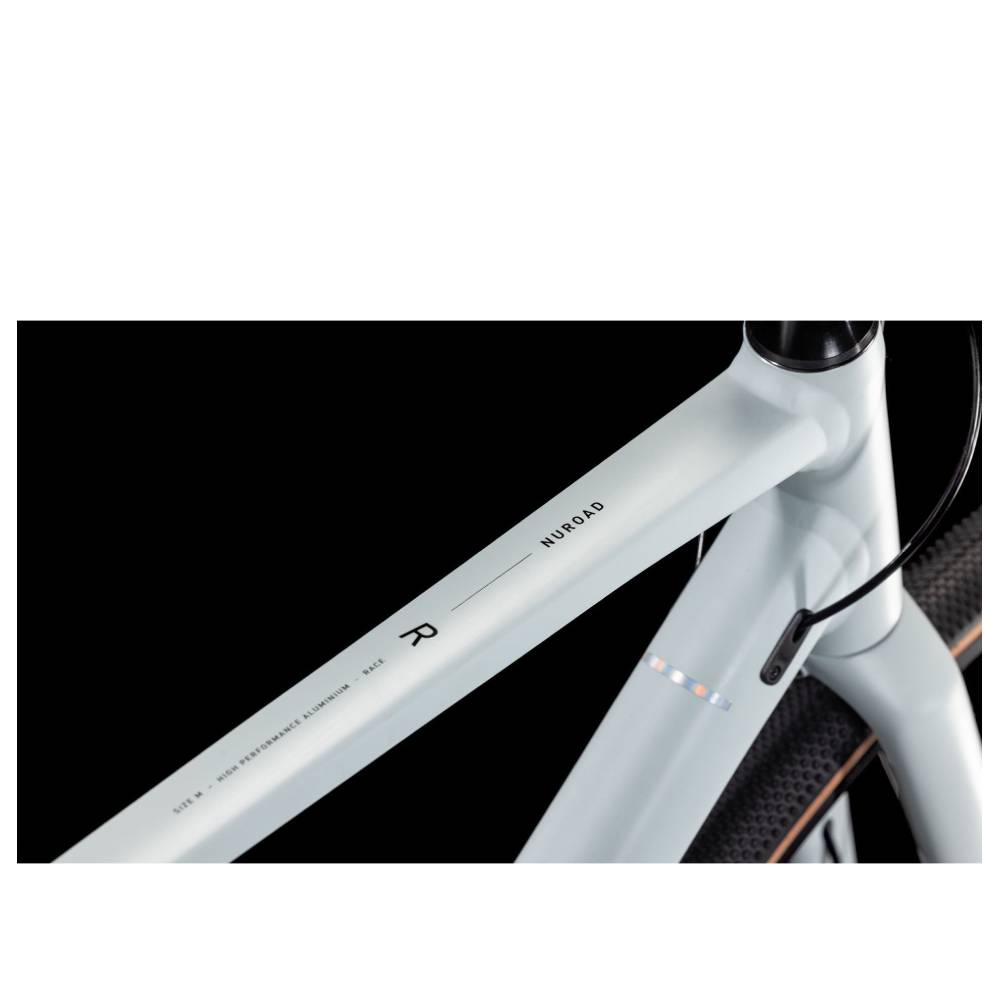

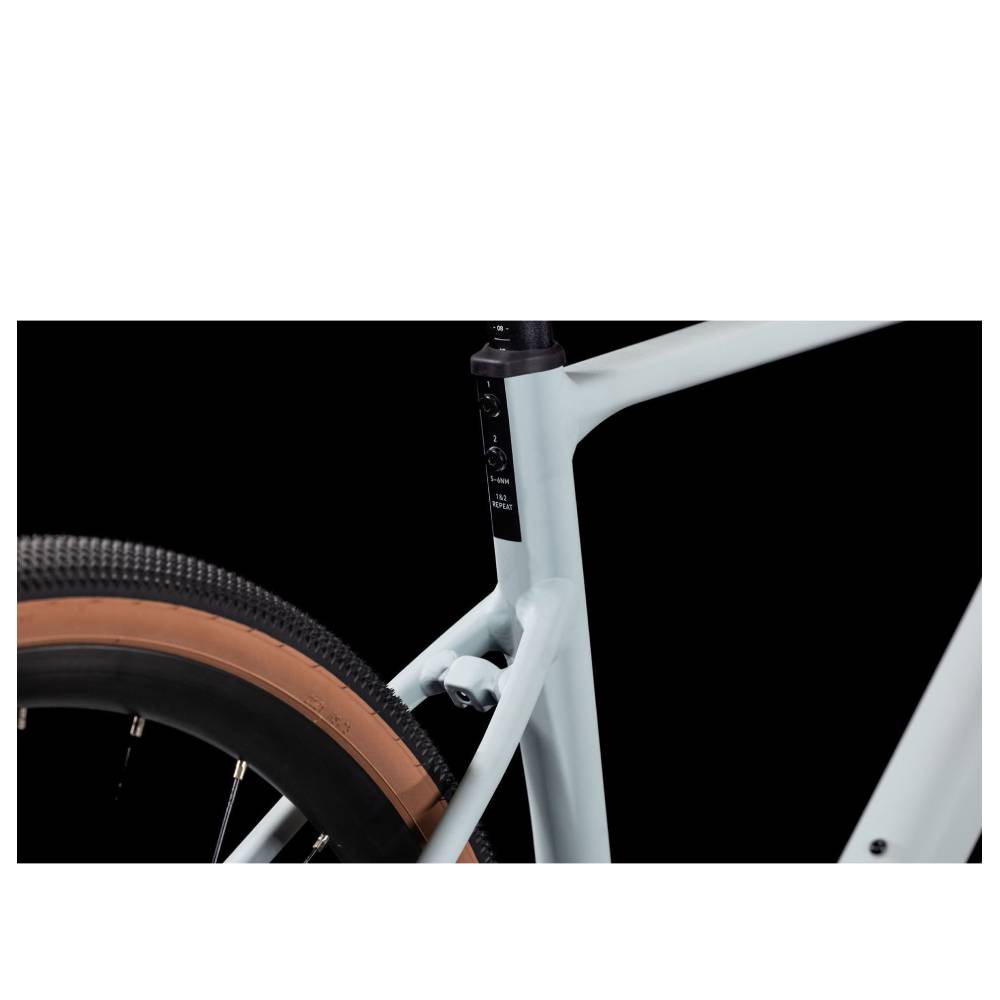

- frame Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, Fender & Rack Option, 12x142mm, AXH
- size Size Split: 27.5: XXS (46cm) // 28: XS (50cm), S (53cm), M (56cm), L (58cm), XL (61cm)
- Rigid fork CUBE Nuroad Flat Mount Disc, Full Carbon, 1 1/8″ – 1 1/4″ Tapered, Fender & Lowrider Mounts, 12x100mm
- shift/ brake levers Shimano GRX ST-RX610
- brake system Shimano GRX BR-RX410, Hydr. Disc Brake, Flat Mount (160/160)
- rear derailleur Shimano GRX RD-RX820, Direct Mount, 12-Speed
- front derailleur Shimano GRX FD-RX820-F
- bottom bracket Shimano BB-RS500PB, Pressfit

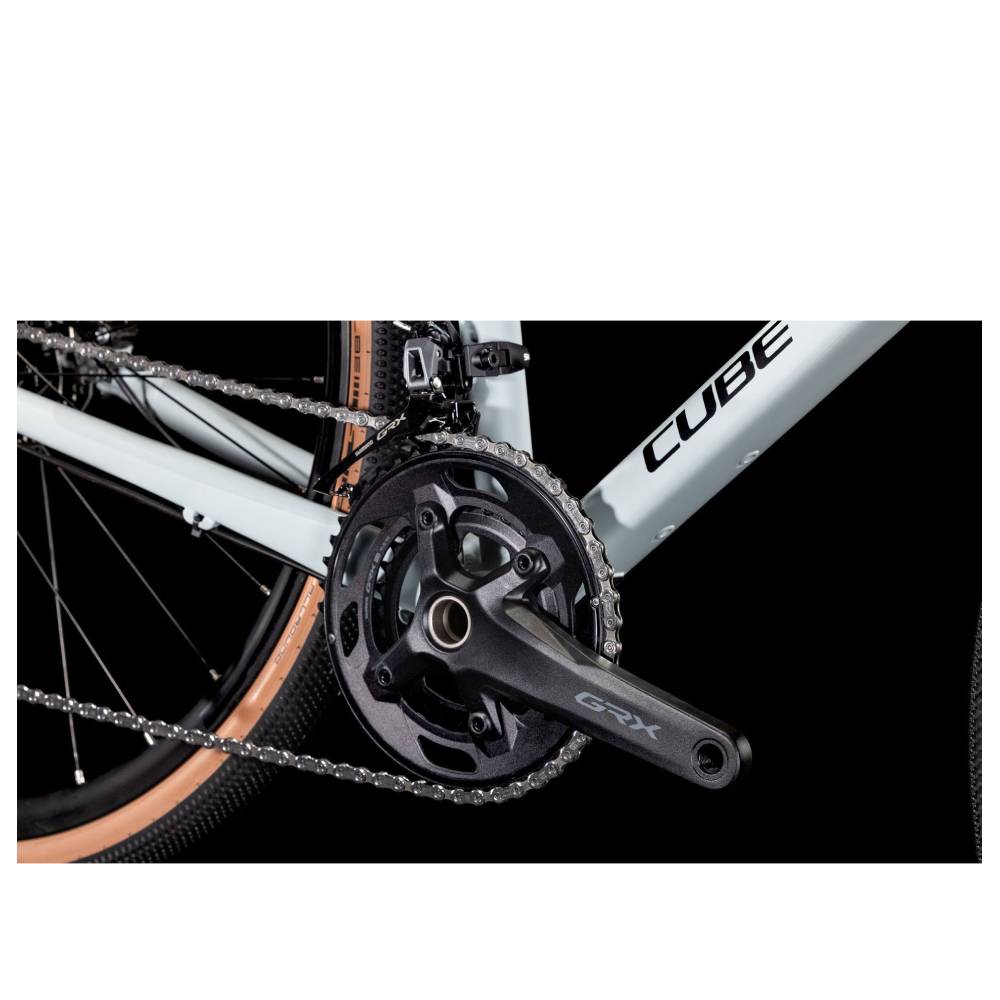

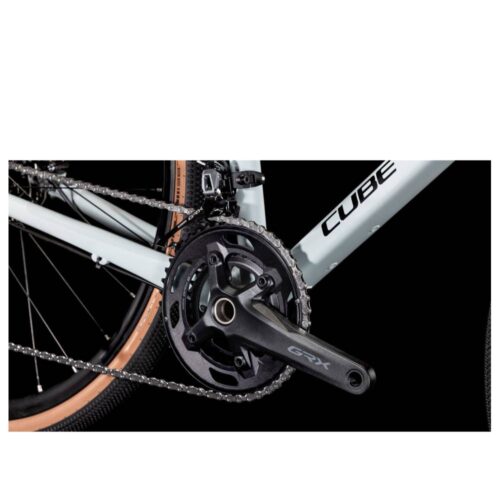

- crankset Shimano GRX FC-RX610, 46x30T
- cassette Shimano 105 CS-HG710, 11-36T
- chain Shimano CN-M6100
- headset VP Z-t, Top Zero-Stack 1 1/8″ (OD 44mm), Bottom Integrated 1 1/4″
- Stem CUBE Performance Stem, 31.8mm
- handlebar CUBE Gravel Race Bar
- handlebar tape ACID Bartape CX
- wheelset CUBE GR 2.5 Disc, Tubeless Ready
- tyres Schwalbe G-One Allround, Kevlar, 40-584 / 40-622
- saddle Natural Fit Venec Lite
- seat post CUBE Performance Post, 27.2mm
- seat clamp CUBE Nuroad Integrated Seat Clamp
- colour haze´n´gloss
- weight 10,3 kg
- Structural Weight 115 kg
Geometry
| Slack/Moderate |
XXS |
XS |
S |
M |
L |
XL |
| Seat tube |
408 |
447 |
477 |
507 |
527 |
557 |
| Top Tube Horizontal |
500 |
518 |
537 |
560 |
575 |
592 |
| Seat angle |
75° |
75.8° |
74.7° |
73.8° |
73° |
73° |
| Head tube angle |
68° |
69° |
70° |
71.4° |
72° |
72.5° |
| Chainstays |
421 |
440 |
440 |
440 |
440 |
440 |
| Head tube |
100 |
113 |
135 |
165 |
185 |
208 |
| Wheelbase |
1007 |
1044 |
1045 |
1044 |
1046 |
1058 |
| BB-Height to Hub |
61 |
70 |
70 |
70 |
70 |
70 |
| Protrusion height – 80mm |
691 |
749 |
776 |
808 |
828 |
855 |
| Reach |
369 |
384 |
386 |
389 |
389 |
398 |
| Stack |
488 |
530 |
554 |
588 |
610 |
633 |
Ergonomics
|
XXS |
XS |
S |
M |
L |
XL |
| Length seat post |
350 |
350 |
350 |
350 |
350 |
350 |
| Diameter seatpost |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
| Angle stem |
6° |
6° |
6° |
6° |
6° |
6° |
| Crank length |
170 |
170 |
170 |
172.5 |
172.5 |
175 |
| Diameter tire maximum |
682 |
721 |
721 |
721 |
721 |
721 |
| Width tire maximum |
46 |
45 |
45 |
45 |
45 |
45 |
| Stem length |
60 |
80 |
80 |
90 |
100 |
100 |
| Handlebar width |
400 |
400 |
420 |
440 |
460 |
460 |
