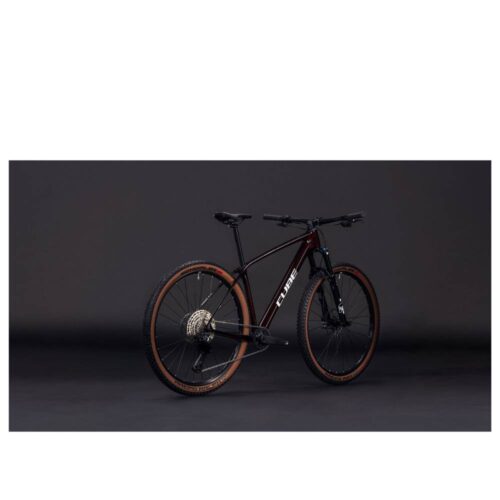

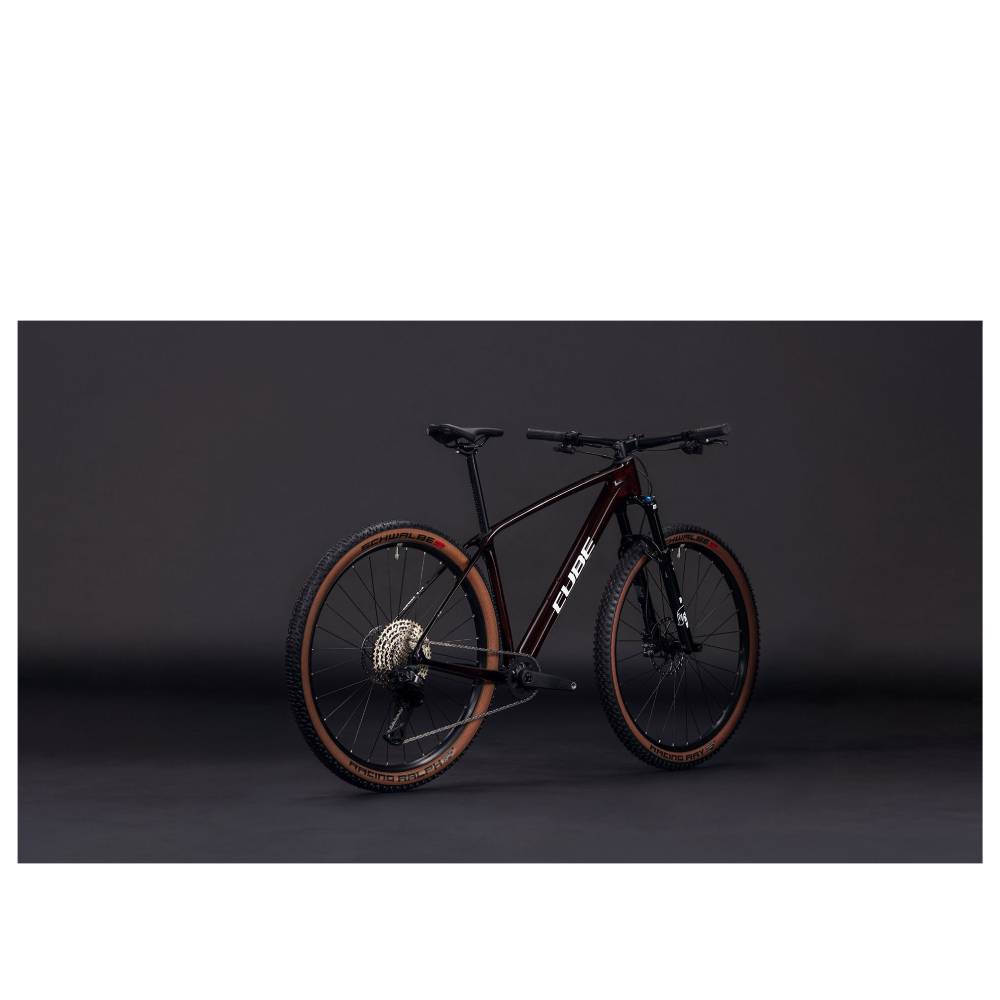

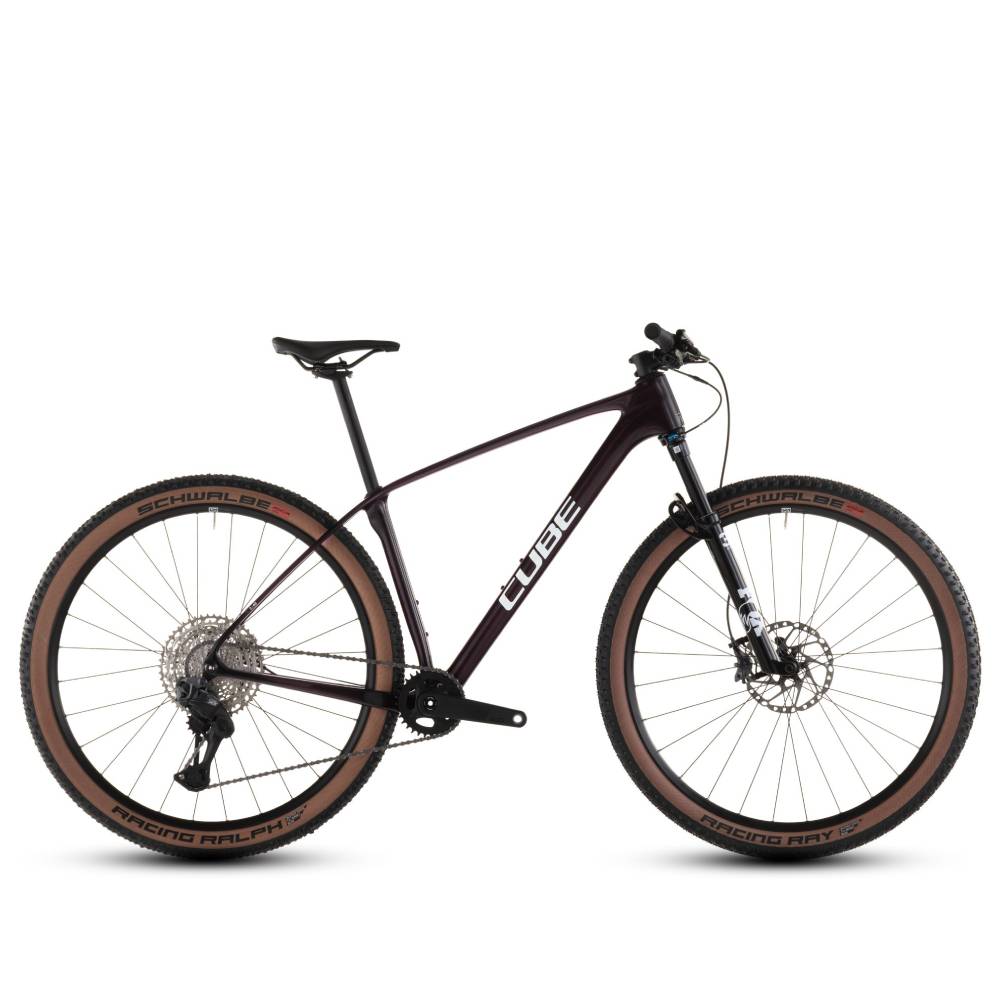

Cube Reaction C:62 Race liquidred ‘n’ white – 2026

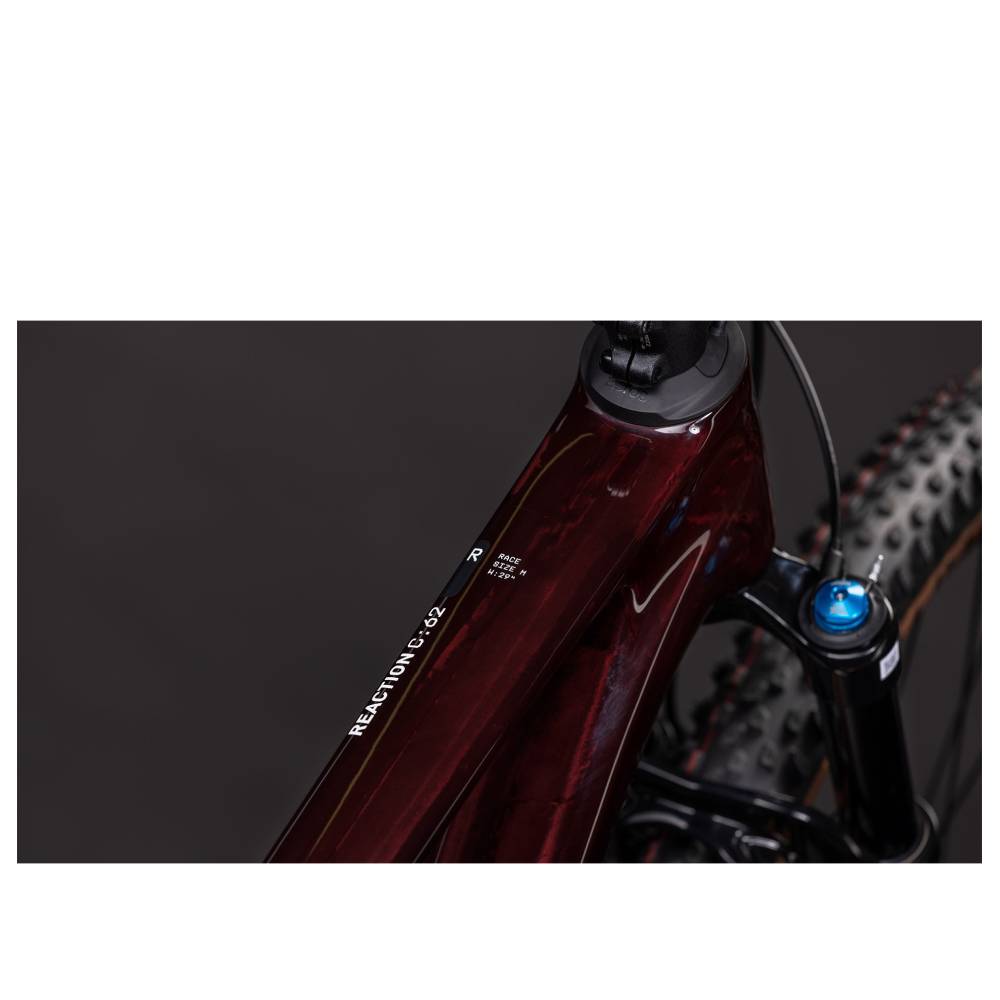

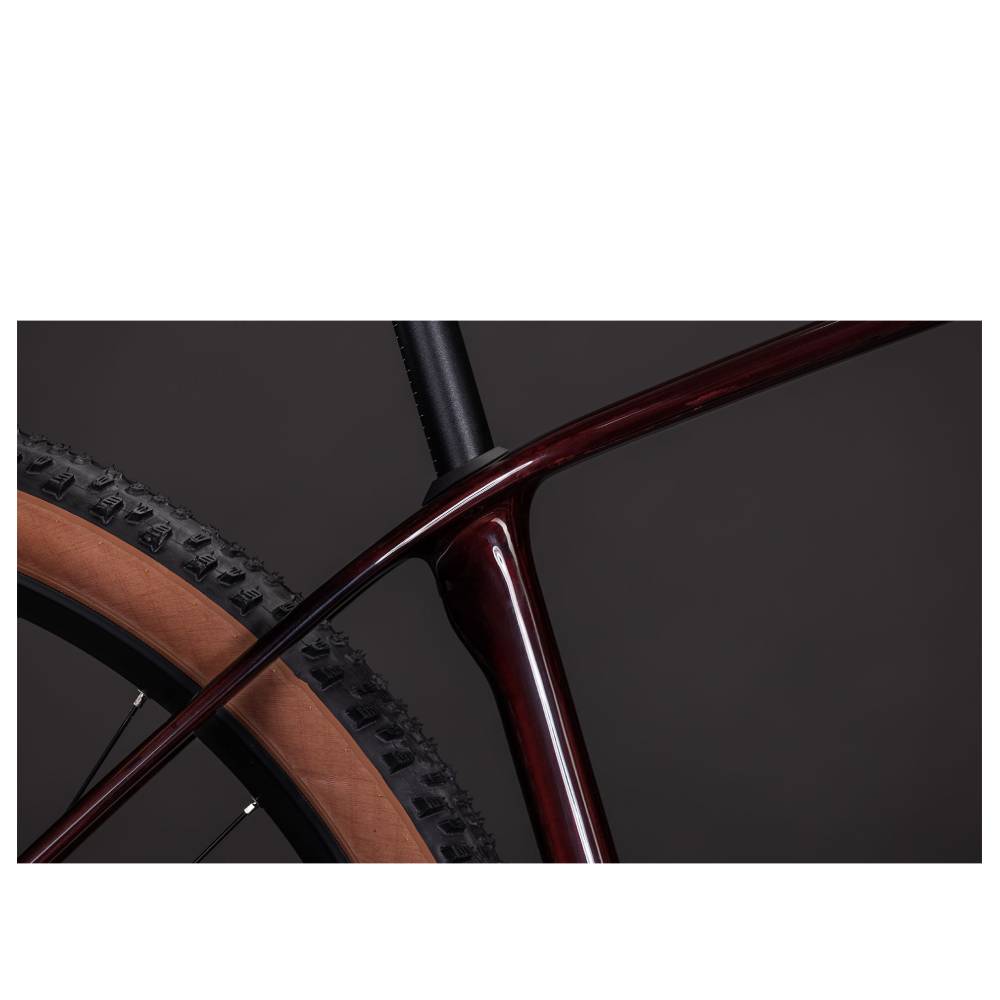

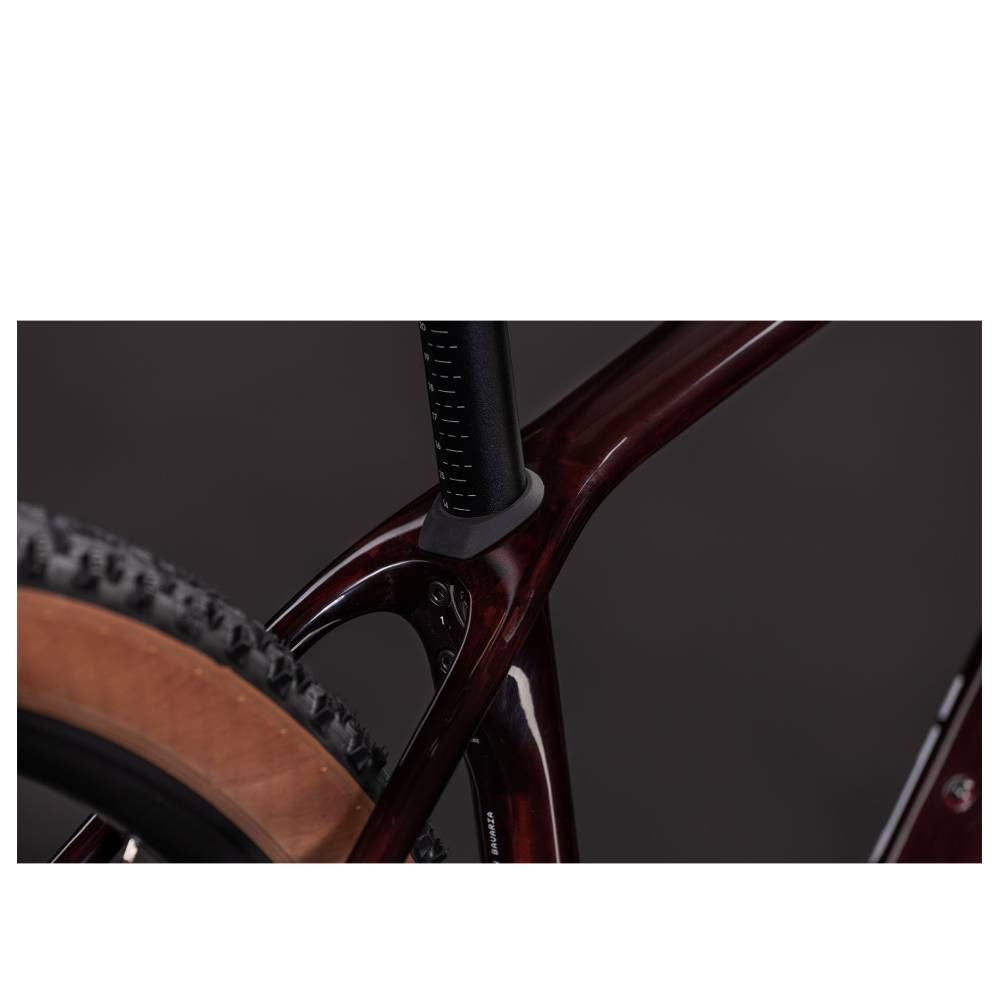

- frame C:62® Monocoque Advanced Twin Mold Technology, Boost 12x148mm, Full Internal Cable Routing, Dropper Post ready, UDH™
- size 29: S, M, L, XL, XXL

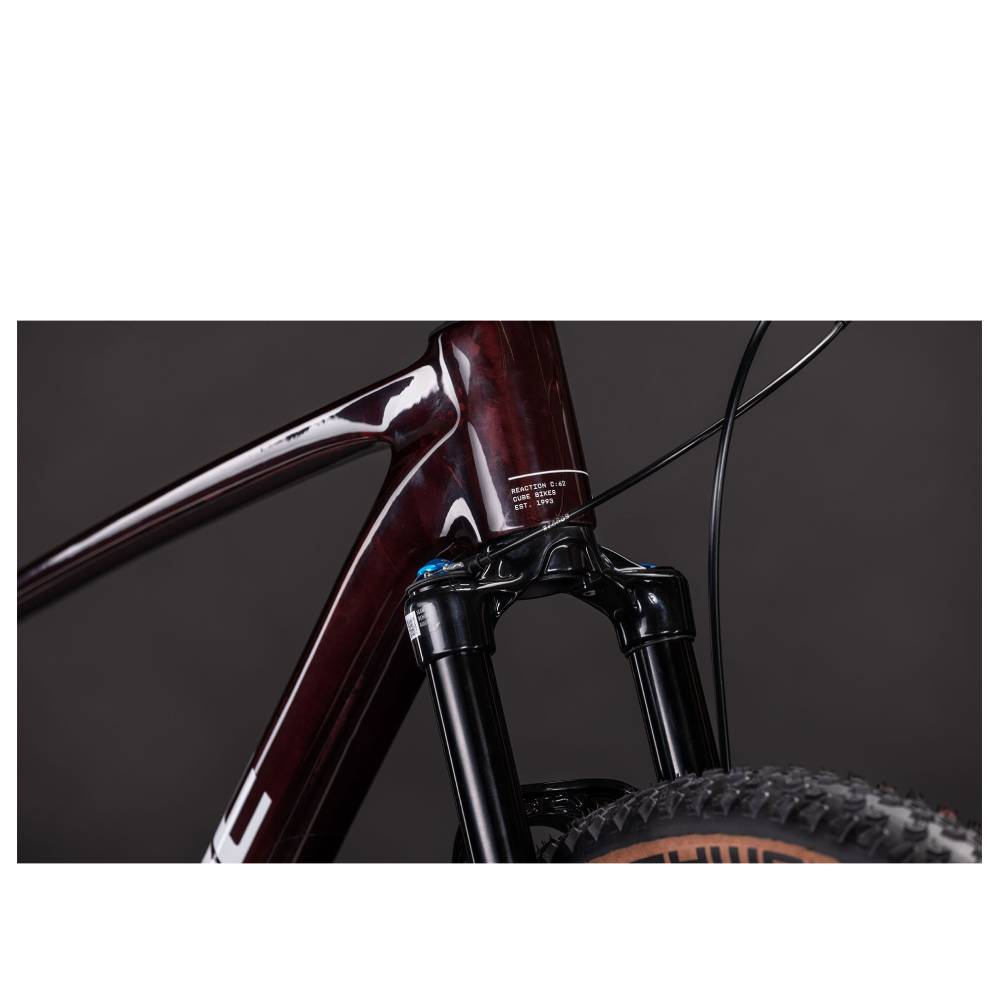

- Suspension fork Fox 32 SC Float Performance, 2-Position Remote, Tapered, 15x110mm, 100mm
- brake system Shimano XT BR-M8100, Hydr. Disc Brake (180/160)

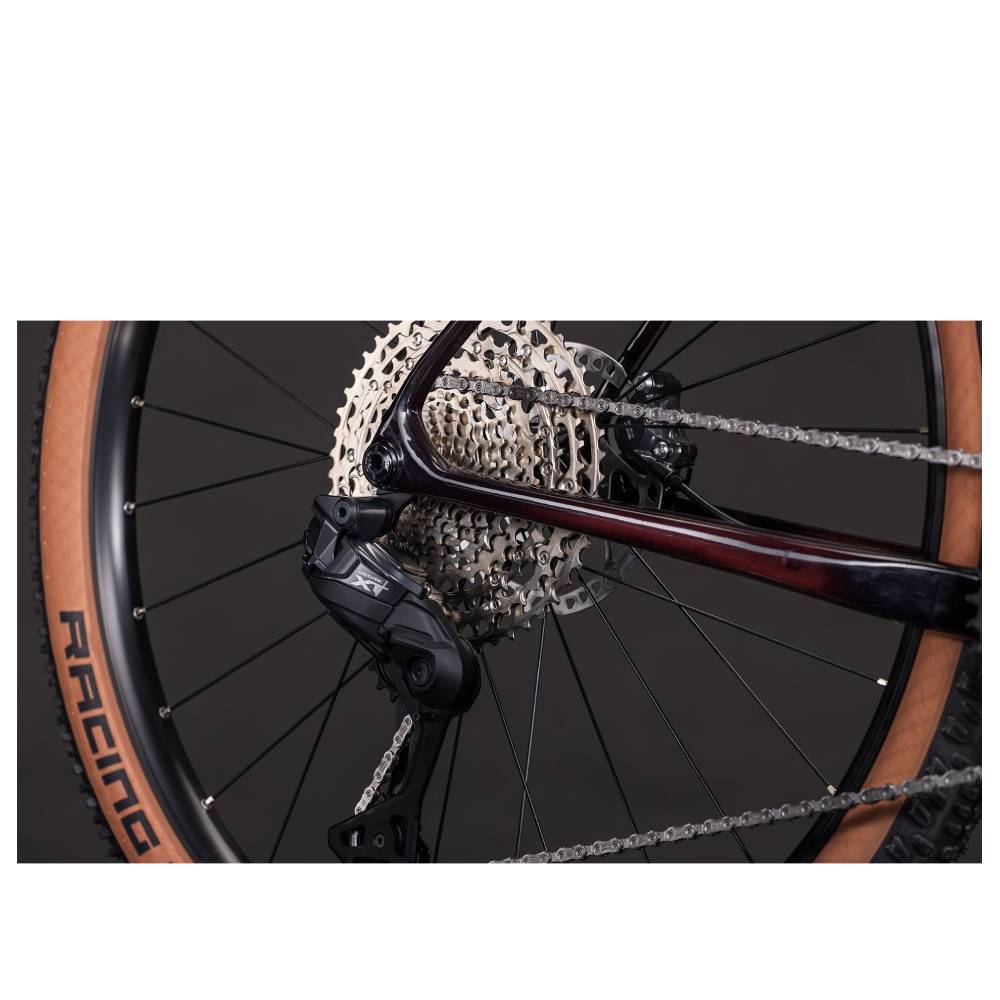

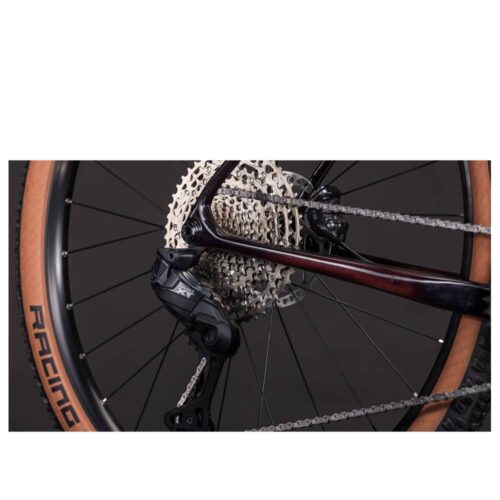

- rear derailleur Shimano XT Di2 RD-M8250-SGS, ShadowPlus, 12-Speed, Electronic Shifting System
- shifters Shimano Deore Di2 SW-M6250-R
- bottom bracket Shimano BB-MT500PA, 92mm Pressfit
- crankset ACID MTB Pro Carbon, 30mm Axle, 32T
- cassette Shimano Deore CS-M6100, 10-51T
- chain Shimano CN-M6100
- headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
- Stem Newmen Evolution 318.4, 31.8mm
- handlebar Newmen Evolution SL 318.10, 760mm
- grips ACID React Pro
- wheelset Newmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready CUBE Engineered By Newmen, 15mm, Boost, Centerlock
- front tyre Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25
- rear tyre Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25
- saddle ACID Nuance Lite
- seat post Newmen Evolution, 27.2mm
- colour liquidred ‘n’ white
- weight 10,6 kg
- Structural Weight 115 kg
Geometry
|
S |
M |
L |
XL |
XXL |
| Seat tube |
370 |
420 |
450 |
510 |
560 |
| Top Tube Horizontal |
578 |
598 |
618 |
638 |
658 |
| Seat angle |
74° |
74° |
74° |
74° |
74° |
| Head tube angle |
68.5° |
68.5° |
68.5° |
68.5° |
68.5° |
| Chainstays |
426 |
426 |
426 |
426 |
426 |
| Head tube |
97 |
107 |
117 |
127 |
142 |
| Wheelbase |
1088 |
1109 |
1130 |
1151 |
1173 |
| BB-Height to Hub |
65 |
65 |
65 |
65 |
65 |
| Protrusion height – 80mm |
767 |
801 |
821 |
859 |
866 |
| Reach |
405 |
422 |
439 |
456 |
472 |
| Stack |
612 |
621 |
630 |
639 |
653 |
Ergonomics
|
S |
M |
L |
XL |
XXL |
| Length seat post |
400 |
400 |
430 |
430 |
430 |
| Diameter seatpost |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
| Angle stem |
6° |
6° |
6° |
6° |
6° |
| Crank length |
170 |
175 |
175 |
175 |
175 |
| Diameter tire maximum |
749 |
749 |
749 |
749 |
749 |
| Width tire maximum |
60 |
60 |
60 |
60 |
60 |
| Stem length |
60 |
70 |
70 |
70 |
70 |
| Handlebar width |
760 |
760 |
760 |
760 |
760 |
