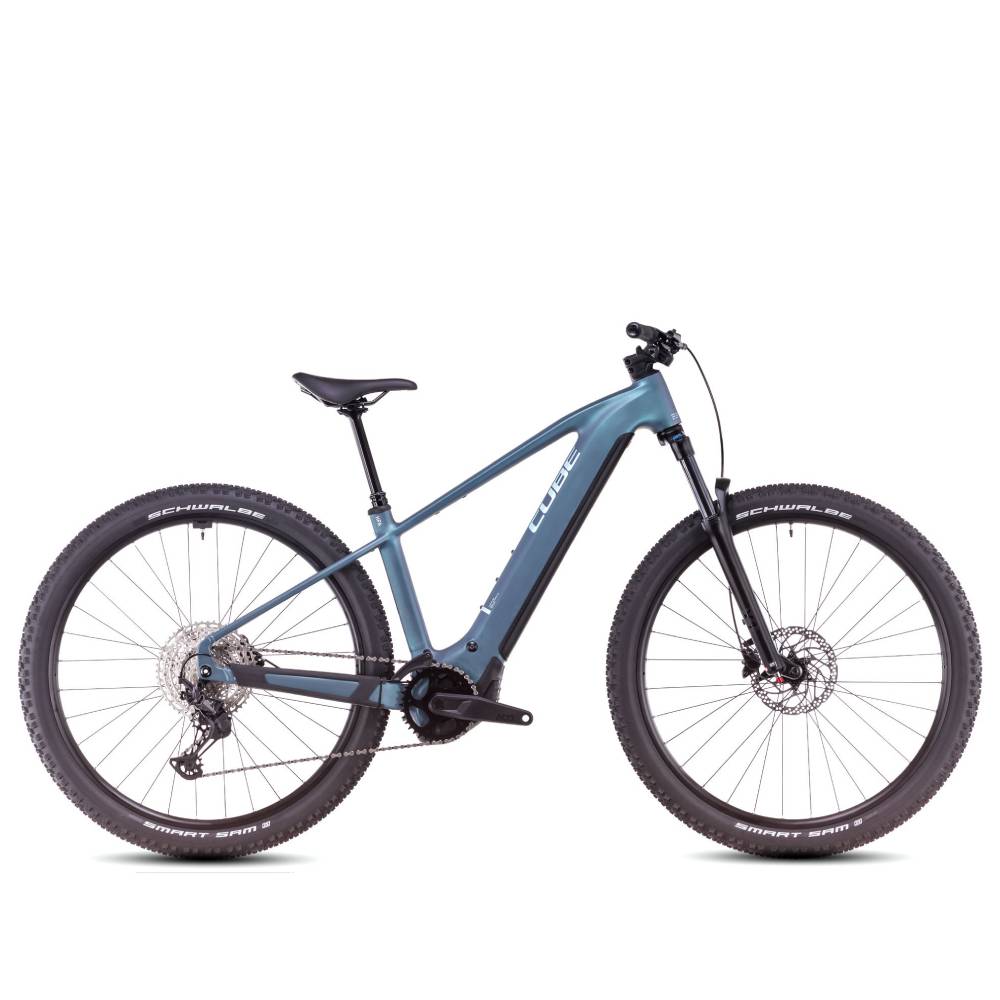

Cube Reaction Hybrid Pro 600 smaragdgrey´n´prism – 2025
- headset ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
- handlebar CUBE Rise Trail Bar 35
- frame Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
- size Classic: Size Split: 27.5: S // 29: M L XL XXL
- drive unit Bosch Drive Unit Performance Line CX, Smart System
- Remote Bosch Purion 200 with Integrated Display
- battery Bosch PowerTube 600wh
- charger Bosch 2A
- Suspension fork SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27,5: 100mm)
- brake system Shimano BR-MT200, Hydr. Disc Brake (180)
- rear derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
- shifters Shimano Deore SL-M6100-R, Rapidfire Plus
- crankset ACID MTB Hybrid Pro, 38T
- cassette Shimano Deore CS-M6100, 10-51T
- chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
- Stem CUBE Performance Stem E-MTB 35, FPI-Link
- grips ACID React Pro
- rims CUBE EX30, 32H, Disc, Tubeless Ready
- front hub CUBE Engineered By Newmen, 15mm, Boost, Centerlock
- rear hub CUBE Engineered By Newmen, 12mm, Boost, Centerlock
- tyres Schwalbe Smart Sam, Active, 2.6
- saddle ACID Sequence Pro 160
- seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- pedals ACID PP MTB
- colour smaragdgrey´n´prism
- weight 24,3 kg
- Structural Weight 140 kg
- Maximum rider weight 110 kg
Geometry
| Slack/Moderate |
S |
M |
L |
XL |
XXL |
| Seat tube |
370 |
405 |
450 |
495 |
545 |
| Top Tube Horizontal |
587 |
607 |
627 |
647 |
667 |
| Seat angle |
74.5° |
74° |
74° |
74° |
74° |
| Head tube angle |
67.5° |
67.5° |
67.5° |
67.5° |
67.5° |
| Chainstays |
456 |
470 |
470 |
470 |
470 |
| Head tube |
159 |
110 |
120 |
130 |
145 |
| Wheelbase |
1157 |
1176 |
1198 |
1218 |
1240 |
| BB-Height to Hub |
46 |
65 |
65 |
65 |
65 |
| Protrusion height – 80mm |
755 |
778 |
782 |
787 |
824 |
| Reach |
409 |
420 |
437 |
455 |
471 |
| Stack |
646 |
653 |
662 |
674 |
685 |
Ergonomics
|
S |
M |
L |
XL |
XXL |
| Length seat post |
350 |
350 |
350 |
400 |
400 |
| Diameter seatpost |
31.6 |
31.6 |
31.6 |
31.6 |
31.6 |
| Angle stem |
12° |
12° |
12° |
12° |
12° |
| Crank length |
165 |
175 |
175 |
175 |
175 |
| Diameter tire maximum |
722 |
760 |
760 |
760 |
760 |
| Width tire maximum |
66 |
66 |
66 |
66 |
66 |
| Stem length |
60 |
60 |
60 |
60 |
60 |
| Handlebar width |
740 |
740 |
740 |
740 |
740 |
| Stroke seatpost |
100 |
100 |
130 |
130 |
130 |
