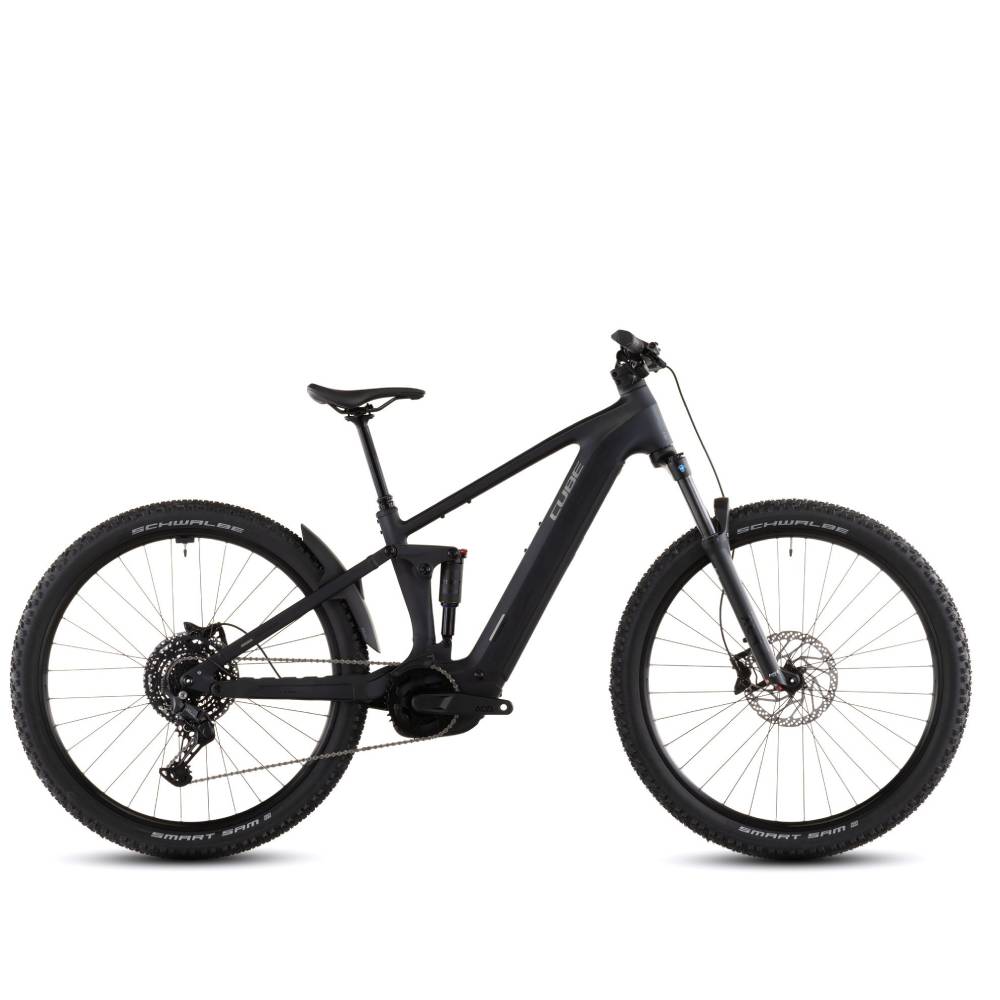

Cube Stereo Hybrid ONE22 Pro 800 night´n´chrome – 2026
- frame Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
- size Size Split: 27.5: S // 29: M L XL

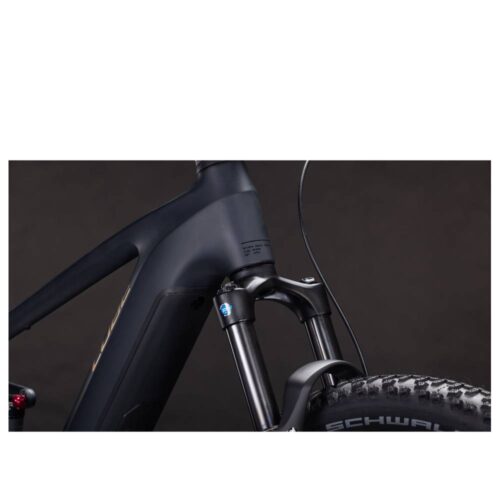

- Suspension fork SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm
- drive unit Bosch Drive Unit Performance Line CX max. 100Nm, (BDU38) Smart System
- Remote Bosch Purion 200 with Integrated Display
- battery Bosch PowerTube 800wh
- charger Bosch 2A

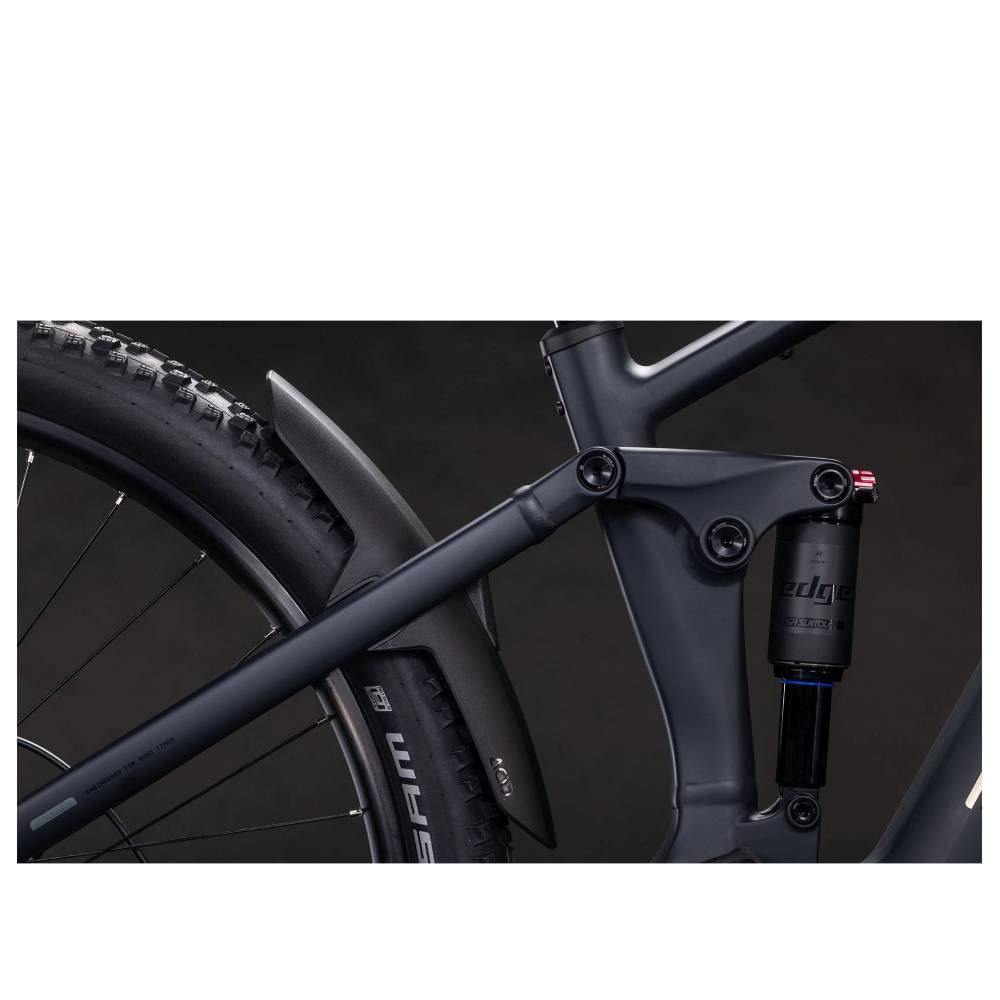

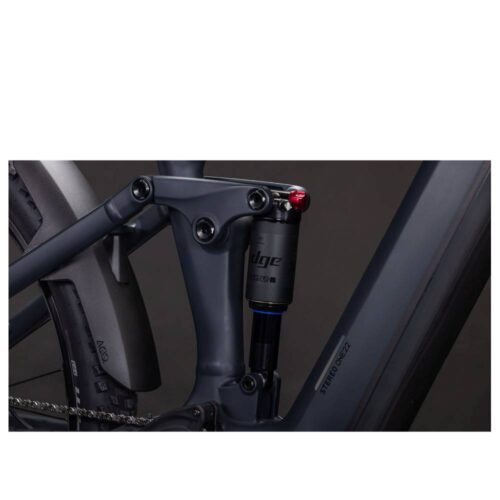

- shock SR Suntour EdgeX R 185×52,5mm, Rebound Adjust, Trunnion Mount
- shock hardware Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
- brake system Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
- rear derailleur Shimano Cues RD-U6000-GS, 10-Speed
- shifters Shimano Cues SL-U6000, Rapidfire-Plus
- crankset ACID MTB Hybrid Pro, 38T
- cassette Shimano Cues CS-LG300, 11-48T
- chain KMC eGlide
- chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
- headset ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
- Stem CUBE Performance Stem E-MTB 35, FPI-Link
- handlebar CUBE Rise Trail Bar 35
- grips ACID Hybrid Perform
- rims ACID Pro30, 32/32 Spokes, Disc, 15x110mm/12x148mm, Tubeless Ready
- tyres Schwalbe Smart Sam, Active, 2.6
- saddle ACID Venec EMTB Plus 145
- seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- pedals ACID PP MTB
- colour night´n´chrome
- weight 26,7 kg
- Maximum rider weight 120 kg
- Structural Weight 150 kg
Geometry
|
S |
M |
L |
XL |
| Seat tube |
370 |
405 |
420 |
480 |
| Top Tube Horizontal |
570 |
600 |
630 |
660 |
| Seat angle |
76° |
76° |
76° |
76° |
| Head tube angle |
66.5° |
66.5° |
66.5° |
66.5° |
| Chainstays |
455 |
488 |
488 |
488 |
| Head tube |
163 |
132 |
142 |
157 |
| Wheelbase |
1186 |
1240 |
1271 |
1303 |
| BB-Height to Hub |
-23 |
-43 |
-43 |
-43 |
| Protrusion height – 80mm |
764 |
786 |
784 |
794 |
| Reach |
417 |
444 |
471 |
496 |
| Stack |
638 |
647 |
656 |
670 |
Ergonomics
|
S |
M |
L |
XL |
| Length seat post |
371 |
429 |
472 |
472 |
| Diameter seatpost |
31.6 |
31.6 |
31.6 |
31.6 |
| Angle stem |
12° |
12° |
12° |
12° |
| Crank length |
170 |
170 |
170 |
170 |
| Diameter tire maximum |
722 |
760 |
760 |
760 |
| Width tire maximum |
67 |
67 |
67 |
67 |
| Stem length |
50 |
50 |
50 |
50 |
| Handlebar width |
760 |
760 |
760 |
760 |
| Stroke seatpost |
120 |
150 |
170 |
170 |
| Rear suspension travel |
120 |
120 |
120 |
120 |
