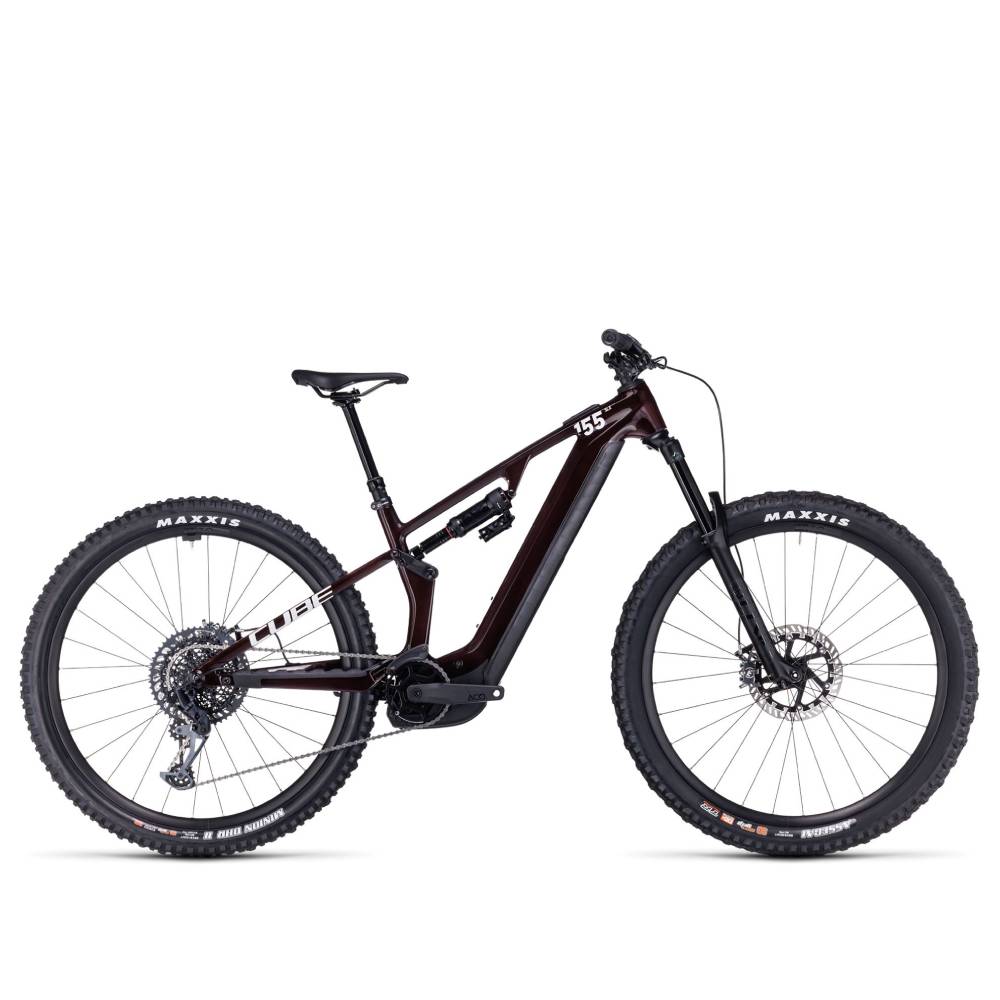

Cube Stereo Hybrid ONE55 C:68X SLX 750 29″ Liquidred ‘n’ Carbon – 2025
Product details
- frame C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
- size 29: M (18″), L (20″), XL (22″)
- drive unit Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
- Remote Bosch System Control, incl. Mini Remote
- battery Bosch PowerTube 750
- charger Bosch 4A
- Suspension fork RockShox Lyrik Select+ Charger 2 RC DebonAir, Tapered, 15x110mm, eMTB Approved, 160mm

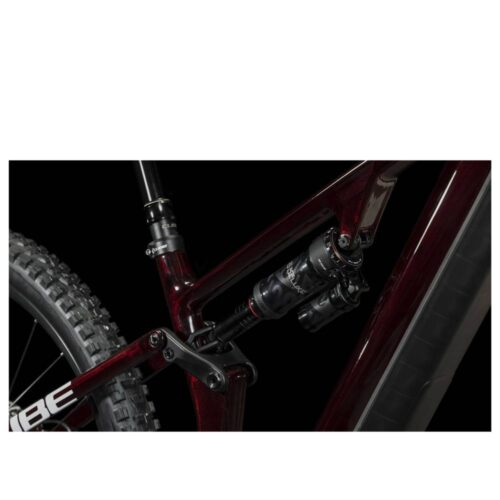

- shock RockShox Super Deluxe Select+ DebonAir, 230x60mm
- shock hardware Front: 30x8mm, Rear: DU-Bushing 12,7mm
- brake system Magura MT7, Hydr. Disc Brake (203/203)

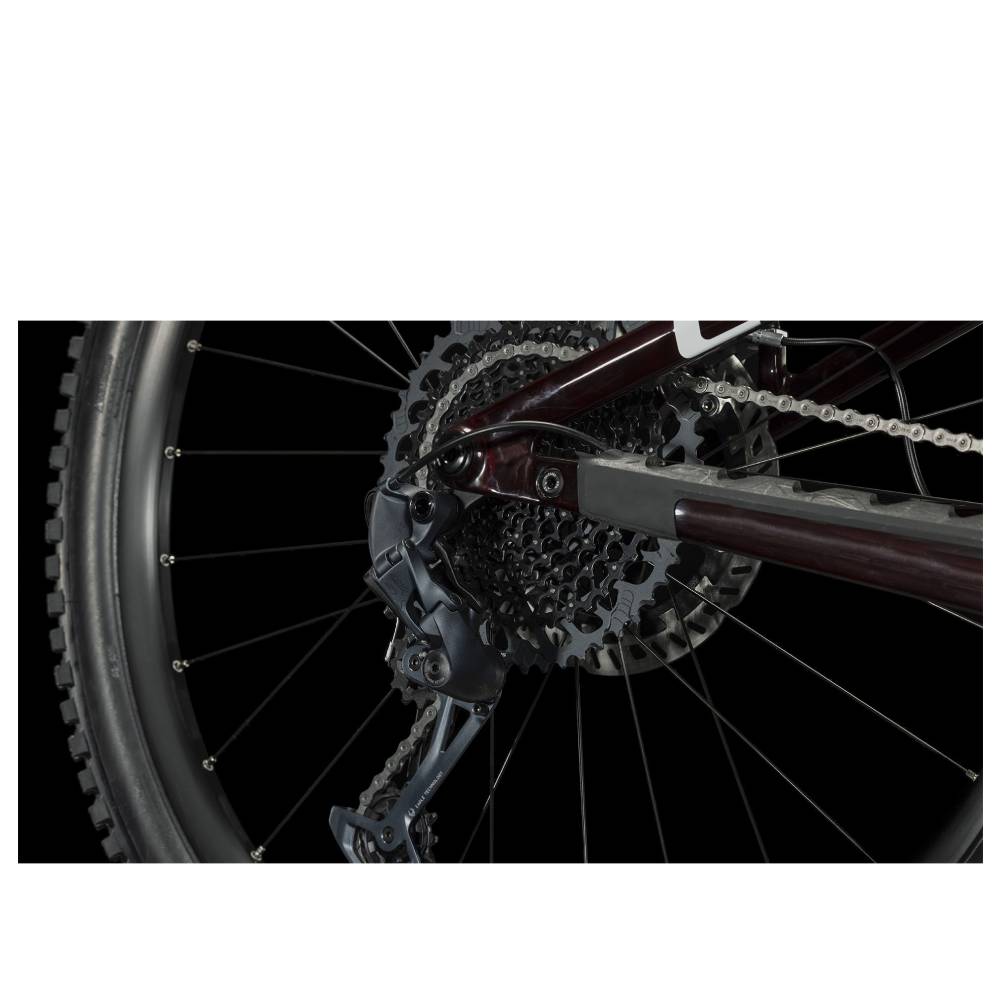

- rear derailleur Sram GX Eagle™, 12-Speed
- shifters Sram GX Eagle™ Trigger, Single Click
- crankset ACID E-Crank, 34T, 165mm
- cassette Sram XG-1275 Eagle™, 10-52T
- chain Sram NX Eagle™
- chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
- headset ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
- Stem Newmen Evolution SL 318.4, 31.8mm
- handlebar Newmen Evolution SL 318.25, 780mm
- grips ACID Disrupt, Soft Compound
- wheelset Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
- front tyre Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
- rear tyre Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
- saddle Natural Fit Venec
- seat post CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- seat clamp CUBE Screwlock, 34.9mm
- lock Abus Art.Nr. 64293
- colour liquidred´n´carbon
- weight 22,6 kg
- Structural Weight 135 kg
- Maximum rider weight 110 kg
- Bike Weight and Rider Weight 135 kg
Geometry
| Slack/Moderate |
M |
L |
XL |
| Seat tube |
405 |
420 |
470 |
| Top Tube Horizontal |
599 / 601 |
626 / 629 |
657 / 659 |
| Seat angle |
75.7° / 75.5° |
75.7° / 75.5° |
75.7° / 75.5° |
| Head tube angle |
64.4° / 65° |
64.4° / 65° |
64.4° / 65° |
| Chainstays |
454 |
454 |
454 |
| Head tube |
105 |
115 |
135 |
| Wheelbase |
1234 / 1226 |
1263 / 1255 |
1295 / 1287 |
| BB-Height to Hub |
32 / 30 |
32 / 30 |
32 / 30 |
| Protrusion height – 80mm |
760 / 764 |
758 / 762 |
760 / 764 |
| Reach |
449 / 447 |
474 / 472 |
497 / 495 |
| Stack |
624 / 629 |
633 / 635 |
651 / 653 |
Ergonomics
|
M |
L |
XL |
| Length seat post |
445 |
485 |
485 |
| Diameter seatpost |
31.6 |
31.6 |
31.6 |
| Angle stem |
6° |
6° |
6° |
| Crank length |
165 |
165 |
165 |
| Diameter tire maximum |
755 |
755 |
755 |
| Width tire maximum |
66 |
66 |
66 |
| Stem length |
40 |
40 |
40 |
| Handlebar width |
780 |
780 |
780 |
| Stroke seatpost |
150 |
170 |
170 |
| Rear suspension travel |
150 |
150 |
150 |
