- headset ACROS AZF-1030, Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
- Maximum rider weight 110 kg

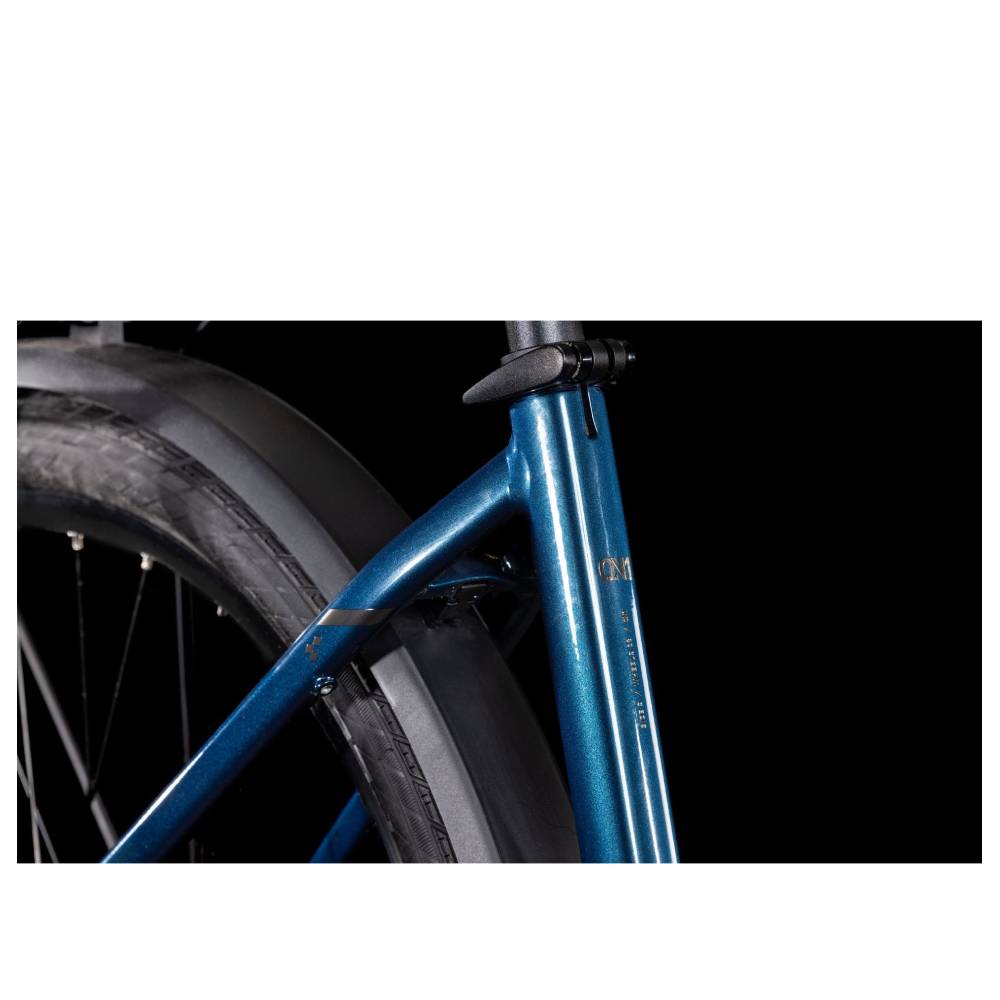

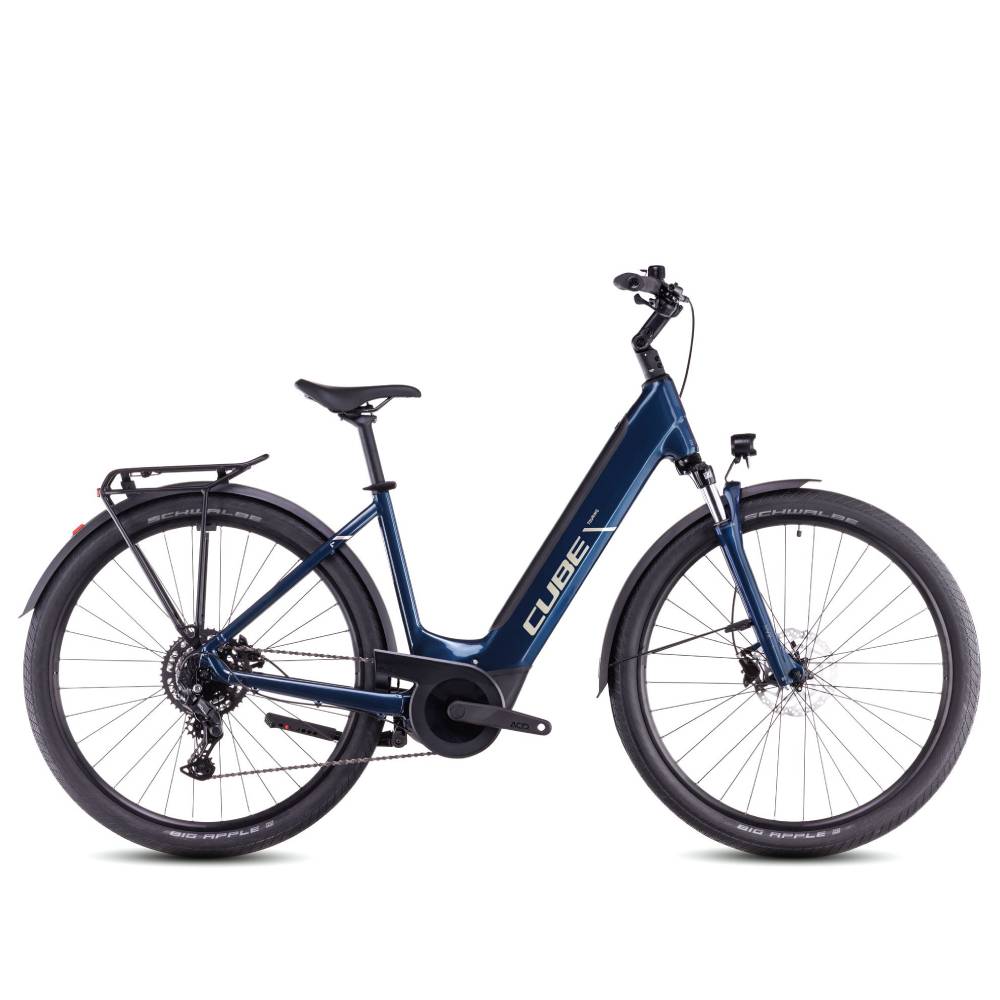

- frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Semi Integrated Carrier
- size Easy Entry: 45cm, 50cm, 54cm, 58cm
- Suspension fork SR Suntour NVX30 Coil, 63mm
- drive unit Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
- Remote Bosch Purion 200 w/ Integrated Display

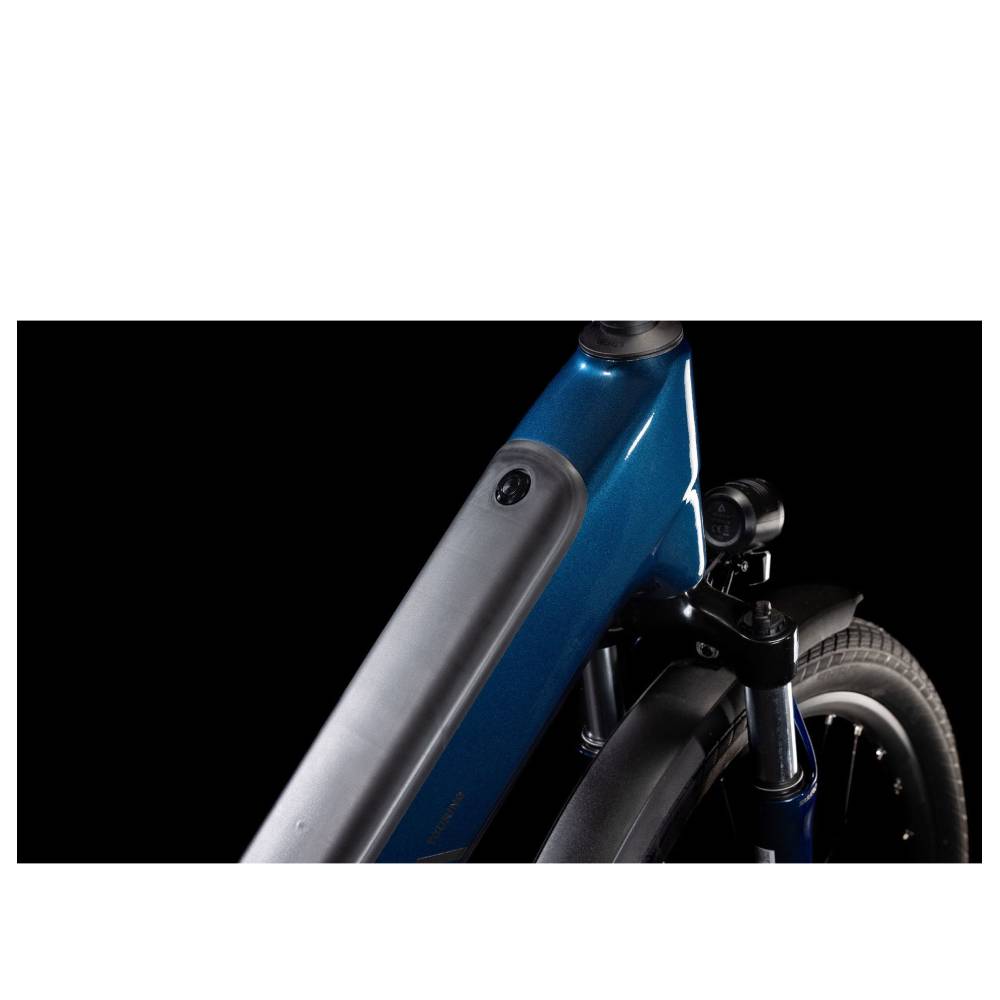

- battery Bosch PowerTube 500
- charger Bosch 2A
- brake system Shimano BR-MT200, Hydr. Disc Brake (180/180)
- rear derailleur Shimano Cues RD-U4000-GS, 9-Speed
- shifters Shimano Cues SL-U4010, Rapidfire-Plus
- crankset ACID Trekking Hybrid, 40T
- cassette Shimano Cues CS-LG300, 11-46T
- chain KMC eGlide

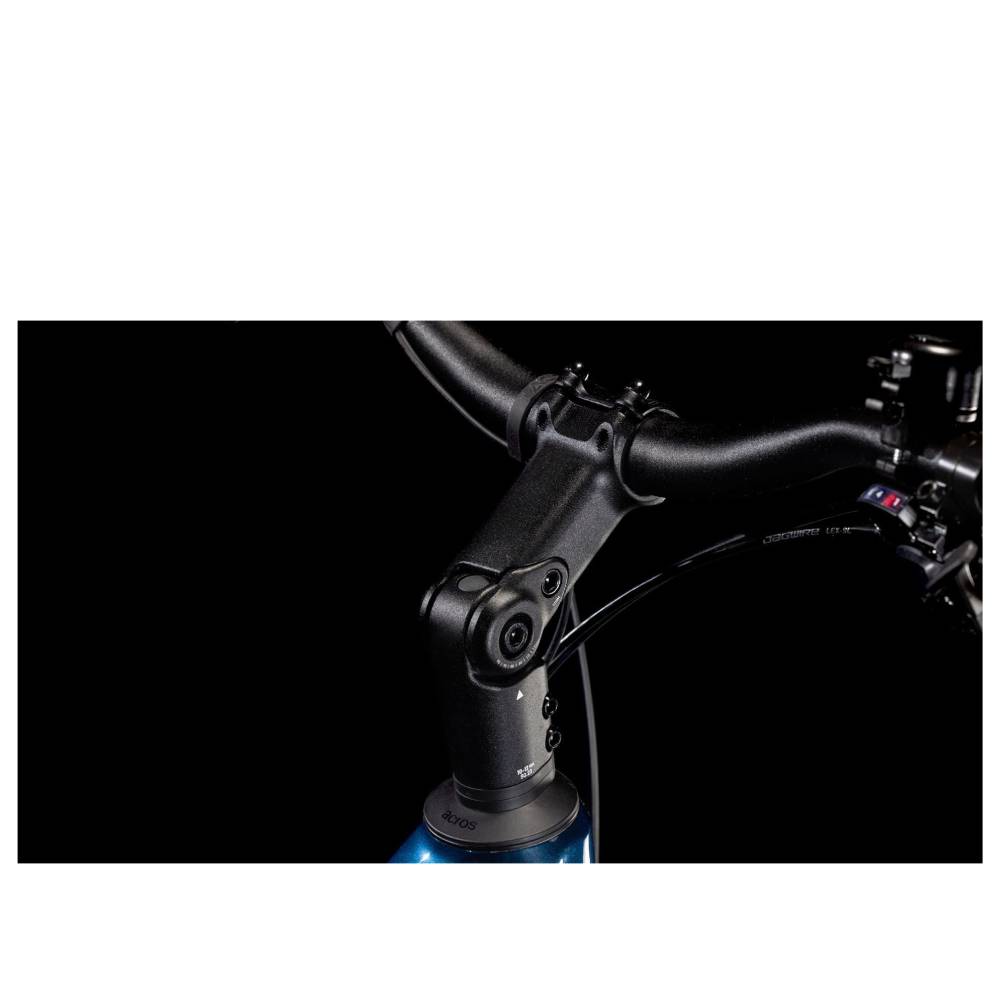

- Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
- handlebar CUBE Comfort Trail Bar, 700mm
- grips ACID Travel Comfort
- rims CUBE EX25, 32H, Disc, Tubeless Ready
- front hub Shimano HB-QC300, QR, Centerlock
- rear hub Shimano FH-QC300-HM, QR, Centerlock
- tyres Schwalbe Big Apple, Active, 55-622
- saddle ACID Sequence Pro Plus
- seat post CUBE Performance Post, 30.9mm
- seat clamp CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm
- pedals ACID PP MTB

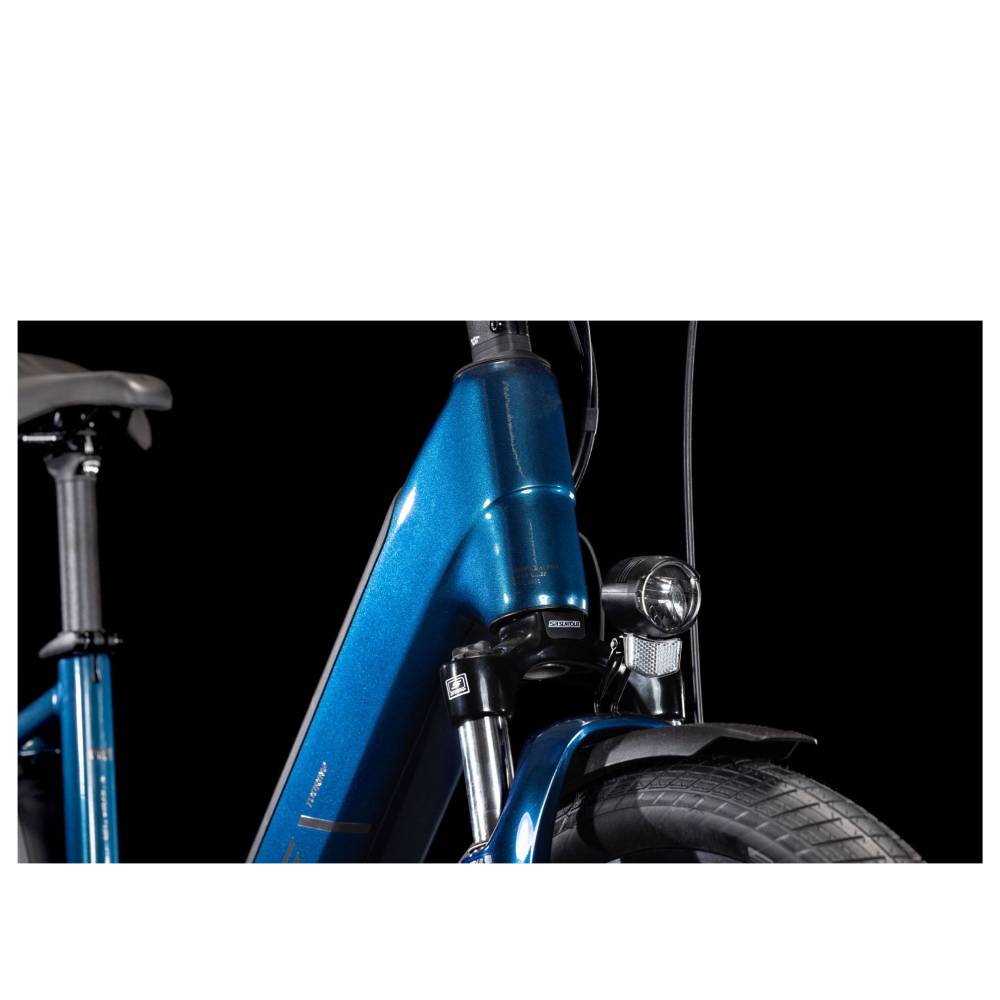

- front light ACID Front Light PRO-E 60, 12V, DC
- rear light ACID Mudguard Rear Light PRO-E, 12V, DC
- kickstand ACID FM Pure Kickstand
- mudguards ACID 65 BB-Mount
- bell Easy Bell

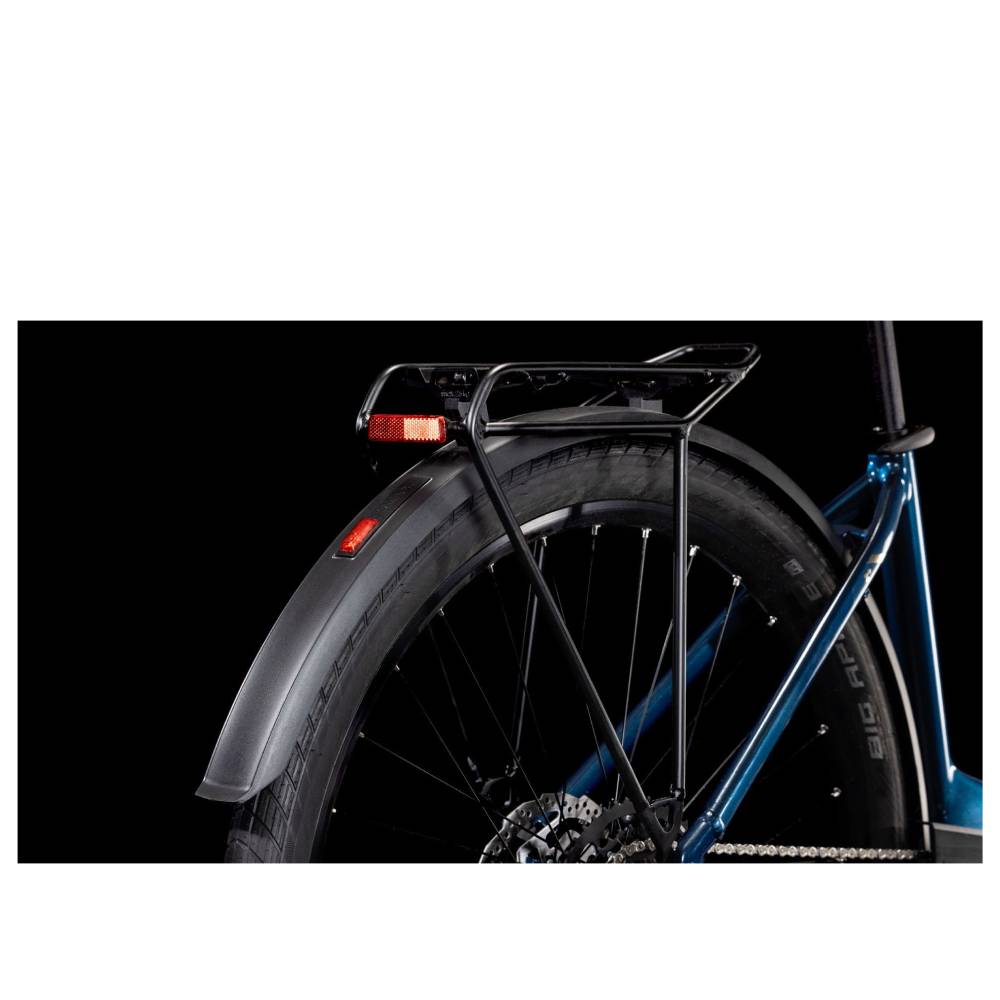

- carrier ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
- lock Abus Art.Nr. 64293
- colour deepsea´n´chrome
- weight 26,6 kg
- Structural Weight 140 kg
Geometry
| Slack/Moderate |
46 cm |
50 cm |
54 cm |
58 cm |
| Seat tube |
440 |
480 |
520 |
560 |
| Top Tube Horizontal |
590 |
600 |
610 |
620 |
| Seat angle |
73° |
73° |
73° |
73° |
| Head tube angle |
68.2° |
68.7° |
69.2° |
69.5° |
| Chainstays |
509 |
509 |
509 |
509 |
| Head tube |
160 |
160 |
160 |
160 |
| Wheelbase |
1171 |
1176 |
1181 |
1185 |
| BB-Height to Hub |
75 |
75 |
75 |
75 |
| Reach |
386 |
396 |
406 |
415 |
| Stack |
655 |
657 |
659 |
662 |
Ergonomics
|
46 cm |
50 cm |
54 cm |
58 cm |
| Length seat post |
350 |
350 |
350 |
350 |
| Diameter seatpost |
30.9 |
30.9 |
30.9 |
30.9 |
| Angle stem |
121° |
121° |
121° |
121° |
| Crank length |
170 |
170 |
170 |
170 |
| Diameter tire maximum |
746 |
746 |
746 |
746 |
| Width tire maximum |
56 |
56 |
56 |
56 |
| Stem length |
90 |
90 |
90 |
90 |
| Handlebar width |
700 |
700 |
700 |
700 |
