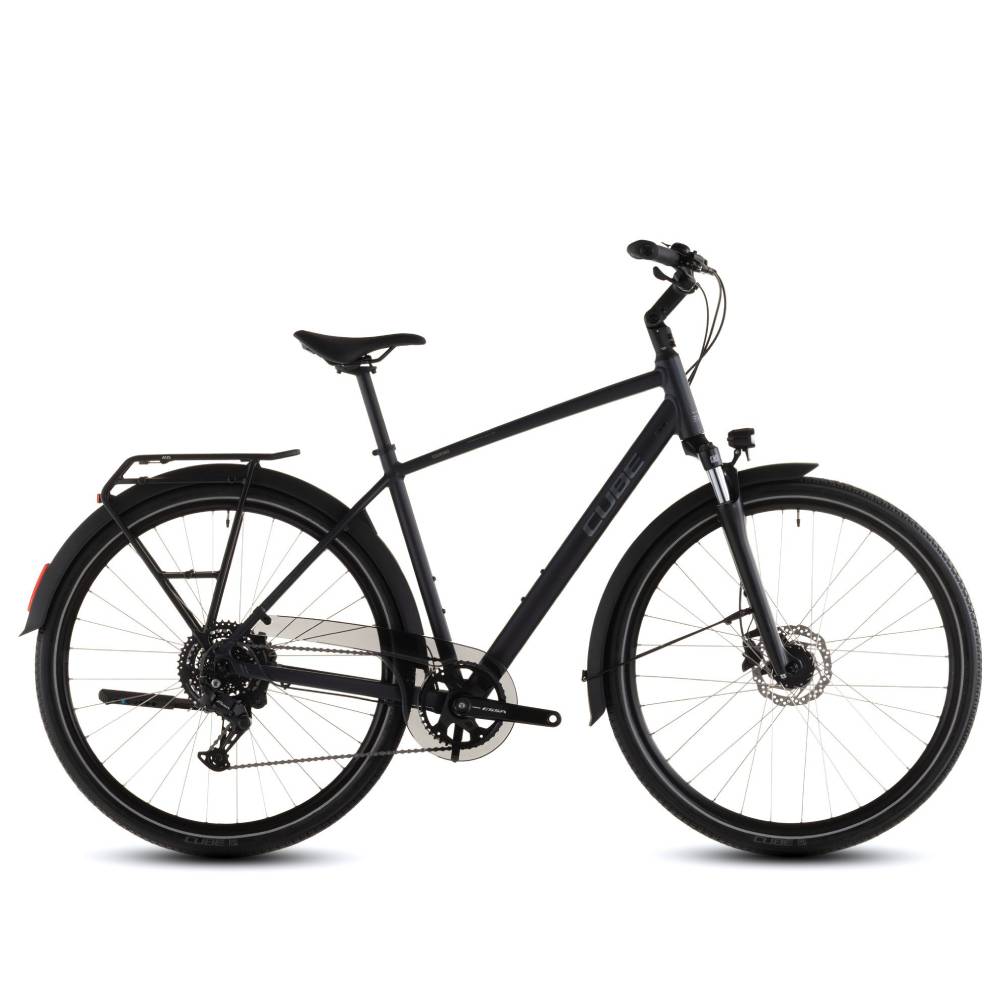

Cube Touring ONE night´n´chrome – 2026
- frame Aluminium Superlite, Trekking Comfort, Double Butted
- handlebar CUBE Comfort Trail Bar, 680mm
- size 46cm, 50cm, 54cm, 58cm, 62cm
- Suspension fork SR Suntour NEX, 63mm
- brake system Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
- rear derailleur Shimano Essa RD-U2000-GS, 8-Speed
- shifters Shimano SL-M315, Rapidfire-Plus
- crankset Shimano Essa FC-U2000-1, 40T
- bottom bracket Thun Paso-ML, 68mm, BSA
- cassette Shimano CS-HG400, 11-45T
- chain KMC Z51
- headset CUBE H863, 1 1/8″ , Semi-Integrated
- Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
- handlebar CUBE Comfort Trail Bar, 680mm
- grips ACID Travel Comfort
- rims ACID EX25, 32H, Disc, Tubeless Ready
- front hub Shimano DH-3D37, Hub Dynamo, QR, Centerlock
- rear hub Shimano FH-QC300-HM, QR, Centerlock
- tyres CUBE Trekking, 47-622
- saddle ACID Sequence 160
- seat post CUBE Performance Post, 27.2mm
- seat clamp CUBE Screwlock, 31.8mm
- pedals ACID PP Trekking
- front light CUBE Shiny 50
- rear light ACID Mudguard Rear Light PRO-D, SIC 2.0
- kickstand ACID FM Pure Kickstand
- mudguards ACID SIC 2.0 50
- bell Nuvo

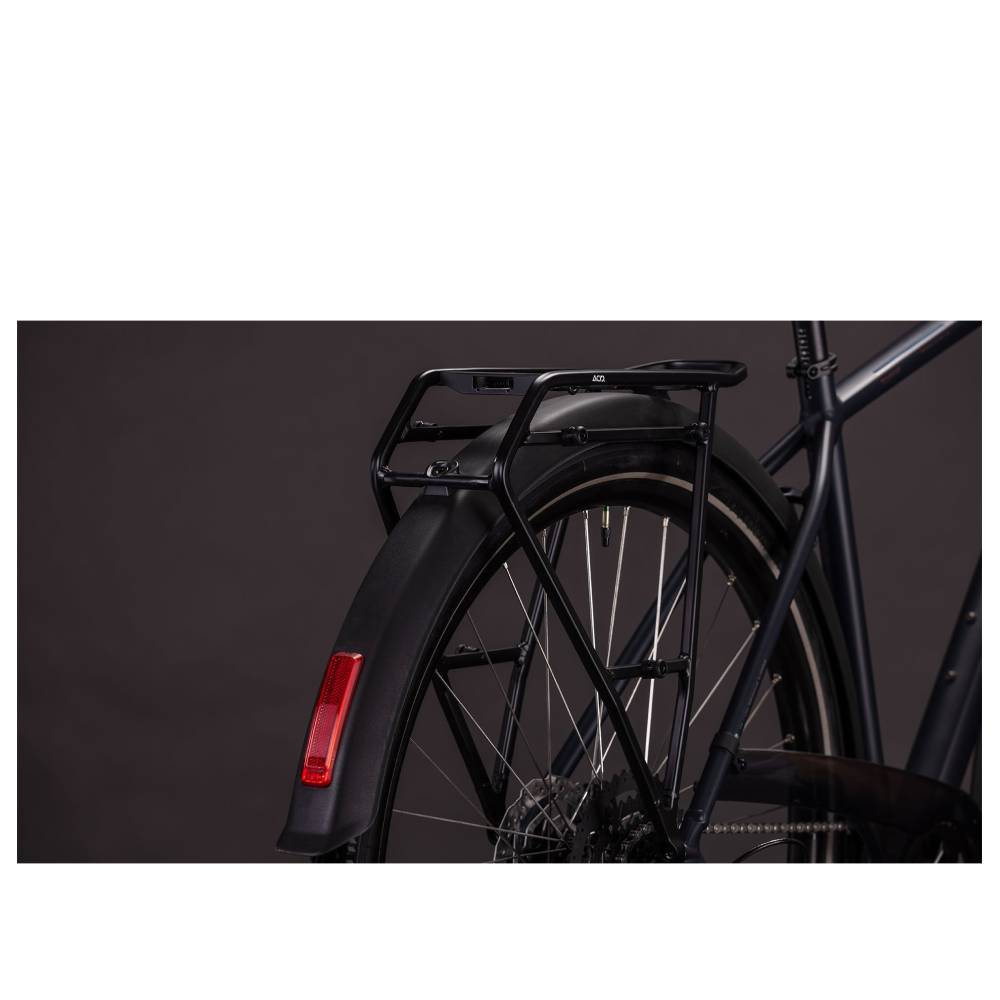

- carrier ACID SIC 2.0 RILink
- weight 18,5 kg
- Structural Weight 140 kg
- colour night´n´chrome
Geometry
|
46 cm |
50 cm |
54 cm |
58 cm |
62 cm |
| Seat tube |
420 |
460 |
510 |
560 |
600 |
| Top Tube Horizontal |
561 |
572 |
586 |
601 |
616 |
| Seat angle |
75° |
73° |
73° |
73° |
73° |
| Head tube angle |
70° |
70.5° |
71° |
71° |
71° |
| Chainstays |
455 |
455 |
455 |
455 |
455 |
| Head tube |
110 |
130 |
150 |
170 |
190 |
| Wheelbase |
1088 |
1072 |
1081 |
1097 |
1113 |
| BB-Height to Hub |
-70 |
-70 |
-70 |
-70 |
-70 |
| Protrusion height – 80mm |
748 |
787 |
826 |
864 |
894 |
| Reach |
397 |
379 |
387 |
396 |
405 |
| Stack |
610 |
631 |
652 |
671 |
690 |
Ergonomics
|
46 cm |
50 cm |
54 cm |
58 cm |
62 cm |
| Stem length |
65 |
90 |
90 |
90 |
90 |
| Handlebar width |
680 |
680 |
680 |
680 |
680 |
| Crank length |
175 |
175 |
175 |
175 |
175 |
| Length seat post |
350 |
350 |
350 |
350 |
350 |
| Diameter seatpost |
27.2 |
27.2 |
27.2 |
27.2 |
27.2 |
| Max. insertion depth seat post |
165 |
200 |
250 |
300 |
300 |
| Diameter tire maximum |
728 |
728 |
728 |
728 |
728 |
| Width tire maximum |
47 |
47 |
47 |
47 |
47 |
