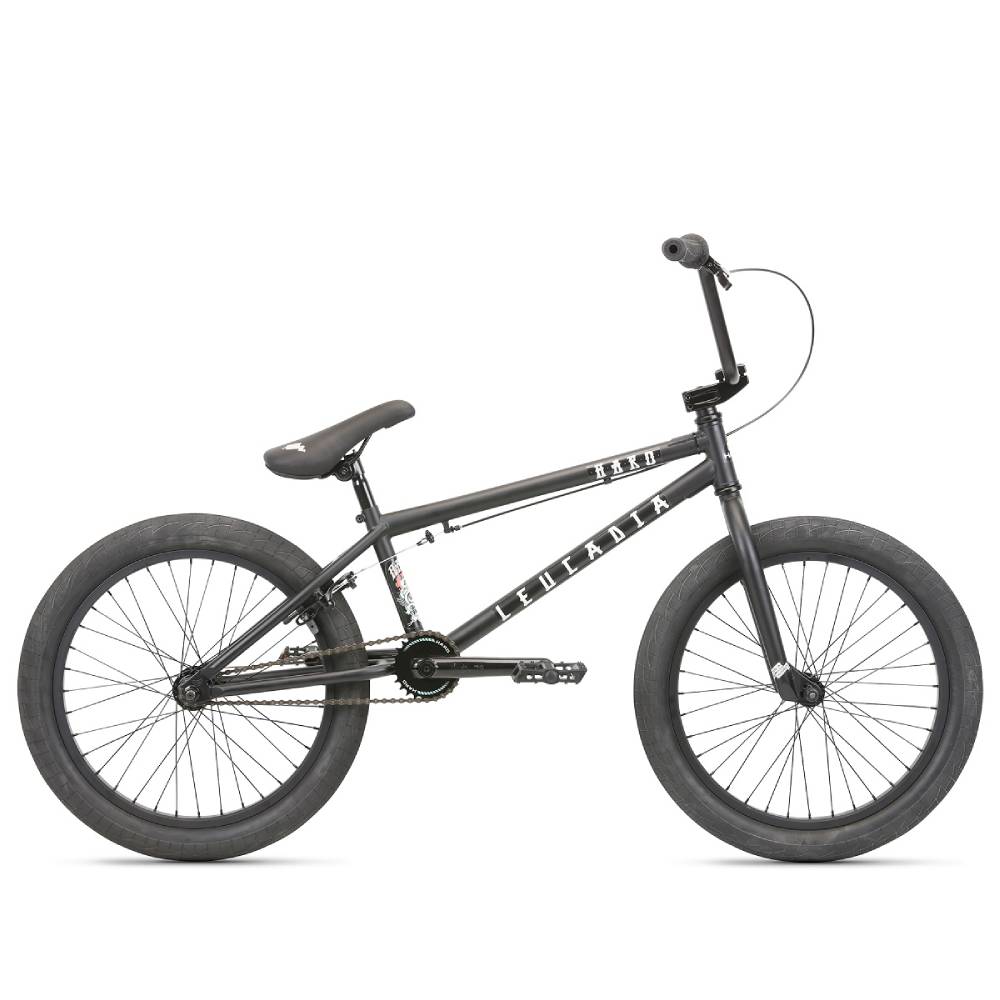

The Leucadia is our perfect bike that will inspire any rider about to get his Freestyle moves into action. Perfect bike to ride to school or hit up the local park or pump track. Comes with Haro’s own custom design Cr-Mo 3-Piece tubular cranks and sprocket, as well as the new Haro 2.4″ La Mesa tires Team grips and Topload molded stem.
FEATURES
Hi-ten frame with 18.5″ or 20.5″ top tube
Full hi-ten fork with tapered legs
Hi-ten bars 8.5″ with Haro 1978 alloy top load stem
Haro 1978 3-piece chromoly 8-spline 165mm (on 18.5″) or 170mm (on 20.5″) cranks with loose ball USA BB
25/9 gearing with sealed bearing 9T driver
Haro padded fully adjustable seat
Haro La Mesa tires 20×2.4″ front/rear
Haro Team grips
SPECIFICATIONS
FRAMESET
FRAME Full Hi-Ten Frame
FORK Full Hi-Ten 1 1/8″ Threadless w/ Tapered Legs
COLORS Black, Grey, Matte Lavender
WEIGHT 26 lbs
DRIVETRAIN
CRANKS 3-pc Cr-Mo 8 Spline 165mm / 170mm, 25T Steel Sprocket
BOTTOM BRACKET Loose Ball American BB
SPROCKET 25T Steel
GEARING 25/9
PEDALS Low-Pro Nylon w/ Cr-Mo Axle, 9/16
CHAIN KMC 410
WHEELS
TIRES Haro La Mesa 20 x 2.4″
HUBS Front: Steel Shell 36h, Loose Ball Rear: Alloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver Axle: 3/8″ Front / 14mm Rear
FRONT HUB Steel Shell 36h, Loose Ball
REAR HUB Alloy Shell Cassette, 36h, Loose Ball w/ Sealed Bearing Driver
AXLE 3/8″ Front / 14mm Rear
RIMS 20″ Alloy 36h, Single Wall
BRAKING SYSTEM
BRAKE Tektro Alloy 990 U-Brake
BRAKE LEVER Haro 78 Alloy Hinged Lever
OTHER COMPONENTS
GRIPS Haro Team Grips

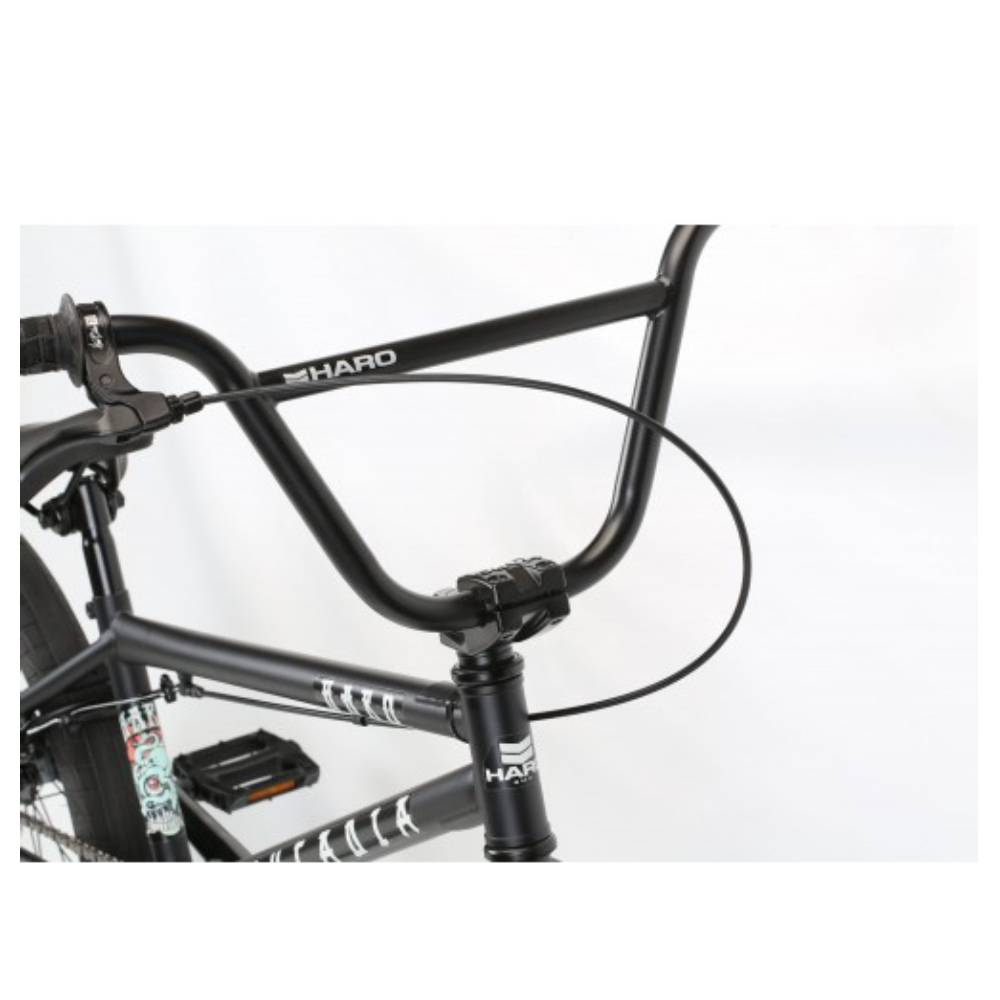

HANDLEBAR Full Hi-Ten, 7.5″ Rise / 8.25″ Rise
STEM Forged Alloy Top-Load, 50mm Ext.
HEADSET Threadless Loose Ball, 1 1/8″

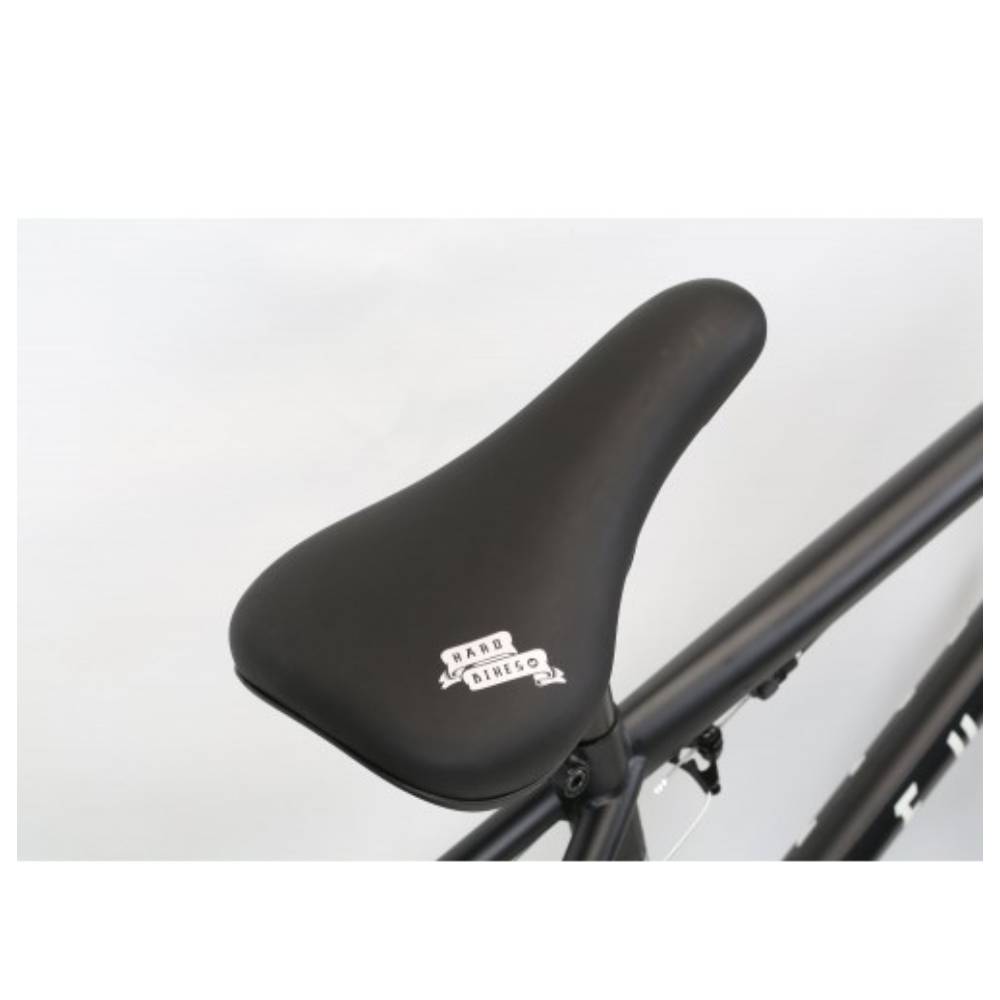

SEAT Haro Padded Adjustable
SEAT POST Steel, 25.4mm
SEAT POST CLAMP Integrated
GEOMETRY & SIZING
| SIZE |
A. HEAD ANGLE |
B. SEAT ANGLE |
C. TOP TUBE |
D. SEAT TUBE |
E. CHAINSTAY |
F. BB HEIGHT |
G. STAND OVER |
| 18.5 |
74.5° |
70° |
18.5 (470 mm) |
10.2 (260 mm) |
13.7 (349 mm) |
11.5 (293 mm) |
21.5 (546 mm) |
| 20.5 |
74.5° |
70° |
20.5 (520 mm) |
10.2 (260 mm) |
13.7 (349 mm) |
11.5 (293 mm) |
21.5 (546 mm) |
